Technical specifications
| Code | Watt | CRI | Voltage | Size | Beam | CCT | Cut-out | Notes |
|---|---|---|---|---|---|---|---|---|
| RE-MINI-3 | 7 W | 97 CRI | 9 V | L78 x W28 x D38 mm | 24° 30° | 3000, 4000 K | Ø74 mm | 700 mA |

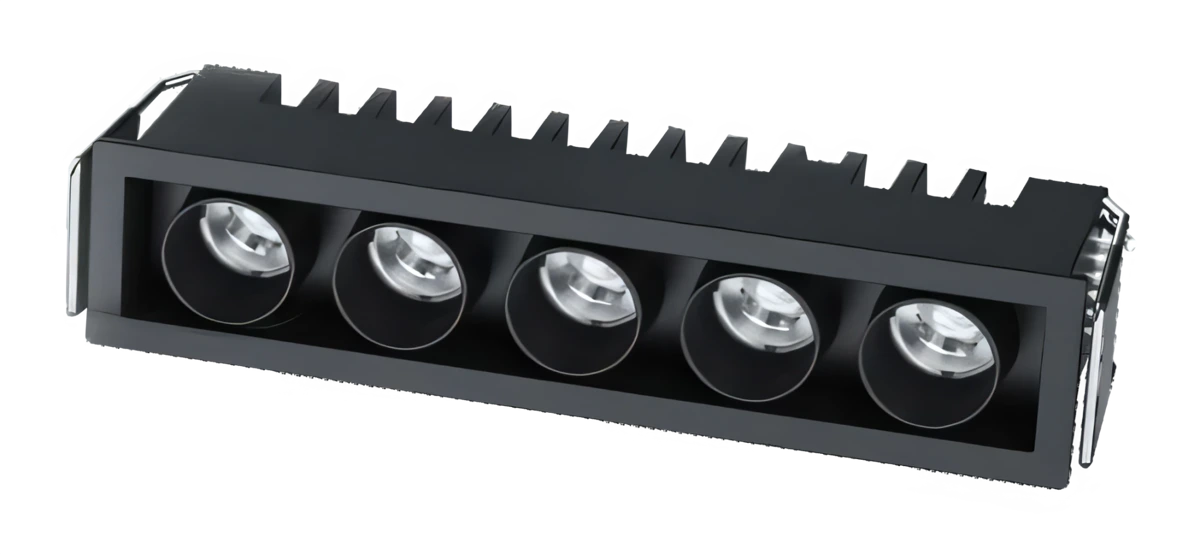

| RE-MINI-5 | 12 W | 97 CRI | 15 V | L120 x W28 x D38 mm | 24° 30° | 3000, 4000 K | Ø116 mm | 700 mA |
| RE-MINI-10 | 20 W | 97 CRI | 30 V | L230 x W28 x D38 mm | 24° 30° | 3000, 4000 K | Ø226 mm | 600 / 700 mA |
- LED source
- Citizen
- Colour temperature
- 3000, 4000 K
- Beam angles
- 24°, 30°
- Control
- On/Off, Triac
- Mounting
- Recessed
- IP rating
- IP20
Photometry
RE-MINI-10. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: estimated from catalogue data, not measured.
- Power
- 20 W
- Luminous flux
- 1,500 lm
- Efficacy
- 75 lm/W
- Peak intensity
- 7,625 cd
- Field angle (10%)
- 43.7°
- At 3 m
- 847 lx, Ø1.28 m
- Power
- 20 W
- Luminous flux
- 1,500 lm
- Efficacy
- 75 lm/W
- Peak intensity
- 4,909 cd
- Field angle (10%)
- 54.7°
- At 3 m
- 545 lx, Ø1.61 m
