Technical specifications
| Code | Watt | CRI | Voltage | Size | Beam | CCT | Cut-out | Notes |
|---|---|---|---|---|---|---|---|---|

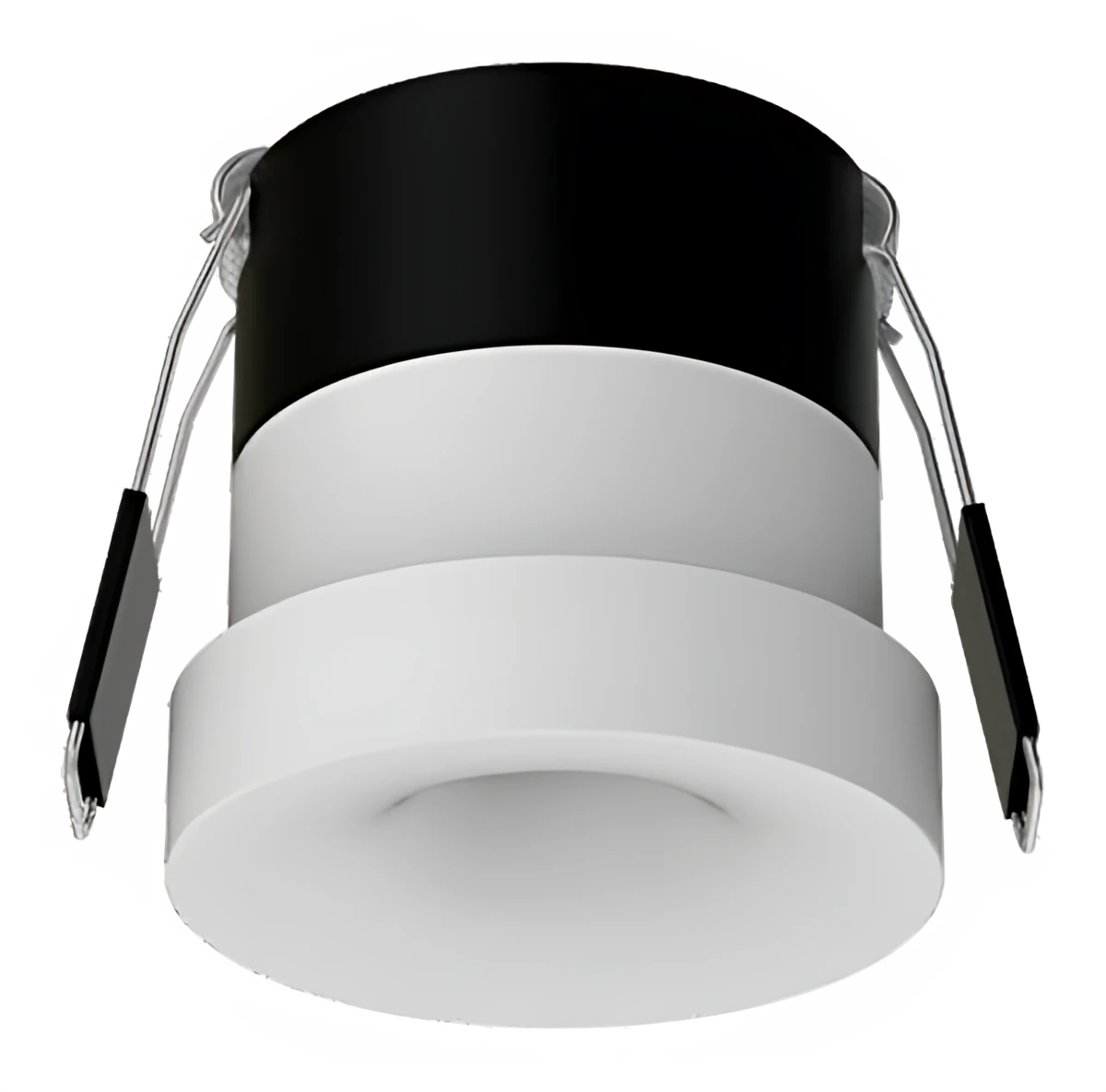

| Mars-1203 | 12 W | 97 CRI | 36 V | Ø62 × 59 mm | 24° 36° | 2700, 3000, 4000 K | Ø55 mm | 300 mA |
- LED source
- Citizen
- Colour temperature
- 2700, 3000, 4000 K
- Beam angles
- 24°, 36°
- Control
- On/Off
- Mounting
- Recessed
- IP rating
- IP44
Photometry
Mars-1203. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: estimated from catalogue data, not measured.
- Power
- 12 W
- Luminous flux
- 900 lm
- Efficacy
- 75 lm/W
- Peak intensity
- 4,575 cd
- Field angle (10%)
- 43.7°
- At 3 m
- 508 lx, Ø1.28 m
- Power
- 12 W
- Luminous flux
- 900 lm
- Efficacy
- 75 lm/W
- Peak intensity
- 2,060 cd
- Field angle (10%)
- 65.6°
- At 3 m
- 229 lx, Ø1.95 m
