Technical specifications
| Code | Watt | CRI | Voltage | Size | Beam | CCT | Cut-out | Notes |
|---|---|---|---|---|---|---|---|---|

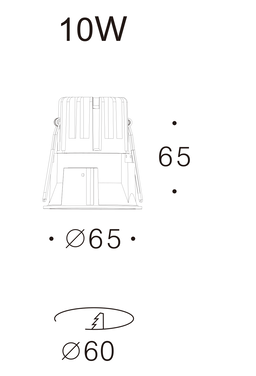

| KAI-RE1001 | 10 W | 97 CRI | 36 V | Ø65 × 65 mm | 20° 24° 60° | 3000, 4000, 5000 K | Ø60 mm | 250 mA |

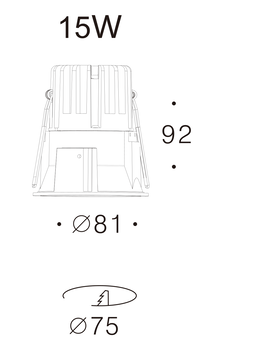

| KAI-RE1501 | 15 W | 97 CRI | 36 V | Ø81 × 92 mm | 15° 25° 38° 60° | 3000, 4000, 5000 K | Ø75 mm | 350 mA |
| KAI-RE1001-LENSLens | 10 W | 97 CRI | 36 V | Ø65 × 65 mm | 20° 24° 60° | 3000, 4000, 5000 K | Ø60 mm | 250 mA |
| KAI-RE1501-LENSLens | 15 W | 97 CRI | 36 V | Ø81 × 92 mm | 15° 25° 38° 60° | 3000, 4000, 5000 K | Ø75 mm | 350 mA |
- LED source
- Citizen
- Colour temperature
- 3000, 4000, 5000 K
- Beam angles
- 15°, 20°, 24°, 25°, 38°, 60°
- Control
- On/Off, Triac
- Mounting
- Recessed
- IP rating
- IP20
Photometry
KAI-RE1501. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: estimated from catalogue data, not measured.
- Power
- 15 W
- Luminous flux
- 1,125 lm
- Efficacy
- 75 lm/W
- Peak intensity
- 14,546 cd
- Field angle (10%)
- 27.3°
- At 3 m
- 1,616 lx, Ø0.79 m
- Power
- 15 W
- Luminous flux
- 1,125 lm
- Efficacy
- 75 lm/W
- Peak intensity
- 5,275 cd
- Field angle (10%)
- 45.6°
- At 3 m
- 586 lx, Ø1.33 m
- Power
- 15 W
- Luminous flux
- 1,125 lm
- Efficacy
- 75 lm/W
- Peak intensity
- 2,317 cd
- Field angle (10%)
- 69.3°
- At 3 m
- 257 lx, Ø2.07 m
- Power
- 15 W
- Luminous flux
- 1,125 lm
- Efficacy
- 75 lm/W
- Peak intensity
- 968 cd
- Field angle (10%)
- 109.4°
- At 3 m
- 108 lx, Ø3.46 m
