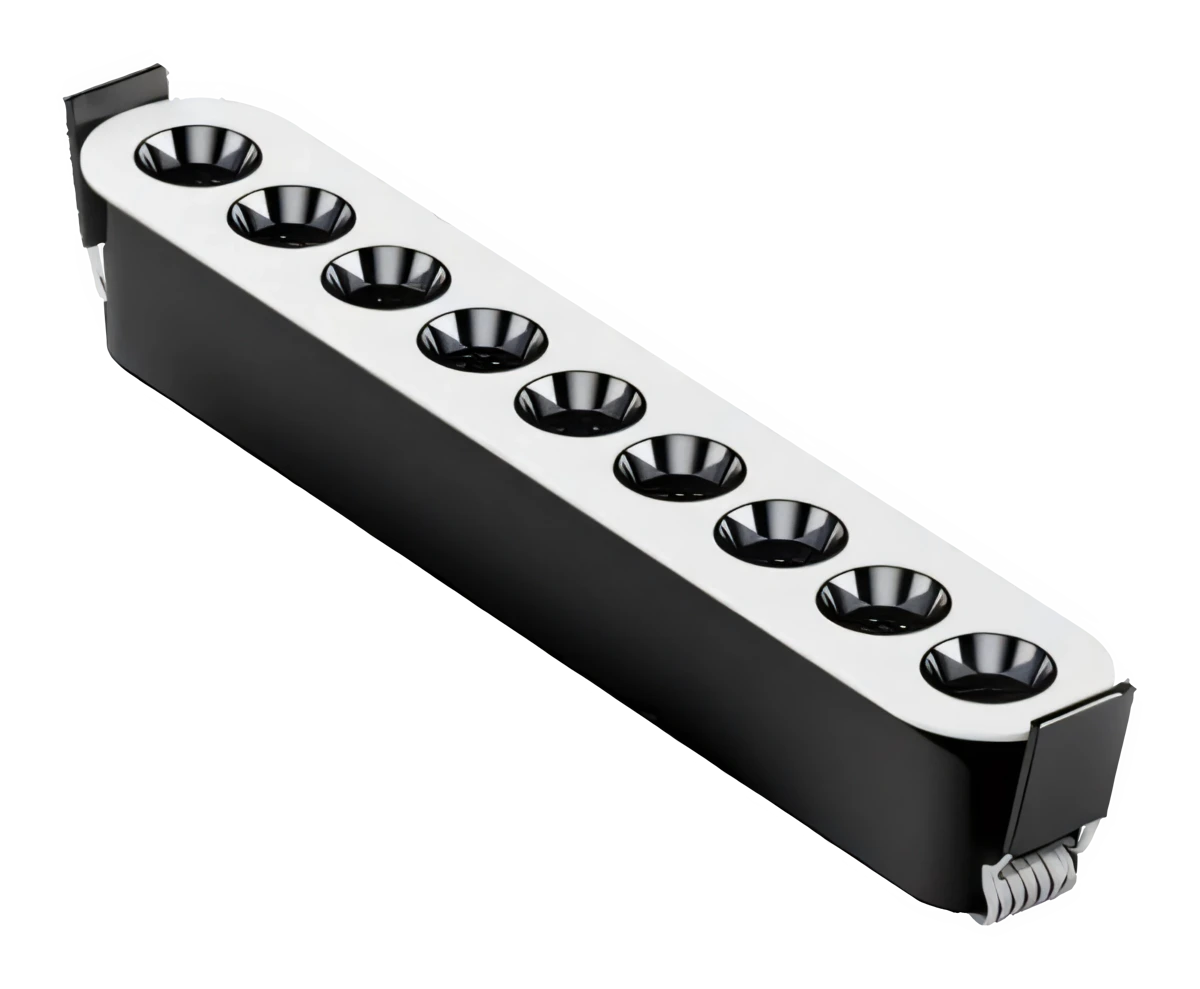

Eric

Name: Eric
Brand: DiaNoche
SKU: RE-ERIC-0801-3

Linear luminaire

Linear luminaire. 5, 10, 15 or 20 W. 24° or 36° beam. 2700, 3000, 4000, 5500 K. 97 CRI.

Available finishes

Black

4 models

RE-ERIC-0801-33 apertures, 5 W
RE-ERIC-1501-66 apertures, 10 W
RE-ERIC-2101-99 apertures, 15 W
RE-ERIC-2701-1212 apertures, 20 W

Enquire about this product

DatasheetPDF, 487 KB

Photometric filesIES and LDT, 8 versions, estimated

RE-ERIC-0801-35 W, 24°IES LDT

RE-ERIC-0801-35 W, 36°IES LDT

RE-ERIC-1501-610 W, 24°IES LDT

RE-ERIC-1501-610 W, 36°IES LDT

RE-ERIC-2101-915 W, 24°IES LDT

RE-ERIC-2101-915 W, 36°IES LDT

RE-ERIC-2701-1220 W, 24°IES LDT

RE-ERIC-2701-1220 W, 36°IES LDT

Estimated files are derived from the rated wattage and the catalogue beam angle, not from laboratory measurement. Use them for early layouts and confirm final calculations with measured data.

Technical specifications

Code	Watt	CRI	Voltage	Size	Beam	CCT	Cut-out
RE-ERIC-0801-33 apertures	5 W	97 CRI	9 V	L69 x W27 x H30.5 mm	24° 36°	2700, 3000, 4000, 5500 K	Ø64 mm
RE-ERIC-1501-66 apertures	10 W	97 CRI	17 V	L127 x W27 x H30.5 mm	24° 36°	2700, 3000, 4000, 5500 K	Ø122 mm
RE-ERIC-2101-99 apertures	15 W	97 CRI	26 V	L184 x W27 x H30.5 mm	24° 36°	2700, 3000, 4000, 5500 K	Ø180 mm
RE-ERIC-2701-1212 apertures	20 W	97 CRI	34 V	L243 x W27 x H30.5 mm	24° 36°	2700, 3000, 4000, 5500 K	Ø238 mm

LED source: Citizen
Colour temperature: 2700, 3000, 4000, 5500 K
Beam angles: 24°, 36°
Control: On/Off, Triac
Mounting: Recessed
IP rating: IP20
Note: 500 mA

Photometry

RE-ERIC-2701-12. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: estimated from catalogue data, not measured.
