Technical specifications
| Code | Watt | CRI | Voltage | Size | Beam | CCT | Cut-out |
|---|---|---|---|---|---|---|---|

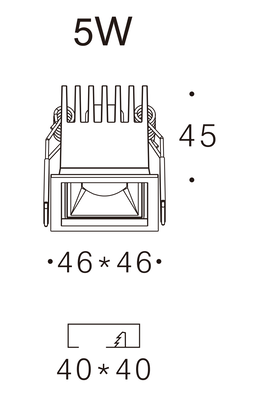

| Egbert-1 | 5 W | 97 CRI | 12 V | 46 × 46 x H45 mm | 20° 40° 60° | 2700, 3000, 4000 K | Ø40 mm |

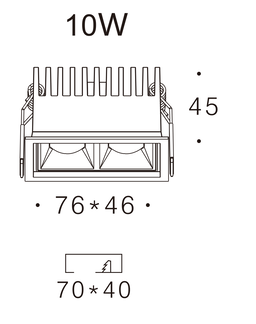

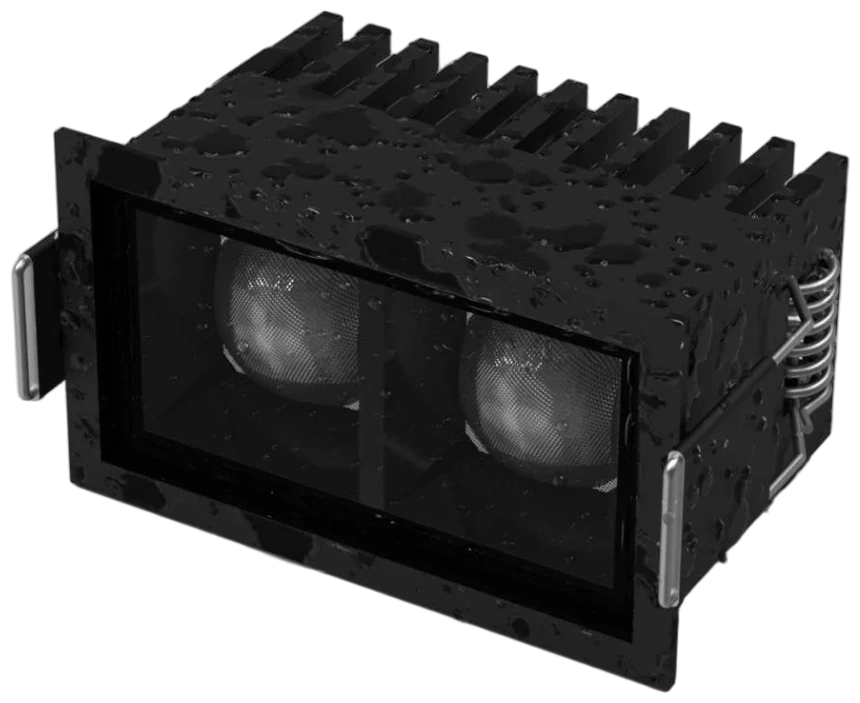

| Egbert-2 | 10 W | 97 CRI | 24 V | 76 × 46 x H45 mm | 20° 40° 60° | 2700, 3000, 4000 K | Ø70 mm |
- LED source
- Citizen
- Colour temperature
- 2700, 3000, 4000 K
- Beam angles
- 20°, 40°, 60°
- Control
- On/Off, Triac
- Mounting
- Recessed
- IP rating
- IP44
- Note
- 350 mA
Photometry
Egbert-2. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: estimated from catalogue data, not measured.
- Power
- 10 W
- Luminous flux
- 750 lm
- Efficacy
- 75 lm/W
- Peak intensity
- 5,472 cd
- Field angle (10%)
- 36.5°
- At 3 m
- 608 lx, Ø1.06 m
- Power
- 10 W
- Luminous flux
- 750 lm
- Efficacy
- 75 lm/W
- Peak intensity
- 1,398 cd
- Field angle (10%)
- 72.9°
- At 3 m
- 155 lx, Ø2.18 m
- Power
- 10 W
- Luminous flux
- 750 lm
- Efficacy
- 75 lm/W
- Peak intensity
- 645 cd
- Field angle (10%)
- 109.4°
- At 3 m
- 72 lx, Ø3.46 m
