Technical specifications
| Code | Watt | CRI | Voltage | Size | Beam | CCT | Cut-out | Notes |
|---|---|---|---|---|---|---|---|---|

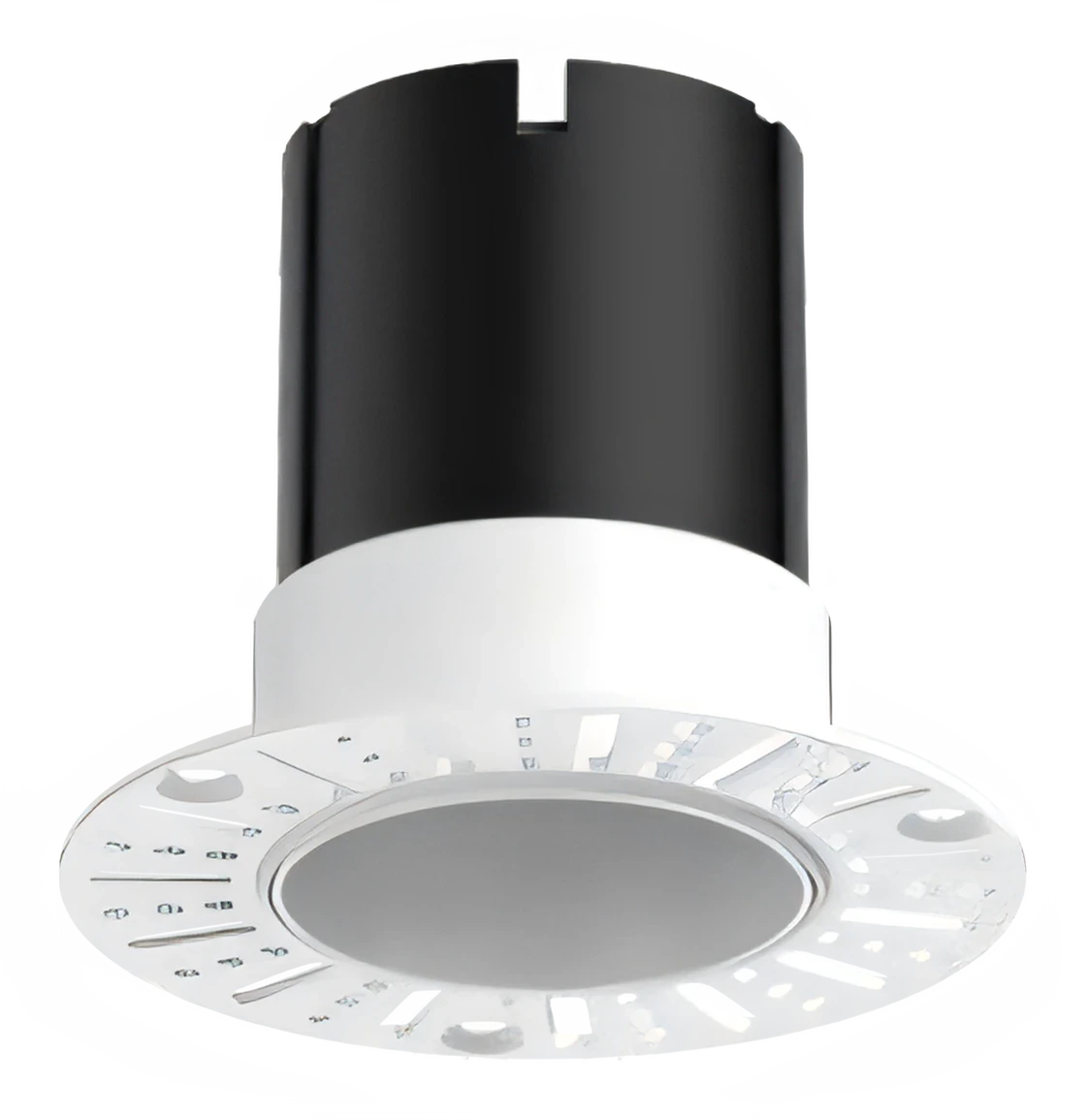

| DEEP-TL-1001Tl-Deep (trimless) | 10 W | 97 CRI | 36 V | Ø93 × 77 mm | 15° 24° 36° 50° | 2700, 3000, 4000 K | Ø60 mm | 200 mA |

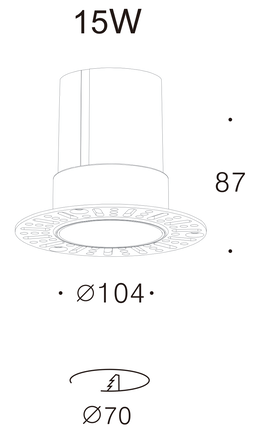

| DEEP-TL-1501Tl-Deep (trimless) | 15 W | 97 CRI | 36 V | Ø104 × 87 mm | 15° 24° 36° 50° | 2700, 3000, 4000 K | Ø70 mm | 350 mA |
- LED source
- Citizen
- Colour temperature
- 2700, 3000, 4000 K
- Beam angles
- 15°, 24°, 36°, 50°
- Control
- On/Off, Triac
- Mounting
- Recessed
- IP rating
- IP20/44
Photometry
DEEP-TL-1501. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: estimated from catalogue data, not measured.
- Power
- 15 W
- Luminous flux
- 1,125 lm
- Efficacy
- 75 lm/W
- Peak intensity
- 14,546 cd
- Field angle (10%)
- 27.3°
- At 3 m
- 1,616 lx, Ø0.79 m
- Power
- 15 W
- Luminous flux
- 1,125 lm
- Efficacy
- 75 lm/W
- Peak intensity
- 5,719 cd
- Field angle (10%)
- 43.7°
- At 3 m
- 635 lx, Ø1.28 m
- Power
- 15 W
- Luminous flux
- 1,125 lm
- Efficacy
- 75 lm/W
- Peak intensity
- 2,575 cd
- Field angle (10%)
- 65.6°
- At 3 m
- 286 lx, Ø1.95 m
- Power
- 15 W
- Luminous flux
- 1,125 lm
- Efficacy
- 75 lm/W
- Peak intensity
- 1,365 cd
- Field angle (10%)
- 91.1°
- At 3 m
- 152 lx, Ø2.80 m
