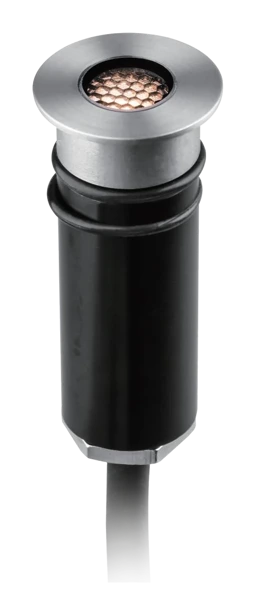

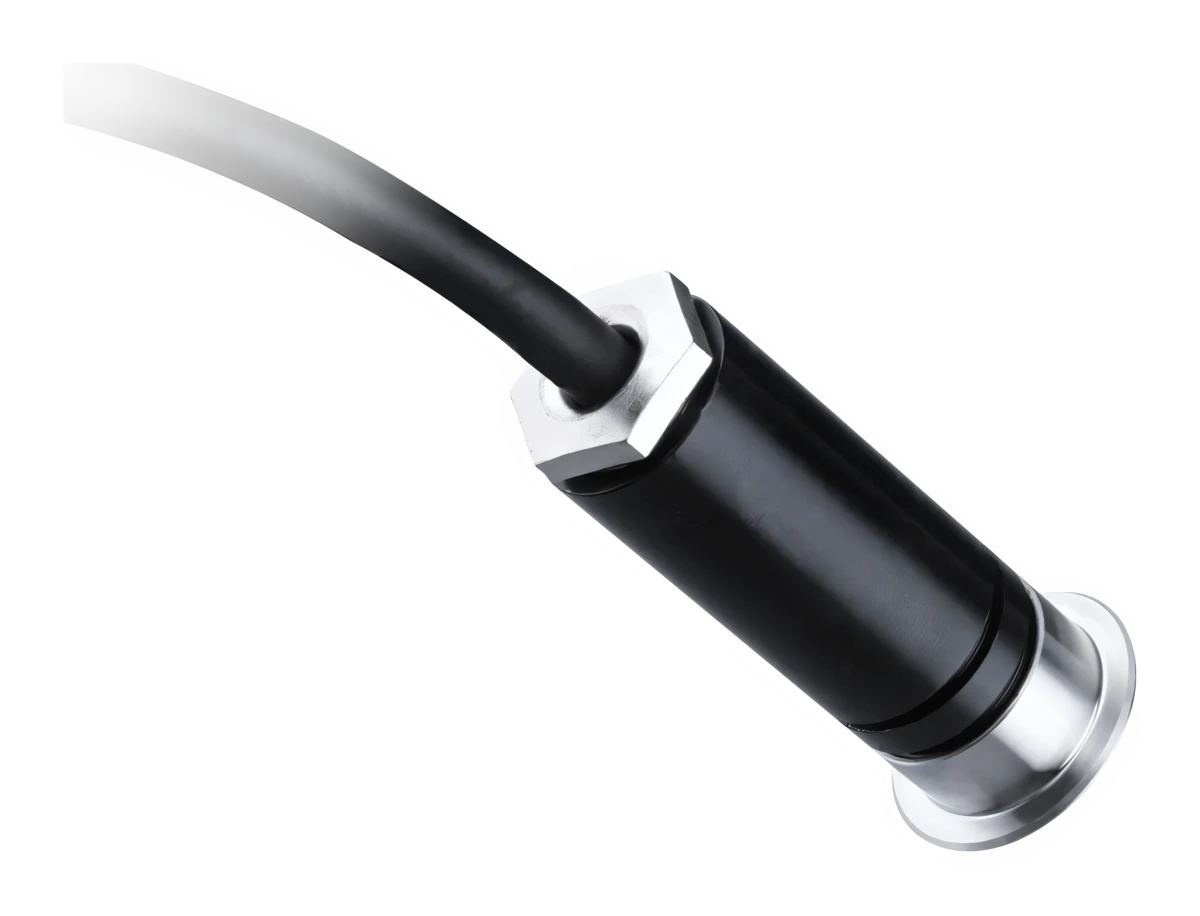

Deck DL1777

Technical specifications

CodeWattCRIVoltageFluxSizeBeamCCTCut-out
DL17771 W97 CRI24 V DC70 lmØ21 × 50 mm24° 36° 60°2700, 3000, 4000 KØ16 mm
LED source
Citizen
Colour temperature
2700, 3000, 4000 K
Beam angles
24°, 36°, 60°
Mounting
Recessed, Wall, Floor
IP rating
IP67
Certifications
CE

Photometry

DL1777. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: measured with a goniophotometer where marked, otherwise calculated from catalogue data.

0°30°60°30°60° 13252650 cd/klm C0–C180 C90–C270
32.9°
Data
Measured, 17 July 2025
Power
1 W, 3000 K
Luminous flux
40 lm
Efficacy
40 lm/W
Peak intensity
106 cd
Beam angle (50%)
32.9°
Field angle (10%)
58.1°
At 3 m
11 lx, Ø1.77 m
0°30°60°30°60° 25425083 cd/klm C0–C180 C90–C270
24°
Power
1 W
Luminous flux
70 lm
Efficacy
70 lm/W
Peak intensity
356 cd
Field angle (10%)
43.7°
At 3 m
40 lx, Ø1.28 m
0°30°60°30°60° 11452289 cd/klm C0–C180 C90–C270
36°
Power
1 W
Luminous flux
70 lm
Efficacy
70 lm/W
Peak intensity
160 cd
Field angle (10%)
65.6°
At 3 m
18 lx, Ø1.95 m
0°30°60°30°60° 430860 cd/klm C0–C180 C90–C270
60°
Power
1 W
Luminous flux
70 lm
Efficacy
70 lm/W
Peak intensity
60 cd
Field angle (10%)
109.4°
At 3 m
7 lx, Ø3.46 m
