Technical specifications
| Code | CRI | Voltage | Flux | Size | Beam | CCT | Cut-out | Notes |
|---|---|---|---|---|---|---|---|---|

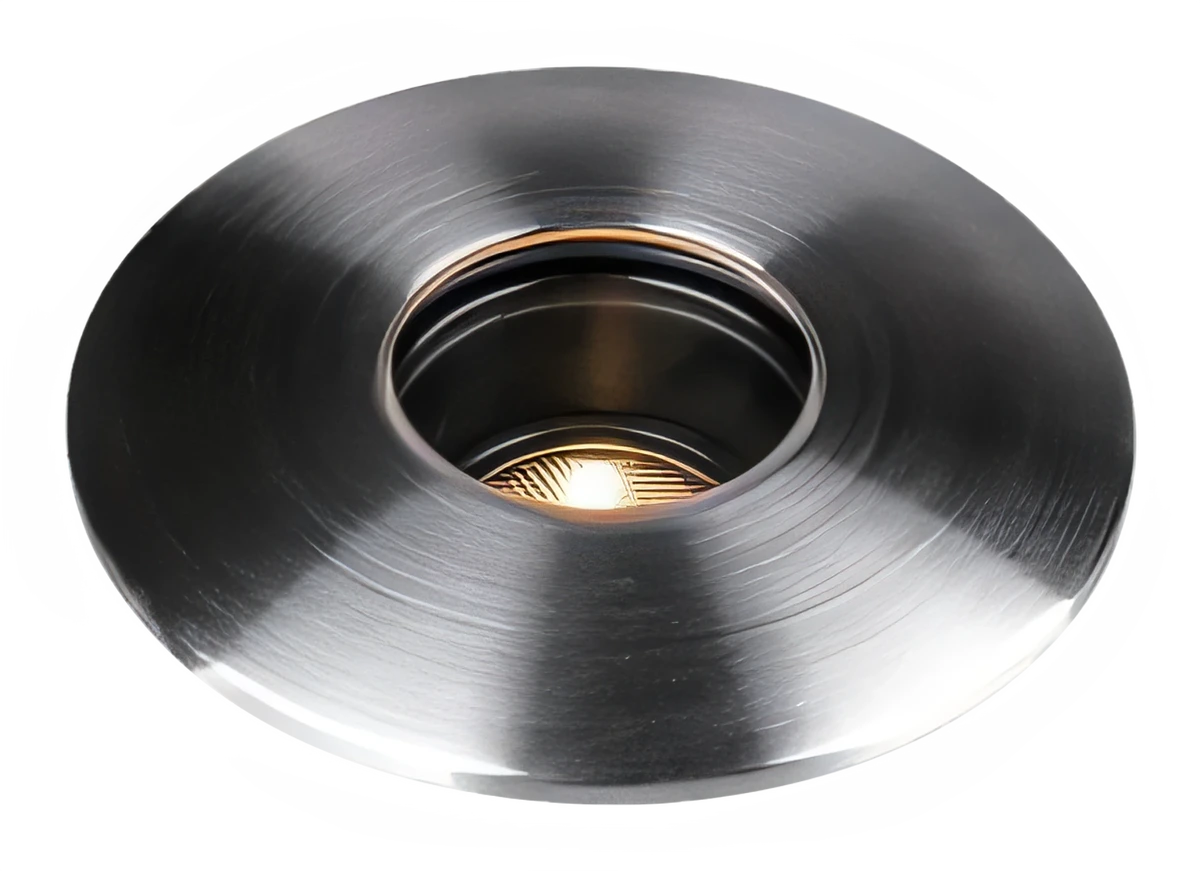

| DL1332 | 97 CRI | max 3 V, 24 V DC | 90 lm | Ø37 × 53 mm | 15° 24° 36° 60° | 2700, 3000, 4000 K | Ø34 mm | 350 / 700 mA |
- LED source
- Citizen
- Colour temperature
- 2700, 3000, 4000 K
- Beam angles
- 15°, 24°, 36°, 60°
- Mounting
- Recessed, Wall, Floor
- IP rating
- IP67
- Certifications
- CE
Photometry
DL1332. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: calculated from catalogue data, not measured.
- Luminous flux
- 90 lm
- Peak intensity
- 1,164 cd
- Field angle (10%)
- 27.3°
- At 3 m
- 129 lx, Ø0.79 m
- Luminous flux
- 90 lm
- Peak intensity
- 457 cd
- Field angle (10%)
- 43.7°
- At 3 m
- 51 lx, Ø1.28 m
- Luminous flux
- 90 lm
- Peak intensity
- 206 cd
- Field angle (10%)
- 65.6°
- At 3 m
- 23 lx, Ø1.95 m
- Luminous flux
- 90 lm
- Peak intensity
- 77 cd
- Field angle (10%)
- 109.4°
- At 3 m
- 9 lx, Ø3.46 m
