Technical specifications
| Code | Watt | CRI | Voltage | Flux | Size | Beam | CCT | Cut-out | Notes |
|---|---|---|---|---|---|---|---|---|---|

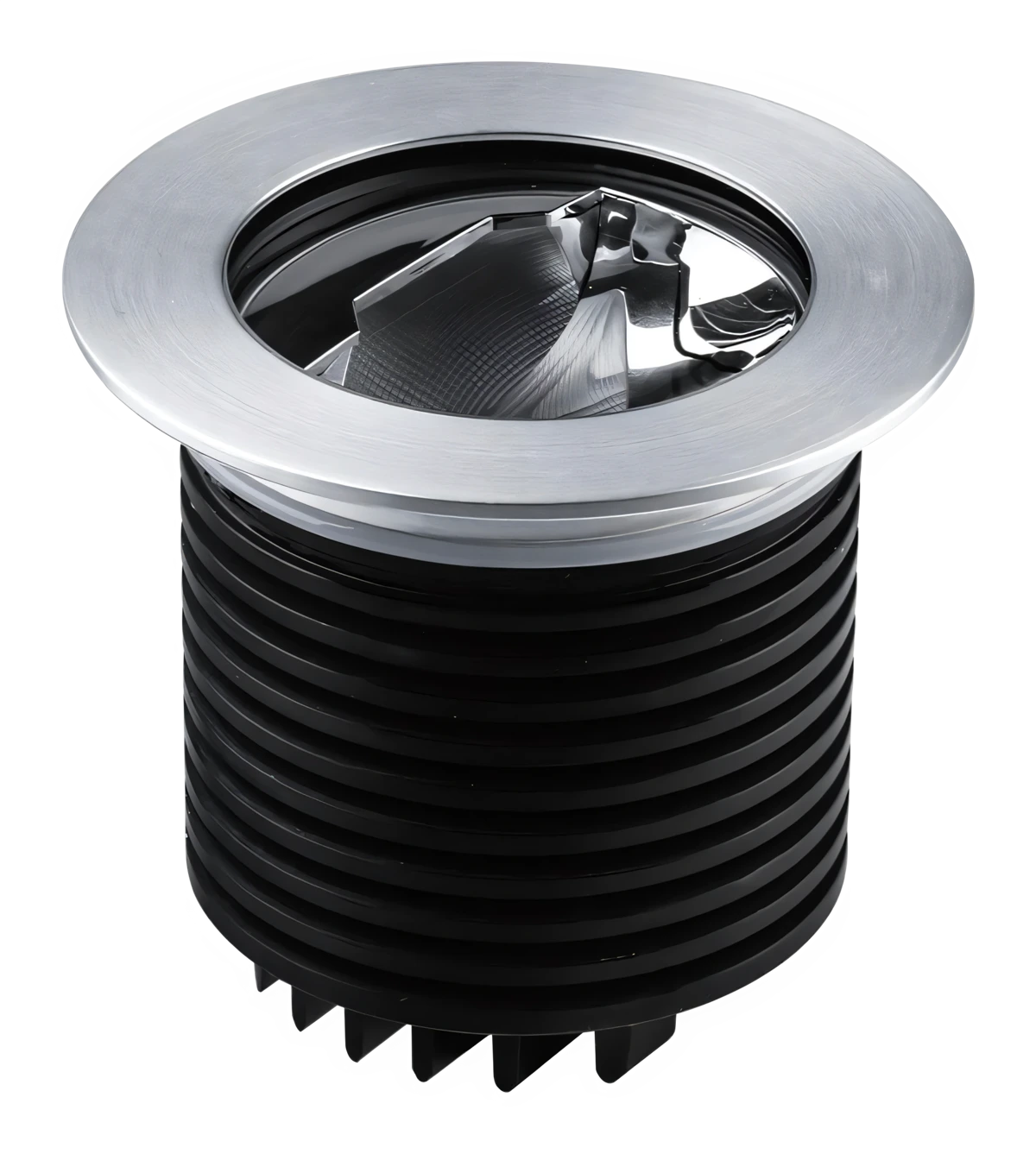

| DL1711Wall washer | 13 W | 97 CRI | max 36 V | 951 lm | Ø105 x H95 (flange Ø105, body height 95 mm); installation sleeve Ø89/Ø82 x H120 mm | 15° 24° 36° 60° | 2700, 3000, 4000 K | Ø90 mm | 350 mA |
- LED source
- Citizen
- Colour temperature
- 2700, 3000, 4000 K
- Beam angles
- 15°, 24°, 36°, 60°
- Mounting
- Recessed, Wall
- IP rating
- IP67
- Certifications
- CE
Photometry
DL1711. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: calculated from catalogue data, not measured.
- Power
- 13 W
- Luminous flux
- 951 lm
- Efficacy
- 73 lm/W
- Peak intensity
- 3,001 cd
- Power
- 13 W
- Luminous flux
- 951 lm
- Efficacy
- 73 lm/W
- Peak intensity
- 1,876 cd
- Power
- 13 W
- Luminous flux
- 951 lm
- Efficacy
- 73 lm/W
- Peak intensity
- 1,250 cd
- Power
- 13 W
- Luminous flux
- 951 lm
- Efficacy
- 73 lm/W
- Peak intensity
- 757 cd
