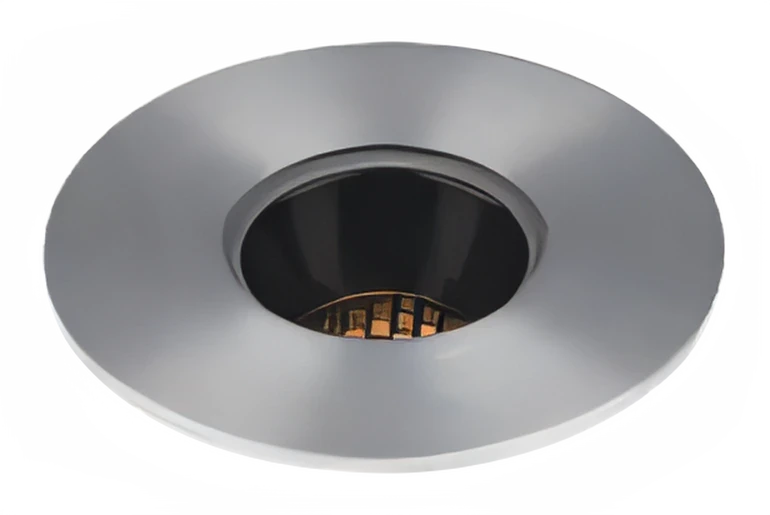

Deck DL1271

Name: Deck DL1271
Brand: DiaNoche
SKU: DL1271

Outdoor luminaire

Outdoor luminaire. 3 or 7 W. Beam angles 15° to 55°, by model. 2700, 3000, 4000 K. IP67. 97 CRI.

Available finishes

Black

2 models

DL12713 W
DL11677 W

Enquire about this product

DatasheetPDF, 309 KB

Photometric filesIES and LDT, 8 versions, measured and calculated

DL12713.4 W, 3000 K, 36°, measuredIES LDT

DL12713 W, 15°, calculatedIES LDT

DL12713 W, 24°, calculatedIES LDT

DL12713 W, 55°, calculatedIES LDT

DL11677 W, 15°, calculatedIES LDT

DL11677 W, 24°, calculatedIES LDT

DL11677 W, 36°, calculatedIES LDT

DL11677 W, 50°, calculatedIES LDT

Measured files come from goniophotometer tests in the laboratory; each file gives the test date. Calculated files are built from the catalogue photometric data, its illuminance table or rated luminous flux, with the beam angle. Spill light is not modelled.

See it in a space: Facade and garden

Technical specifications

Code	Watt	CRI	Voltage	Flux	Size	Beam	CCT
DL1271	3 W	97 CRI	24 V DC	270 lm	Ø62 x H63 mm	15° 24° 36° 55°	2700, 3000, 4000 K
DL1167	7 W	97 CRI	24 V DC	560 lm	Ø80 x H73 mm	15° 24° 36° 50°	2700, 3000, 4000 K

LED source: Citizen
Colour temperature: 2700, 3000, 4000 K
Beam angles: 15°, 24°, 36°, 50°, 55°
Mounting: Recessed, Wall
IP rating: IP67
Certifications: CE

Photometry

DL1271. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: measured with a goniophotometer where marked, otherwise calculated from catalogue data.
