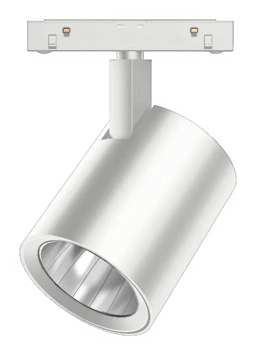

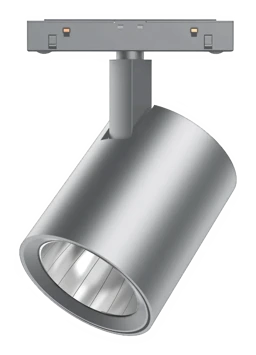

Spotlight CX-8151G

Technical specifications

CodeWattCRIVoltageFluxSizeBeamCCT

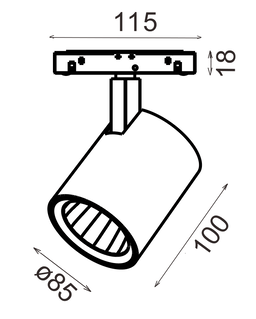

CX-8151GShort arm28 W97 CRI48 V3300 lmØ85 × 100 mm18° 24° 50°2700, 3000, 4000 K
LED source
Citizen
Colour temperature
2700, 3000, 4000 K
Beam angles
18°, 24°, 50°
Control
Casambi, DALI, 0–10 V, Bluetooth
Mounting
Magnetic track
IP rating
IP20
Certifications
CE, RoHS

Photometry

CX-8151G. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: calculated from catalogue data, not measured.

0°30°60°30°60° 44988995 cd/klm C0–C180 C90–C270
18°
Power
28 W
Luminous flux
3,300 lm
Efficacy
118 lm/W
Peak intensity
29,684 cd
Field angle (10%)
32.8°
At 3 m
3,298 lx, Ø0.95 m
0°30°60°30°60° 25425083 cd/klm C0–C180 C90–C270
24°
Power
28 W
Luminous flux
3,300 lm
Efficacy
118 lm/W
Peak intensity
16,774 cd
Field angle (10%)
43.7°
At 3 m
1,864 lx, Ø1.28 m
0°30°60°30°60° 6071213 cd/klm C0–C180 C90–C270
50°
Power
28 W
Luminous flux
3,300 lm
Efficacy
118 lm/W
Peak intensity
4,003 cd
Field angle (10%)
91.1°
At 3 m
445 lx, Ø2.80 m
