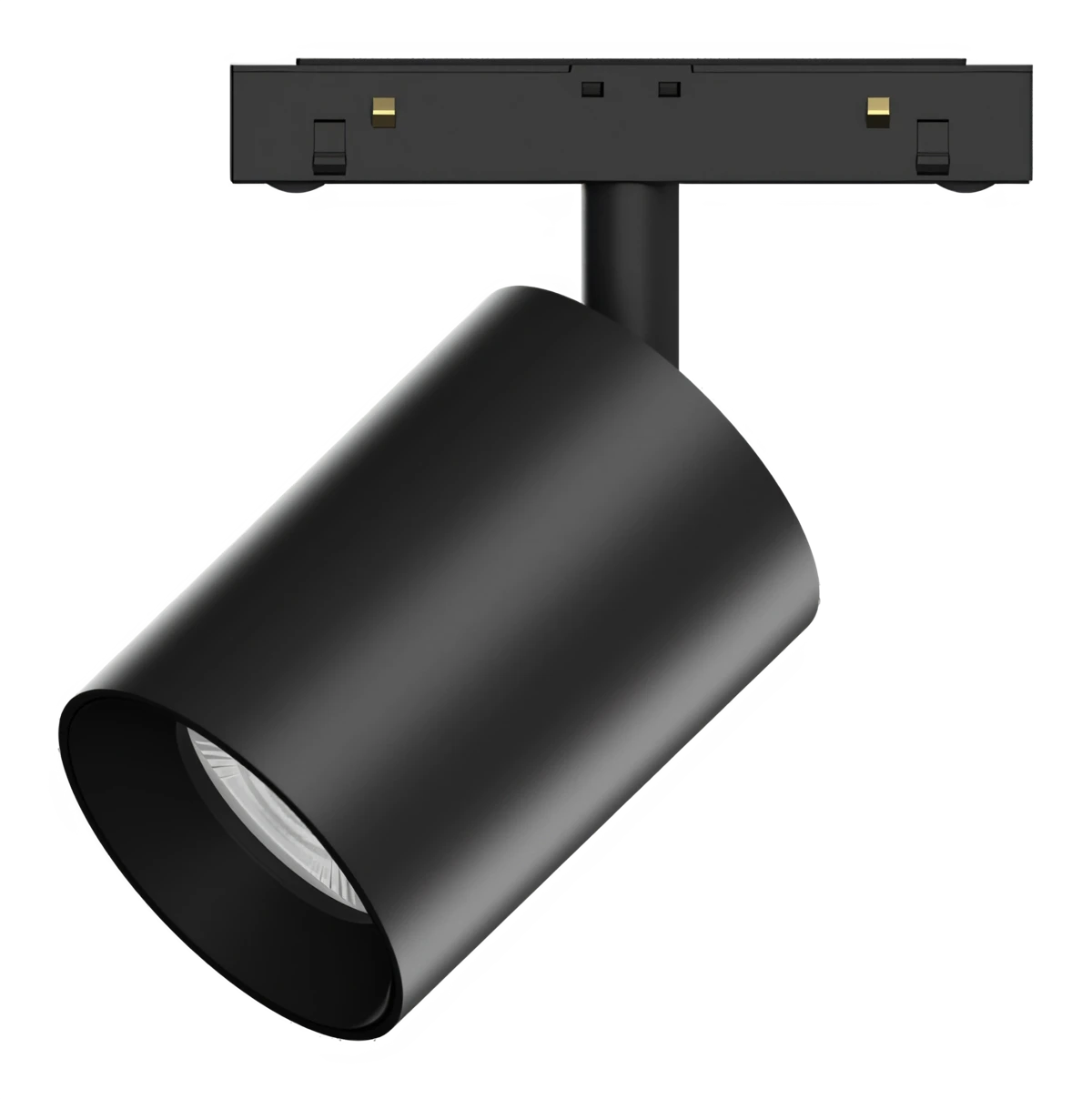

Spotlight CX-8132

Name: Spotlight CX-8132
Brand: DiaNoche
SKU: CX-8132

23 mm spotlight

Spotlight for the 23 mm magnetic track. 10 or 18 W. Beam angles 15° to 36°, by model. 2700, 3000, 4000 K. 97 CRI.

Finish: Black

4 models

CX-8132Short arm, 10 W
CX-9132Long arm, 10 W
CX-8133Short arm, 18 W
CX-9133Long arm, 18 W

Enquire about this product

DatasheetPDF, 433 KB

Photometric filesIES and LDT, 12 versions, calculated

CX-813210 W, 18°IES LDT

CX-813210 W, 24°IES LDT

CX-813210 W, 36°IES LDT

CX-913210 W, 18°IES LDT

CX-913210 W, 24°IES LDT

CX-913210 W, 36°IES LDT

CX-813318 W, 15°IES LDT

CX-813318 W, 24°IES LDT

CX-813318 W, 36°IES LDT

CX-913318 W, 15°IES LDT

CX-913318 W, 24°IES LDT

CX-913318 W, 36°IES LDT

Calculated files are built from the catalogue photometric data, its illuminance table or rated luminous flux, with the beam angle. Spill light is not modelled.

Technical specifications

Code	Watt	CRI	Voltage	Flux	Size	Beam	CCT
CX-8132Short arm	10 W	97 CRI	48 V	900 lm	Ø50 × 70 mm	18° 24° 36°	2700, 3000, 4000 K
CX-9132Long arm	10 W	97 CRI	48 V	900 lm	Ø50 × 70 mm	18° 24° 36°	2700, 3000, 4000 K
CX-8133Short arm	18 W	97 CRI	48 V	1600 lm	Ø66 × 90 mm	15° 24° 36°	2700, 3000, 4000 K
CX-9133Long arm	18 W	97 CRI	48 V	1600 lm	Ø66 × 90 mm	15° 24° 36°	2700, 3000, 4000 K

LED source: Citizen
Colour temperature: 2700, 3000, 4000 K
Beam angles: 15°, 18°, 24°, 36°
Control: Casambi, DALI, 0–10 V, Bluetooth
Mounting: Magnetic track
IP rating: IP20
Certifications: CE, RoHS

Photometry

CX-8133. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: calculated from catalogue data, not measured.
