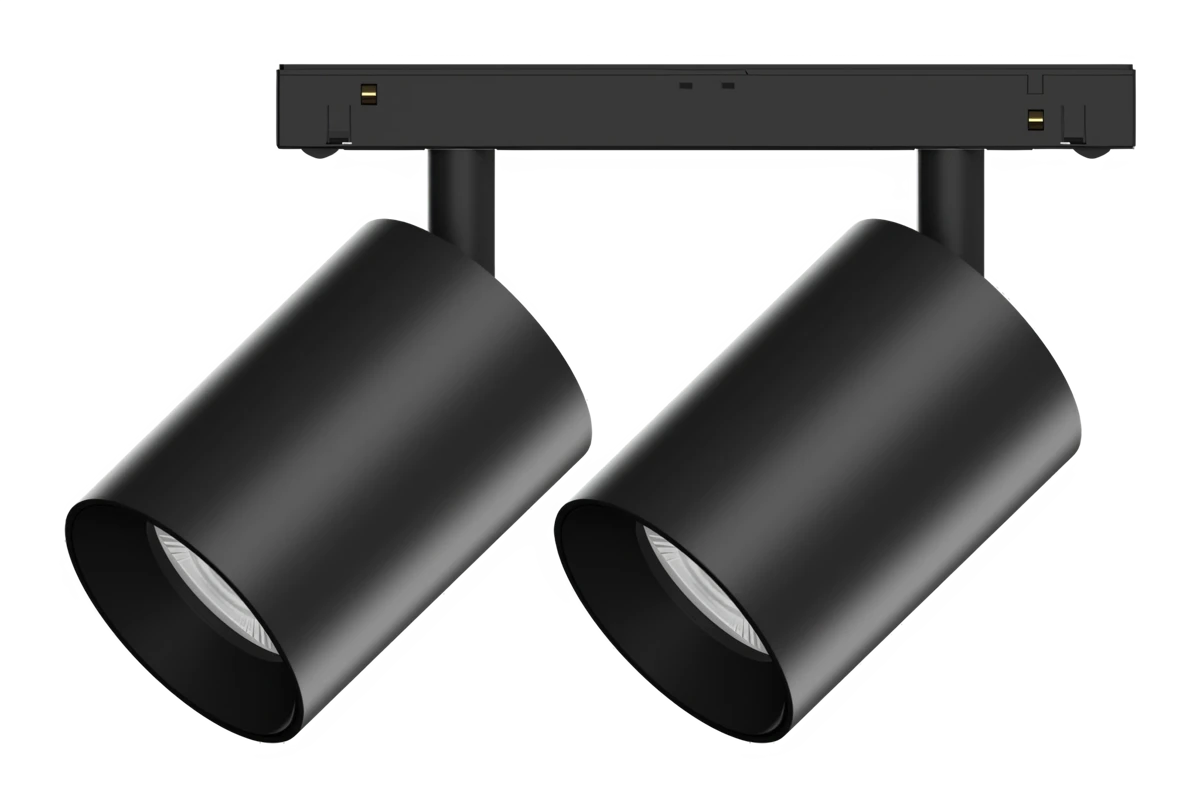

Spotlight CX-8132D

Name: Spotlight CX-8132D
Brand: DiaNoche
SKU: CX-8132D

23 mm spotlight

Spotlight for the 23 mm magnetic track. 20 or 36 W. Beam angles 15° to 36°, by model. 2700, 3000, 4000 K. 97 CRI.

Finish: Black

4 models

CX-8132DShort arm, 20 W
CX-9132DLong arm, 20 W
CX-8133DShort arm, 36 W
CX-9133DLong arm, 36 W

Enquire about this product

DatasheetPDF, 446 KB

Photometric filesIES and LDT, 12 versions, calculated

CX-8132D20 W, 18°IES LDT

CX-8132D20 W, 24°IES LDT

CX-8132D20 W, 36°IES LDT

CX-9132D20 W, 18°IES LDT

CX-9132D20 W, 24°IES LDT

CX-9132D20 W, 36°IES LDT

CX-8133D36 W, 15°IES LDT

CX-8133D36 W, 24°IES LDT

CX-8133D36 W, 36°IES LDT

CX-9133D36 W, 15°IES LDT

CX-9133D36 W, 24°IES LDT

CX-9133D36 W, 36°IES LDT

Calculated files are built from the catalogue photometric data, its illuminance table or rated luminous flux, with the beam angle. Spill light is not modelled.

Technical specifications

Code	Watt	CRI	Voltage	Flux	Size	Beam	CCT
CX-8132DShort arm	20 W	97 CRI	48 V	2 × 900 lm	Ø50 × 70 mm per head	18° 24° 36°	2700, 3000, 4000 K
CX-9132DLong arm	20 W	97 CRI	48 V	2 × 900 lm	Ø50 × 70 mm per head	18° 24° 36°	2700, 3000, 4000 K
CX-8133DShort arm	36 W	97 CRI	48 V	2 × 1800 lm	Ø66 × 90 mm per head	15° 24° 36°	2700, 3000, 4000 K
CX-9133DLong arm	36 W	97 CRI	48 V	2 × 1800 lm	Ø66 × 90 mm per head	15° 24° 36°	2700, 3000, 4000 K

LED source: Citizen
Colour temperature: 2700, 3000, 4000 K
Beam angles: 15°, 18°, 24°, 36°
Control: Casambi, DALI, 0–10 V, Bluetooth
Mounting: Magnetic track
IP rating: IP20
Certifications: CE, RoHS

Photometry

CX-8133D. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: calculated from catalogue data, not measured.
