COSMOS-0801R-1-4G

Name: COSMOS-0801R-1-4G
Brand: DiaNoche
SKU: COSMOS-0801R-1-4G

Recessed spotlight

Recessed spotlight. 8 W. 24° or 36° beam. 3000, 4000 K. 97 CRI.

Available finishes

WhiteBlackSilverBrassBronzeGun black

7 models

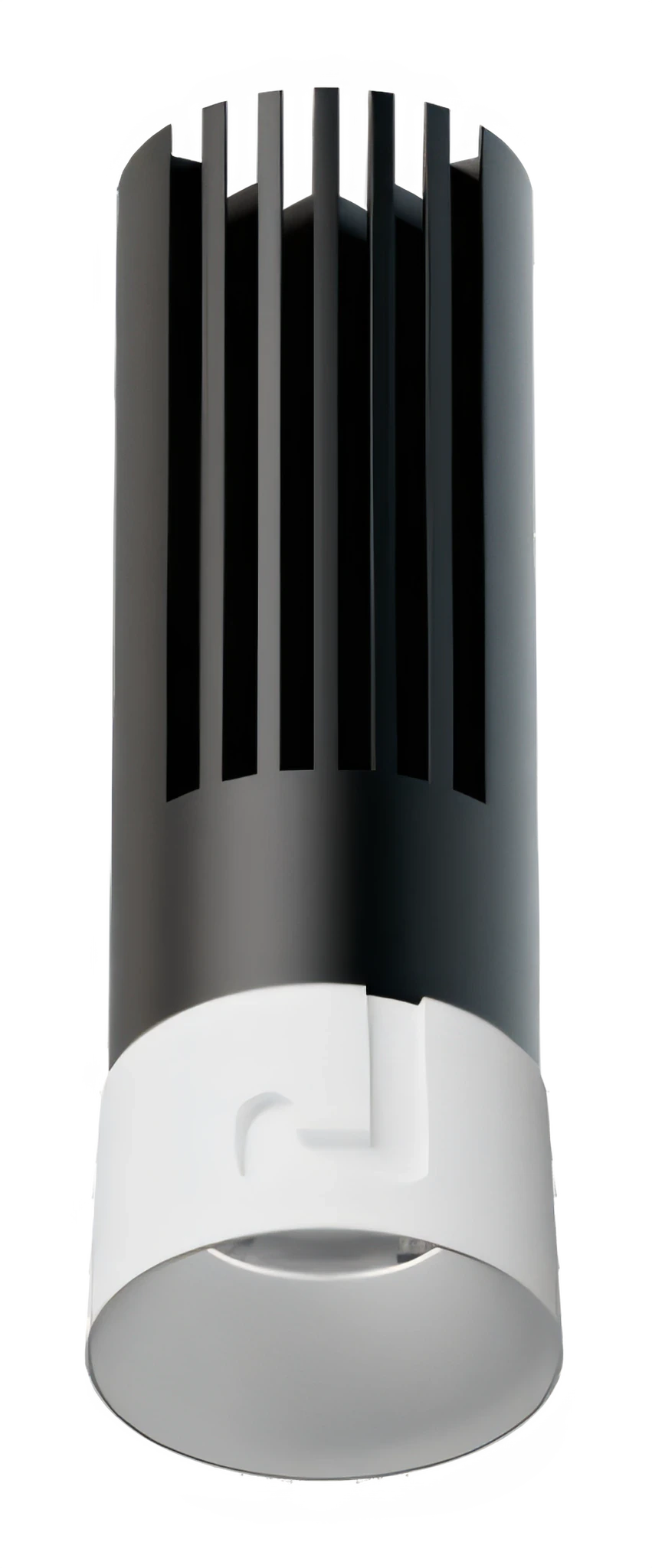

COSMOS-0801R-1-4GLens, 8 W
RE-COSMOS-1001FFrame 01F (round ring)
TL-COSMOS-1003FTrimless frame 03F (round, perforated flange)
TL-COSMOS-1004FTrimless frame 04F (5-position strip, can be cut to length)
RE-COSMOS-1001FFrame
TL-COSMOS-1003FTrimless ring
TL-COSMOS-1004FTrimless plate, 5 modules

Enquire about this product

DatasheetPDF, 454 KB

Photometric filesIES and LDT, 2 versions, estimated

COSMOS-0801R-1-4G8 W, 24°IES LDT

COSMOS-0801R-1-4G8 W, 36°IES LDT

Estimated files are derived from the rated wattage and the catalogue beam angle, not from laboratory measurement. Use them for early layouts and confirm final calculations with measured data.

Technical specifications

Code	Watt	CRI	Voltage	Size	Beam	CCT	Cut-out	Notes
COSMOS-0801R-1-4GLens	8 W	97 CRI	36 V	Ø30 x H77 mm	24° 36°	3000, 4000 K	—	200 mA
RE-COSMOS-1001FFrame 01F (round ring)	—	97 CRI	36 V	Ø42 x H77 mm	24° 36°	3000, 4000 K	Ø38 mm	—

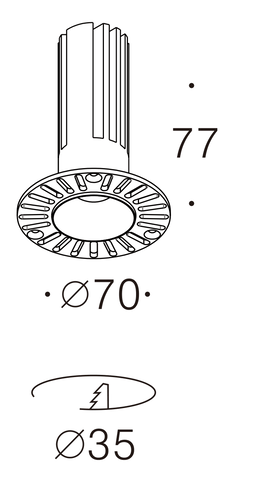

TL-COSMOS-1003FTrimless frame 03F (round, perforated flange)	—	97 CRI	36 V	Ø70 x H77 mm	24° 36°	3000, 4000 K	Ø35 mm	—
TL-COSMOS-1004FTrimless frame 04F (5-position strip, can be cut to length)	—	97 CRI	36 V	300 × 60 x H77 mm	24° 36°	3000, 4000 K	Ø275 mm	—
RE-COSMOS-1001FFrame	—	97 CRI	36 V	Ø42 mm	24° 36°	3000, 4000 K	Ø38 mm	—
TL-COSMOS-1003FTrimless ring	—	97 CRI	36 V	Ø70 mm	24° 36°	3000, 4000 K	Ø35 mm	—
TL-COSMOS-1004FTrimless plate, 5 modules	—	97 CRI	36 V	300 × 60 mm	24° 36°	3000, 4000 K	Ø275 mm	—

LED source: Citizen
Colour temperature: 3000, 4000 K
Beam angles: 24°, 36°
Control: On/Off, Triac
Mounting: Recessed
IP rating: IP20

Photometry

COSMOS-0801R-1-4G. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: estimated from catalogue data, not measured.
