Technical specifications
| Code | Watt | CRI | Voltage | Flux | Size | CCT |
|---|---|---|---|---|---|---|

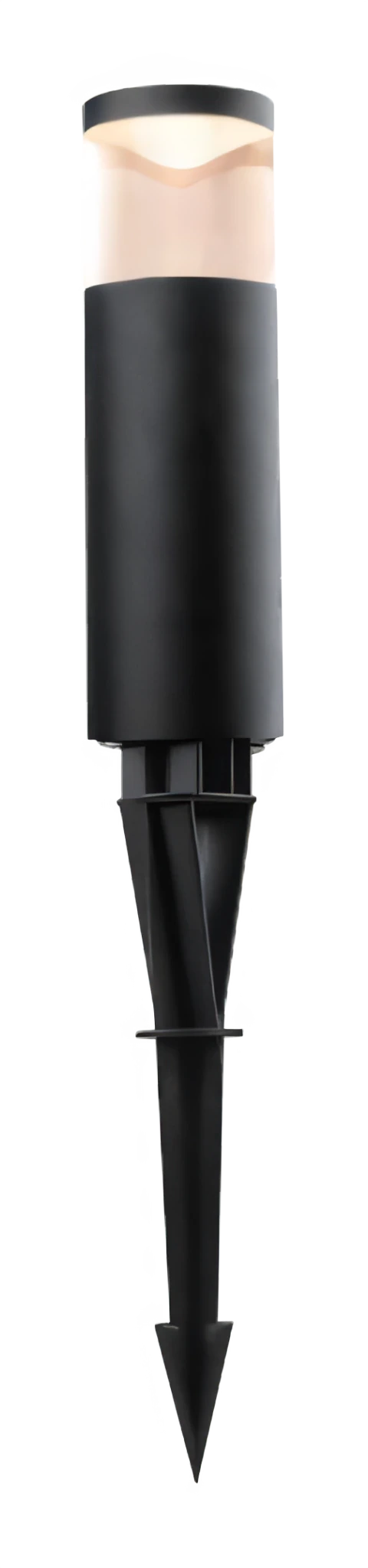

| SL0146H 407 mm | 12 W | 97 CRI | 24 V DC | 1080 lm | Ø60 x H407 mm (body 200 mm above the ground spike, 407 mm overall) | 2700, 3000, 4000 K |
| SL0129H 200 mm | 12 W | 97 CRI | 24 V DC | 1080 lm | Ø60 x H200 mm | 2700, 3000, 4000 K |
| SL0130H 400 mm | 12 W | 97 CRI | 24 V DC | 1080 lm | Ø60 x H400 mm | 2700, 3000, 4000 K |
| SL0131H 600 mm | 12 W | 97 CRI | 24 V DC | 1080 lm | Ø60 x H600 mm | 2700, 3000, 4000 K |
- LED source
- Citizen
- Colour temperature
- 2700, 3000, 4000 K
- Mounting
- Wall, Floor
- IP rating
- IP65
- Certifications
- CE
Photometry
SL0146. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: calculated from catalogue data, not measured.
- Power
- 12 W
- Luminous flux
- 1,080 lm
- Efficacy
- 90 lm/W
- Peak intensity
- 344 cd
- Field angle (10%)
- 168.5°
- At 3 m
- 38 lx, Ø10.39 m
