Technical specifications
| Code | Watt | CRI | Voltage | Flux | Size | Beam | CCT | Notes |
|---|---|---|---|---|---|---|---|---|

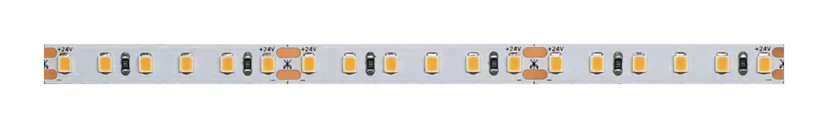

| OL-DNQF24120T09-8A28 | 9.6 W | 97 CRI | 24 V | 275 lm/m | W11 x H6.5 mm (profile section 11 mm x 6.5 mm); PCB width 8 mm | 113.7° | 4000 K | Power per metre |
- LED source
- Citizen
- Colour temperature
- 4000 K
- Beam angles
- 113.7°
- Mounting
- Recessed, Surface
- IP rating
- IP66
- Certifications
- CE, RoHS, UL
Photometry
OL-DNQF24120T09-8A28. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: calculated from catalogue data, not measured.
- Power
- 9.6 W
- Luminous flux
- 274 lm
- Efficacy
- 29 lm/W
- Peak intensity
- 87 cd
- At 3 m
- 10 lx, Ø9.19 m
