Technical specifications
| Code | Watt | CRI | Flux | Size | Beam | CCT | Cut-out |
|---|---|---|---|---|---|---|---|

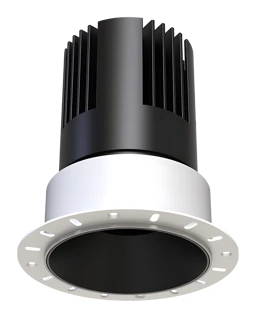

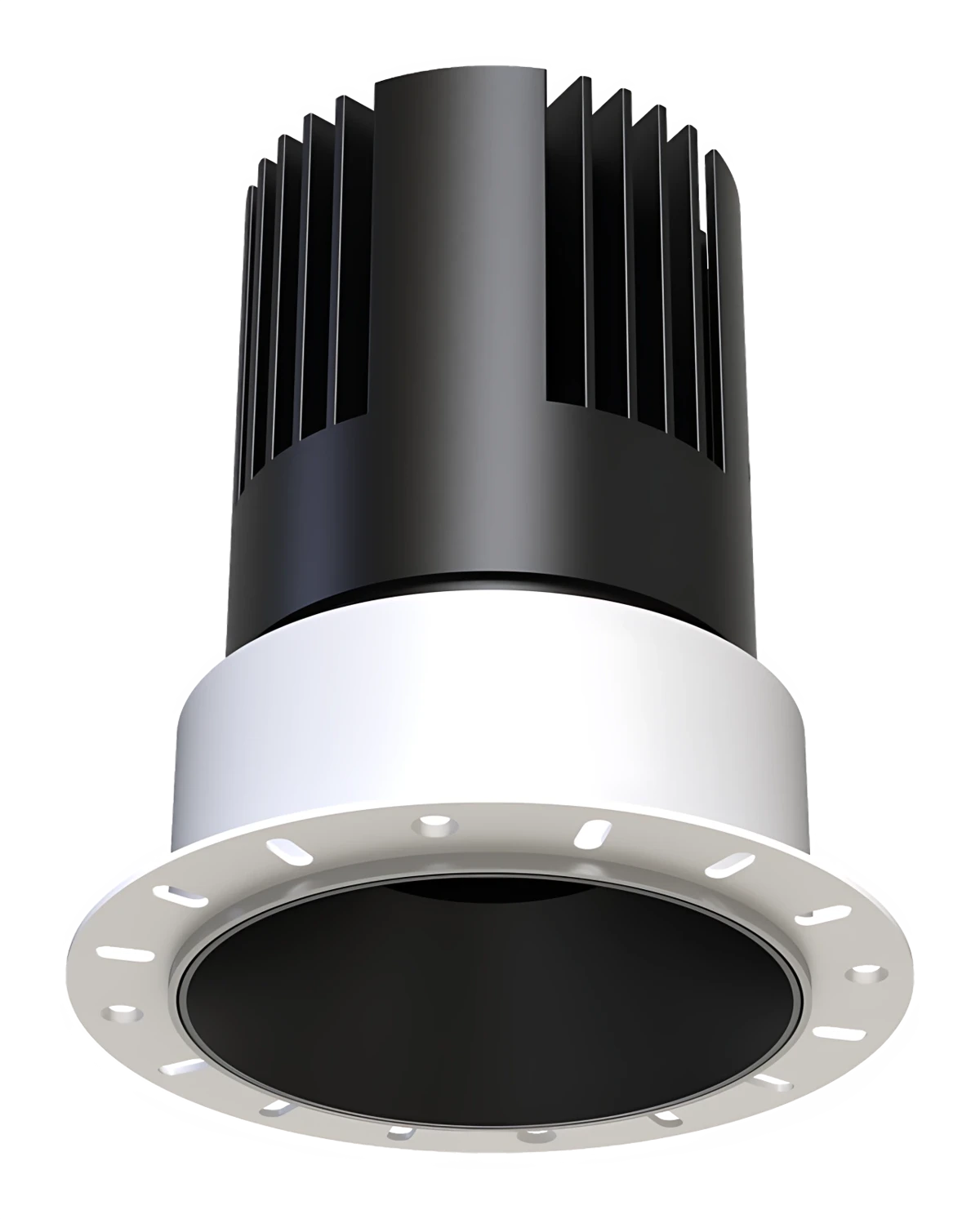

| D3-4337H-TLFTrimless fixed | 25 W | 97 CRI | 2100–2300 lm | Ø100 x H115 mm | 15° 24° 36° 50° | 3000, 4000 K | Ø80 mm |
- LED source
- Citizen
- Colour temperature
- 3000, 4000 K
- Beam angles
- 15°, 24°, 36°, 50°
- Control
- Triac, Casambi, DALI, 0–10 V
- Mounting
- Recessed
- IP rating
- IP54
- Certifications
- CE, RoHS, EMC, LVD
Photometry
D3-4337H-TLF. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: calculated from catalogue data, not measured.
- Power
- 25 W
- Luminous flux
- 1,918 lm
- Efficacy
- 77 lm/W
- Peak intensity
- 9,752 cd
- Field angle (10%)
- 43.7°
- At 3 m
- 1,084 lx, Ø1.28 m
- Power
- 25 W
- Luminous flux
- 2,770 lm
- Efficacy
- 111 lm/W
- Peak intensity
- 3,360 cd
- Field angle (10%)
- 91.1°
- At 3 m
- 373 lx, Ø2.80 m
- Power
- 25 W
- Luminous flux
- 2,100 lm
- Efficacy
- 84 lm/W
- Peak intensity
- 27,152 cd
- Field angle (10%)
- 27.3°
- At 3 m
- 3,017 lx, Ø0.79 m
- Power
- 25 W
- Luminous flux
- 2,100 lm
- Efficacy
- 84 lm/W
- Peak intensity
- 4,807 cd
- Field angle (10%)
- 65.6°
- At 3 m
- 534 lx, Ø1.95 m
