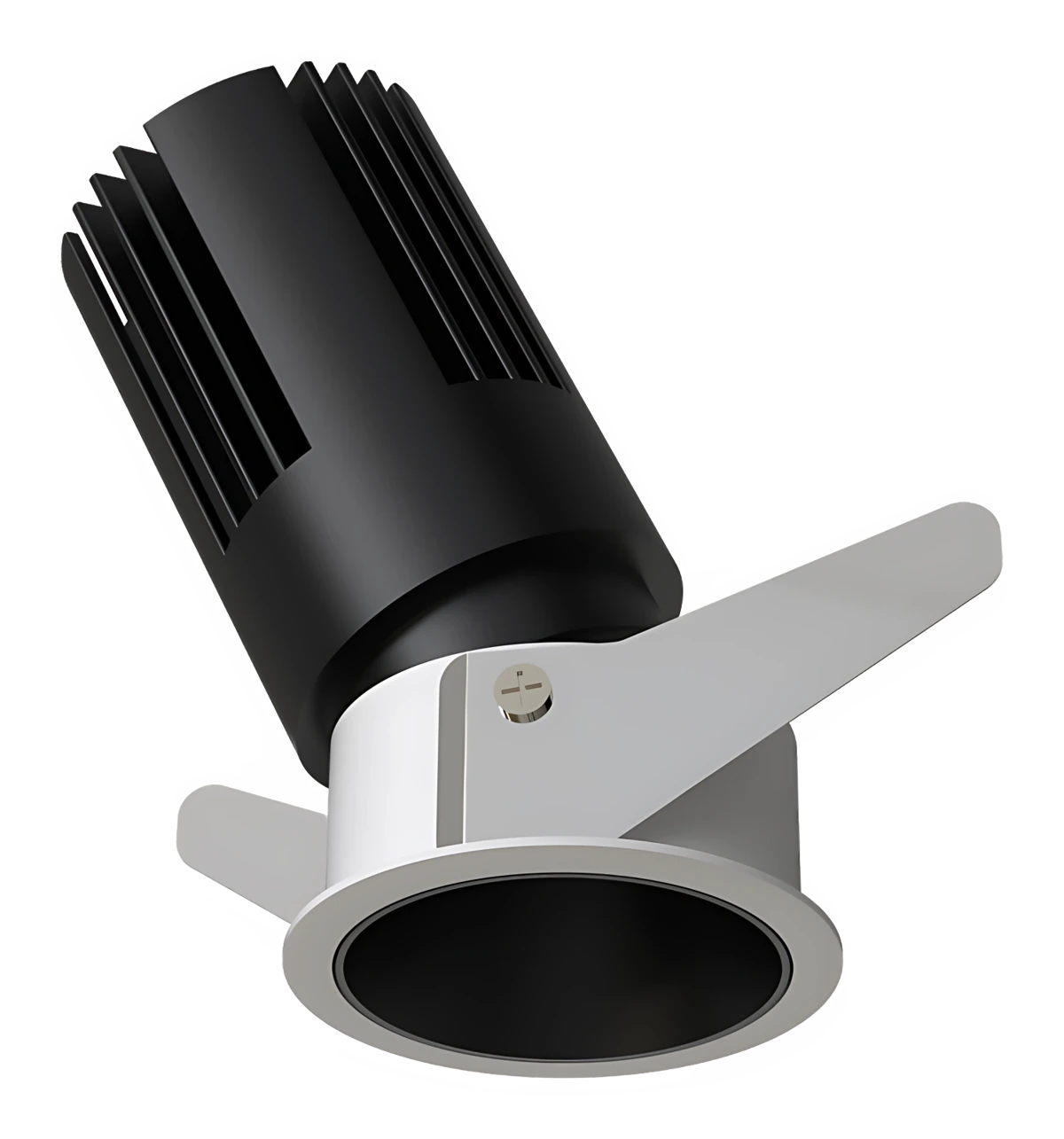

Trim Adjustable D3-4335H-TRA

Technical specifications

CodeWattCRIFluxSizeBeamCCTCut-out
D3-4335H-TRATRA (trim adjustable)15 W97 CRI1200–1300 lm66 × 111 mm15° 24° 36° 50°3000, 4000 KØ60 mm
LED source
Citizen
Colour temperature
3000, 4000 K
Beam angles
15°, 24°, 36°, 50°
Control
Triac, Casambi, DALI, 0–10 V
Mounting
Recessed
IP rating
IP54
Certifications
CE, RoHS, EMC, LVD

Photometry

D3-4335H-TRA. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: calculated from catalogue data, not measured.

0°30°60°30°60° 25425083 cd/klm C0–C180 C90–C270
24°
Power
15 W
Luminous flux
889 lm
Efficacy
59 lm/W
Peak intensity
4,520 cd
Field angle (10%)
43.7°
At 3 m
502 lx, Ø1.28 m
0°30°60°30°60° 6071213 cd/klm C0–C180 C90–C270
50°
Power
15 W
Luminous flux
1,309 lm
Efficacy
87 lm/W
Peak intensity
1,588 cd
Field angle (10%)
91.1°
At 3 m
176 lx, Ø2.80 m
0°30°60°30°60° 646512930 cd/klm C0–C180 C90–C270
15°
Power
15 W
Luminous flux
1,200 lm
Efficacy
80 lm/W
Peak intensity
15,516 cd
Field angle (10%)
27.3°
At 3 m
1,724 lx, Ø0.79 m
0°30°60°30°60° 11452289 cd/klm C0–C180 C90–C270
36°
Power
15 W
Luminous flux
1,200 lm
Efficacy
80 lm/W
Peak intensity
2,747 cd
Field angle (10%)
65.6°
At 3 m
305 lx, Ø1.95 m
