ENIT

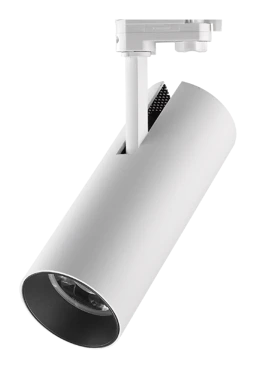

Track light 401xH S3-4017H

Technical specifications

CodeWattCRIVoltageFluxSizeBeamCCT
S3-4017H42 W97 CRI220–240 V AC4000–4100 lmØ110 × 240 mm15° 24° 36° 60°3000, 4000 K
LED source
Citizen
Colour temperature
3000, 4000 K
Beam angles
15°, 24°, 36°, 60°
Control
On/Off, Triac, Casambi, DALI, 0–10 V
Mounting
Magnetic track
IP rating
IP20
Certifications
CE, RoHS, EMC, LVD

Photometry

S3-4017H. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: calculated from catalogue data, not measured.

0°30°60°30°60° 646512930 cd/klm C0–C180 C90–C270
15°
Power
42 W
Luminous flux
1,396 lm
Efficacy
33 lm/W
Peak intensity
18,048 cd
Field angle (10%)
27.3°
At 3 m
2,005 lx, Ø0.79 m
0°30°60°30°60° 25425083 cd/klm C0–C180 C90–C270
24°
Power
42 W
Luminous flux
1,710 lm
Efficacy
41 lm/W
Peak intensity
8,692 cd
Field angle (10%)
43.7°
At 3 m
966 lx, Ø1.28 m
0°30°60°30°60° 11452289 cd/klm C0–C180 C90–C270
36°
Power
42 W
Luminous flux
2,948 lm
Efficacy
70 lm/W
Peak intensity
6,748 cd
Field angle (10%)
65.6°
At 3 m
750 lx, Ø1.95 m
0°30°60°30°60° 430860 cd/klm C0–C180 C90–C270
60°
Power
42 W
Luminous flux
4,000 lm
Efficacy
95 lm/W
Peak intensity
3,441 cd
Field angle (10%)
109.4°
At 3 m
382 lx, Ø3.46 m
