Technical specifications
| Code | Watt | CRI | Voltage | Flux | Size | Beam | CCT |
|---|---|---|---|---|---|---|---|

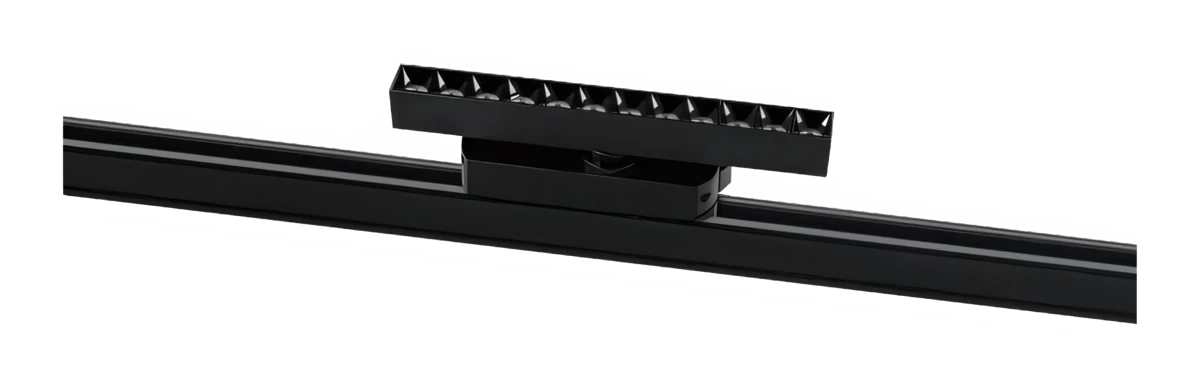

| TR0200 | 14 W | 97 CRI | 230 V AC | 1080 lm | Head L220 × 22 × 25 mm; adapter L163 x W32 x H41 mm | 24° 36° | 2700, 3000, 4000 K |
- LED source
- Citizen
- Colour temperature
- 2700, 3000, 4000 K
- Beam angles
- 24°, 36°
- Mounting
- Magnetic track
- IP rating
- IP20
- Certifications
- CE
Photometry
TR0200. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: calculated from catalogue data, not measured.
- Power
- 14 W
- Luminous flux
- 1,080 lm
- Efficacy
- 77 lm/W
- Peak intensity
- 5,490 cd
- Field angle (10%)
- 43.7°
- At 3 m
- 610 lx, Ø1.28 m
- Power
- 14 W
- Luminous flux
- 1,080 lm
- Efficacy
- 77 lm/W
- Peak intensity
- 2,472 cd
- Field angle (10%)
- 65.6°
- At 3 m
- 275 lx, Ø1.95 m
