Technical specifications
| Code | CRI | Voltage | Flux | Size | CCT | Cut-out | Notes |
|---|---|---|---|---|---|---|---|

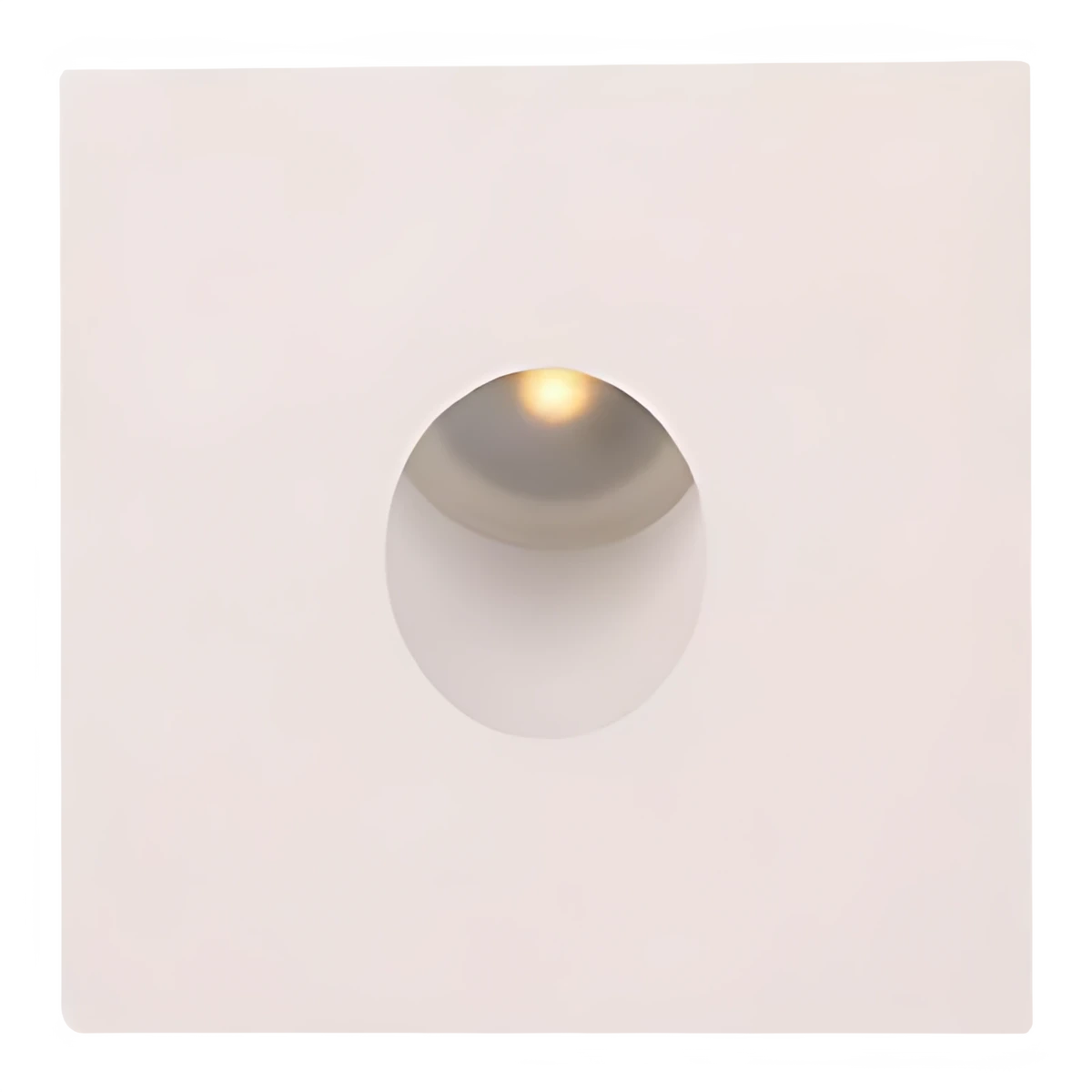

| DL0290 | 97 CRI | max 3 V | 50 / 110 lm | 39 × 39 × 21 mm; housing Ø31/Ø36 × 45 mm | 2700, 3000, 4000 K | Ø34 mm | 350 / 700 mA |
- LED source
- Citizen
- Colour temperature
- 2700, 3000, 4000 K
- Mounting
- Recessed, Wall
- IP rating
- IP54
- Certifications
- CE
Photometry
DL0290. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: calculated from catalogue data, not measured.
- Luminous flux
- 50 lm
- Peak intensity
- 16 cd
- Field angle (10%)
- 168.5°
- At 3 m
- 2 lx, Ø10.39 m
