Technical specifications
| Code | Watt | CRI | Voltage | Flux | Size | Beam | CCT |
|---|---|---|---|---|---|---|---|

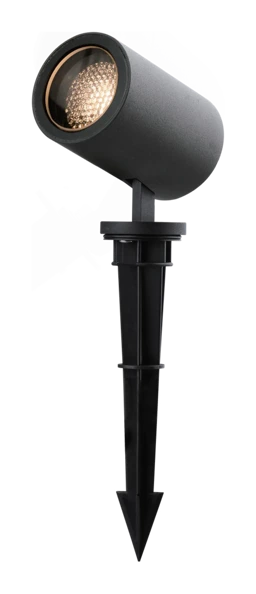

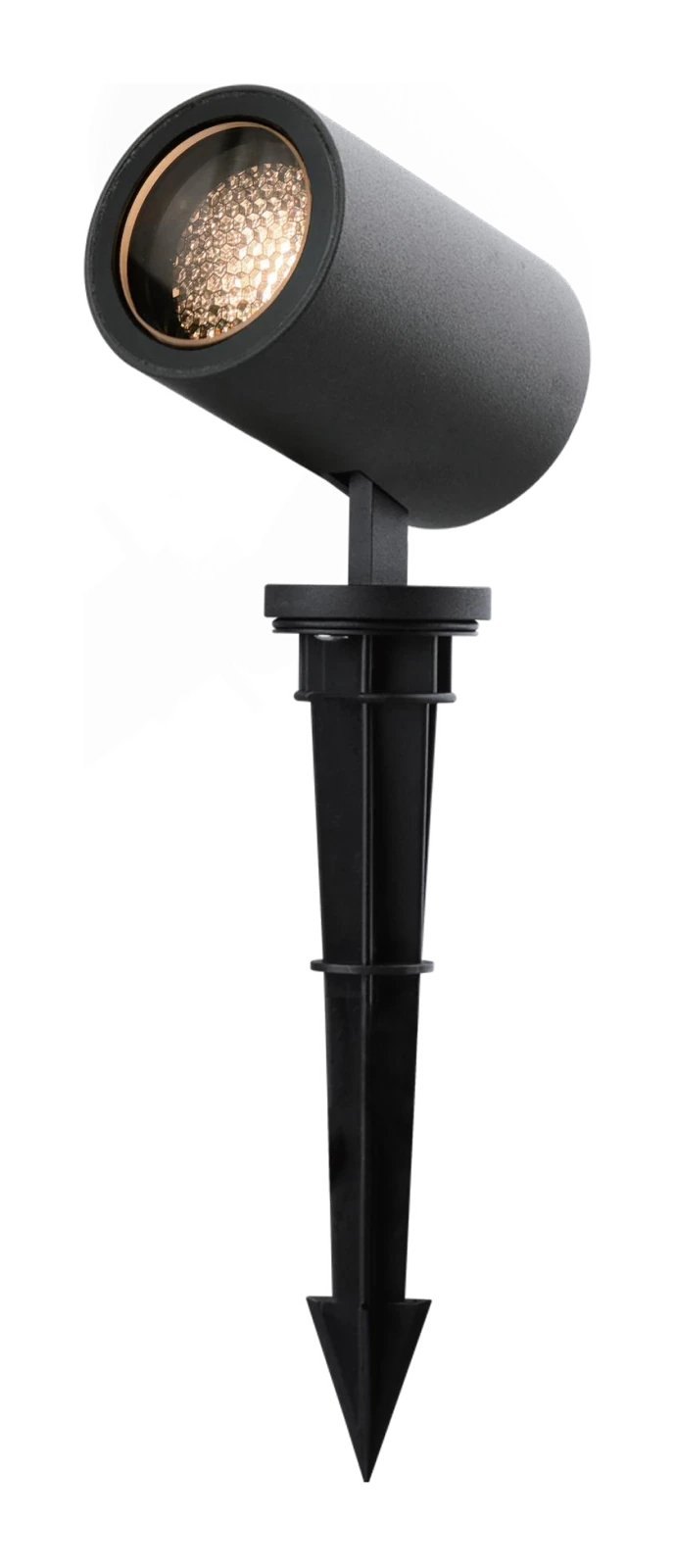

| SL0160 | 13 W | 97 CRI | 24 V DC | 1140 lm | Head Ø60 x L85 mm; collar H8 mm; overall H319 mm; stake length 210 mm; Ø55 mm under the stake/collar | 15° 24° 36° 55° | 2700, 3000, 4000 K |
- LED source
- Citizen
- Colour temperature
- 2700, 3000, 4000 K
- Beam angles
- 15°, 24°, 36°, 55°
- Mounting
- Surface, Wall, Floor
- IP rating
- IP65
- Certifications
- CE
Photometry
SL0160. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: calculated from catalogue data, not measured.
- Power
- 13 W
- Luminous flux
- 1,140 lm
- Efficacy
- 88 lm/W
- Peak intensity
- 14,740 cd
- Field angle (10%)
- 27.3°
- At 3 m
- 1,638 lx, Ø0.79 m
- Power
- 13 W
- Luminous flux
- 1,140 lm
- Efficacy
- 88 lm/W
- Peak intensity
- 5,795 cd
- Field angle (10%)
- 43.7°
- At 3 m
- 644 lx, Ø1.28 m
- Power
- 13 W
- Luminous flux
- 1,140 lm
- Efficacy
- 88 lm/W
- Peak intensity
- 2,610 cd
- Field angle (10%)
- 65.6°
- At 3 m
- 290 lx, Ø1.95 m
- Power
- 13 W
- Luminous flux
- 1,140 lm
- Efficacy
- 88 lm/W
- Peak intensity
- 1,154 cd
- Field angle (10%)
- 100.2°
- At 3 m
- 128 lx, Ø3.12 m
