Technical specifications
| Code | Watt | CRI | Voltage | Size | Beam | CCT | Cut-out |
|---|---|---|---|---|---|---|---|

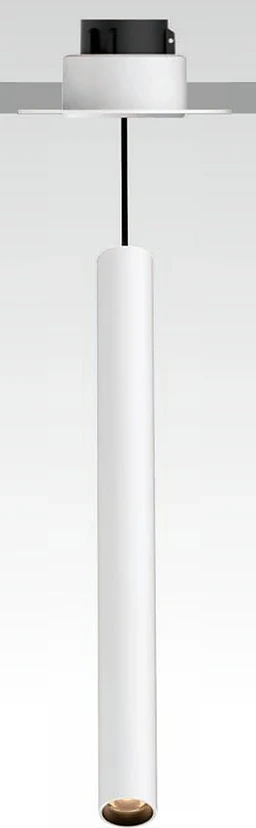

| 2217PF7 W, Ø26, 1550 mm | 7 W | 97 CRI | 36 V | Ø26 × 300 mm body on 1200 mm cable; 1550 mm overall | 15° 24° 36° | 3000 K | Ø45 mm |
| 2217PF5 W, Ø18, 1750 mm | 5 W | 97 CRI | 3 V | Ø18 × 500 mm body on 1200 mm cable; 1750 mm overall | 30° | 3000 K | Ø45 mm |
- LED source
- Citizen
- Colour temperature
- 3000 K
- Beam angles
- 15°, 24°, 30°, 36°
- Mounting
- Recessed, Suspended
- IP rating
- IP20
Photometry
2217PF. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: calculated from catalogue data, not measured.
- Power
- 7 W
- Luminous flux
- 161 lm
- Efficacy
- 23 lm/W
- Peak intensity
- 2,083 cd
- Field angle (10%)
- 27.3°
- At 3 m
- 231 lx, Ø0.79 m
- Power
- 7 W
- Luminous flux
- 280 lm
- Efficacy
- 40 lm/W
- Peak intensity
- 1,424 cd
- Field angle (10%)
- 43.7°
- At 3 m
- 158 lx, Ø1.28 m
- Power
- 7 W
- Luminous flux
- 426 lm
- Efficacy
- 61 lm/W
- Peak intensity
- 976 cd
- Field angle (10%)
- 65.6°
- At 3 m
- 108 lx, Ø1.95 m
Anatomy
How it is built
Every Sparkle spot comes apart into the same modules: mounting frame, optics, radiator and finish ring, so one housing takes any trim or beam.
