Technical specifications
| Code | Watt | CRI | Flux | Size | Beam | CCT |
|---|---|---|---|---|---|---|

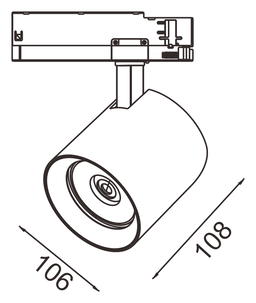

| S3-6088HLens | 43 W | 97 CRI | 4000–4100 lm | 106 × 108 mm | 15° 30° 36° 55° | 3000, 4000 K |
- LED source
- Citizen
- Colour temperature
- 3000, 4000 K
- Beam angles
- 15°, 30°, 36°, 55°
- Control
- Triac, Casambi, DALI, 0–10 V
- Mounting
- Magnetic track
- IP rating
- IP20
- Certifications
- CE, RoHS, EMC, LVD
Photometry
S3-6088H. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: calculated from catalogue data, not measured.
- Power
- 43 W
- Luminous flux
- 2,656 lm
- Efficacy
- 62 lm/W
- Peak intensity
- 34,336 cd
- Field angle (10%)
- 27.3°
- At 3 m
- 3,815 lx, Ø0.79 m
- Power
- 43 W
- Luminous flux
- 5,314 lm
- Efficacy
- 124 lm/W
- Peak intensity
- 27,012 cd
- Field angle (10%)
- 43.7°
- At 3 m
- 3,001 lx, Ø1.28 m
- Power
- 43 W
- Luminous flux
- 6,032 lm
- Efficacy
- 140 lm/W
- Peak intensity
- 13,808 cd
- Field angle (10%)
- 65.6°
- At 3 m
- 1,534 lx, Ø1.95 m
- Power
- 43 W
- Luminous flux
- 4,000 lm
- Efficacy
- 93 lm/W
- Peak intensity
- 13,090 cd
- Field angle (10%)
- 54.7°
- At 3 m
- 1,454 lx, Ø1.61 m
