Technical specifications
| Code | Watt | CRI | Flux | Size | CCT |
|---|---|---|---|---|---|

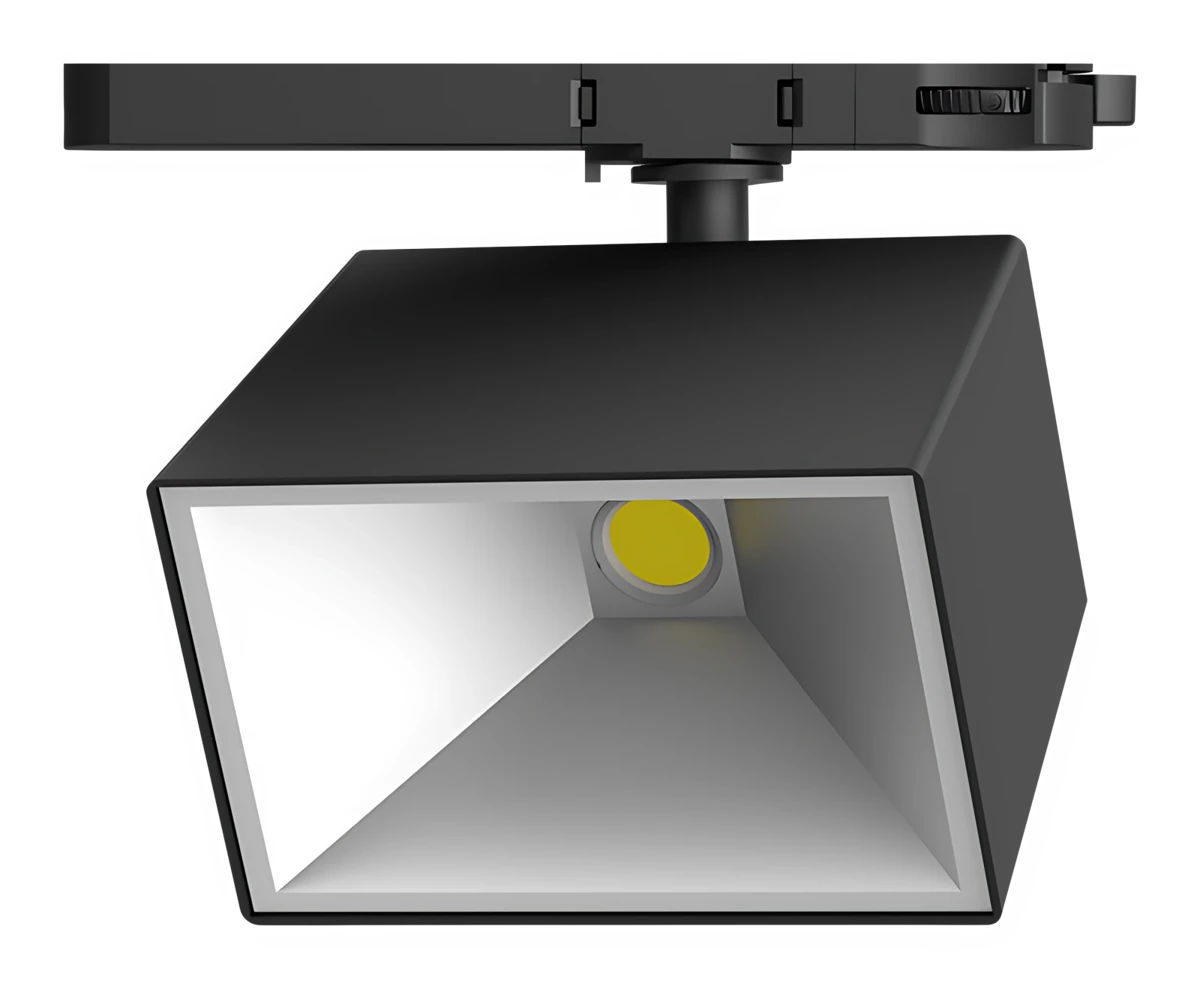

| S3-6038BWall washer | 32 W | 97 CRI | 3700–3800 lm | 113 × 98 × 89 mm | 3000, 4000 K |
- LED source
- Citizen
- Colour temperature
- 3000, 4000 K
- Control
- Triac, Casambi, DALI, 0–10 V
- Mounting
- Magnetic track
- IP rating
- IP20
- Certifications
- CE, RoHS, EMC, LVD
Photometry
S3-6038B. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: calculated from catalogue data, not measured.
- Power
- 32 W
- Luminous flux
- 3,700 lm
- Efficacy
- 116 lm/W
- Peak intensity
- 4,379 cd
