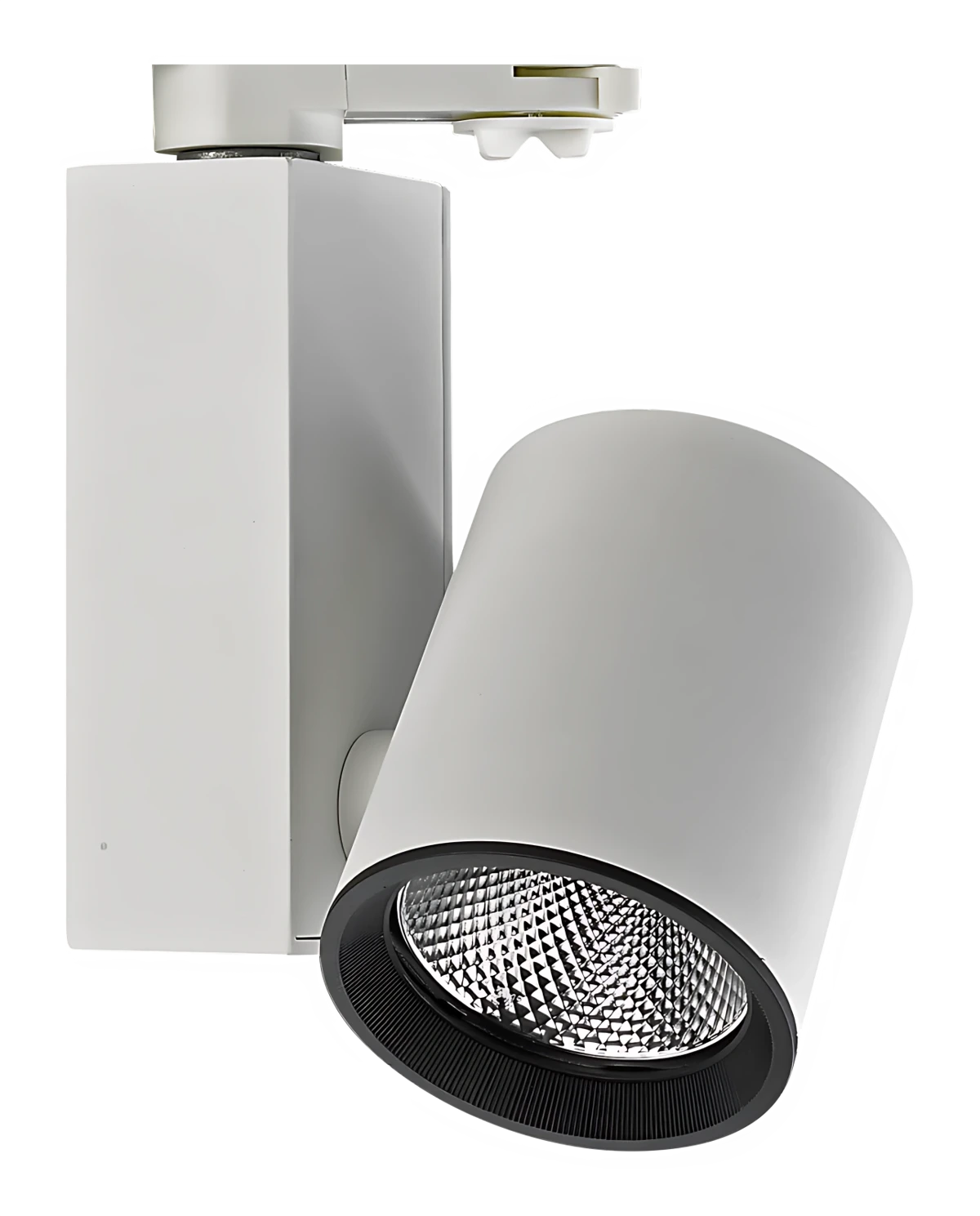

S3-6030

Name: S3-6030
Brand: DiaNoche
SKU: S3-6030

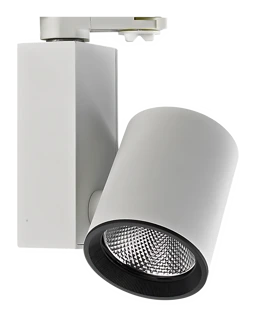

Track spotlight

Track spotlight. 28 or 35 W. Beam angles 15° to 55°, by model. 3000, 4000 K. 97 CRI.

Available finishes

WhiteBlackGrey

4 models

S3-603028 W
S3-6030H28 W
S3-601535 W
S3-6015H35 W

Enquire about this product

DatasheetPDF, 397 KB

Photometric filesIES and LDT, 16 versions, calculated

S3-603028 W, 15°IES LDT

S3-603028 W, 24°IES LDT

S3-603028 W, 45°IES LDT

S3-603028 W, 55°IES LDT

S3-6030H28 W, 15°IES LDT

S3-6030H28 W, 24°IES LDT

S3-6030H28 W, 45°IES LDT

S3-6030H28 W, 55°IES LDT

S3-601535 W, 15°IES LDT

S3-601535 W, 30°IES LDT

S3-601535 W, 40°IES LDT

S3-601535 W, 55°IES LDT

S3-6015H35 W, 15°IES LDT

S3-6015H35 W, 30°IES LDT

S3-6015H35 W, 40°IES LDT

S3-6015H35 W, 55°IES LDT

Calculated files are built from the catalogue photometric data, its illuminance table or rated luminous flux, with the beam angle. Spill light is not modelled.

Technical specifications

Code	Watt	CRI	Flux	Size	Beam	CCT
S3-6030	28 W	97 CRI	2600–2900 lm	Ø85 × 104 mm	15° 24° 45° 55°	3000, 4000 K
S3-6030H	28 W	97 CRI	2600–2900 lm	Ø85 × 104 mm	15° 24° 45° 55°	3000, 4000 K
S3-6015	35 W	97 CRI	3400–3700 lm	Ø95 × 112 mm	15° 30° 40° 55°	3000, 4000 K
S3-6015H	35 W	97 CRI	3400–3700 lm	Ø95 × 112 mm	15° 30° 40° 55°	3000, 4000 K

LED source: Citizen
Colour temperature: 3000, 4000 K
Beam angles: 15°, 24°, 30°, 40°, 45°, 55°
Control: Triac, Casambi, DALI, 0–10 V
Mounting: Magnetic track
IP rating: IP20
Certifications: CE, RoHS, EMC, LVD

Photometry

S3-6015. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: calculated from catalogue data, not measured.
