Technical specifications

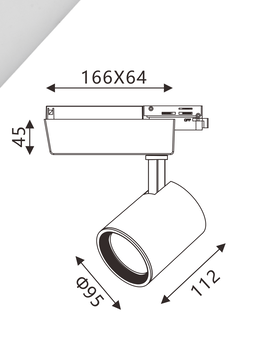

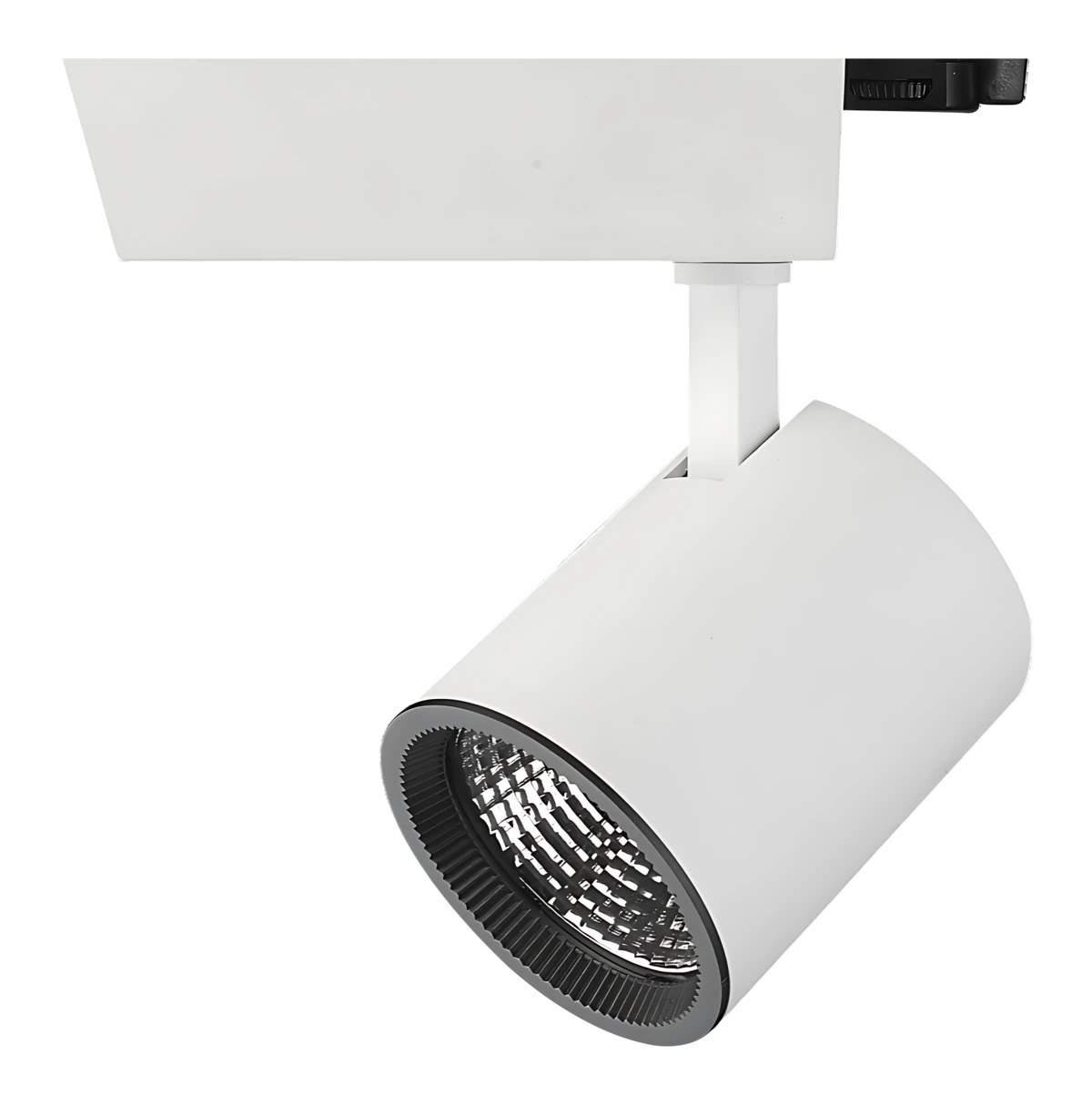

| Code | Watt | CRI | Voltage | Flux | Size | Beam | CCT |
|---|---|---|---|---|---|---|---|
| S3-6004 | 35 W | 97 CRI | 220–240 V AC | 3400–3700 lm | Ø95 × 112 mm | 15° 30° 45° 55° | 3000, 4000 K |
- LED source
- Citizen
- Colour temperature
- 3000, 4000 K
- Beam angles
- 15°, 30°, 45°, 55°
- Control
- On/Off, Triac, Casambi, DALI, 0–10 V
- Mounting
- Magnetic track
- IP rating
- IP20
- Certifications
- CE, RoHS, EMC, LVD
Photometry
S3-6004. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: calculated from catalogue data, not measured.
- Power
- 35 W
- Luminous flux
- 3,095 lm
- Efficacy
- 88 lm/W
- Peak intensity
- 10,128 cd
- Field angle (10%)
- 54.7°
- At 3 m
- 1,125 lx, Ø1.61 m
- Power
- 35 W
- Luminous flux
- 2,304 lm
- Efficacy
- 66 lm/W
- Peak intensity
- 4,296 cd
- Field angle (10%)
- 72.9°
- At 3 m
- 477 lx, Ø2.18 m
- Power
- 35 W
- Luminous flux
- 4,378 lm
- Efficacy
- 125 lm/W
- Peak intensity
- 4,432 cd
- Field angle (10%)
- 100.2°
- At 3 m
- 492 lx, Ø3.12 m
- Power
- 35 W
- Luminous flux
- 3,400 lm
- Efficacy
- 97 lm/W
- Peak intensity
- 43,961 cd
- Field angle (10%)
- 27.3°
- At 3 m
- 4,885 lx, Ø0.79 m
