ENIT

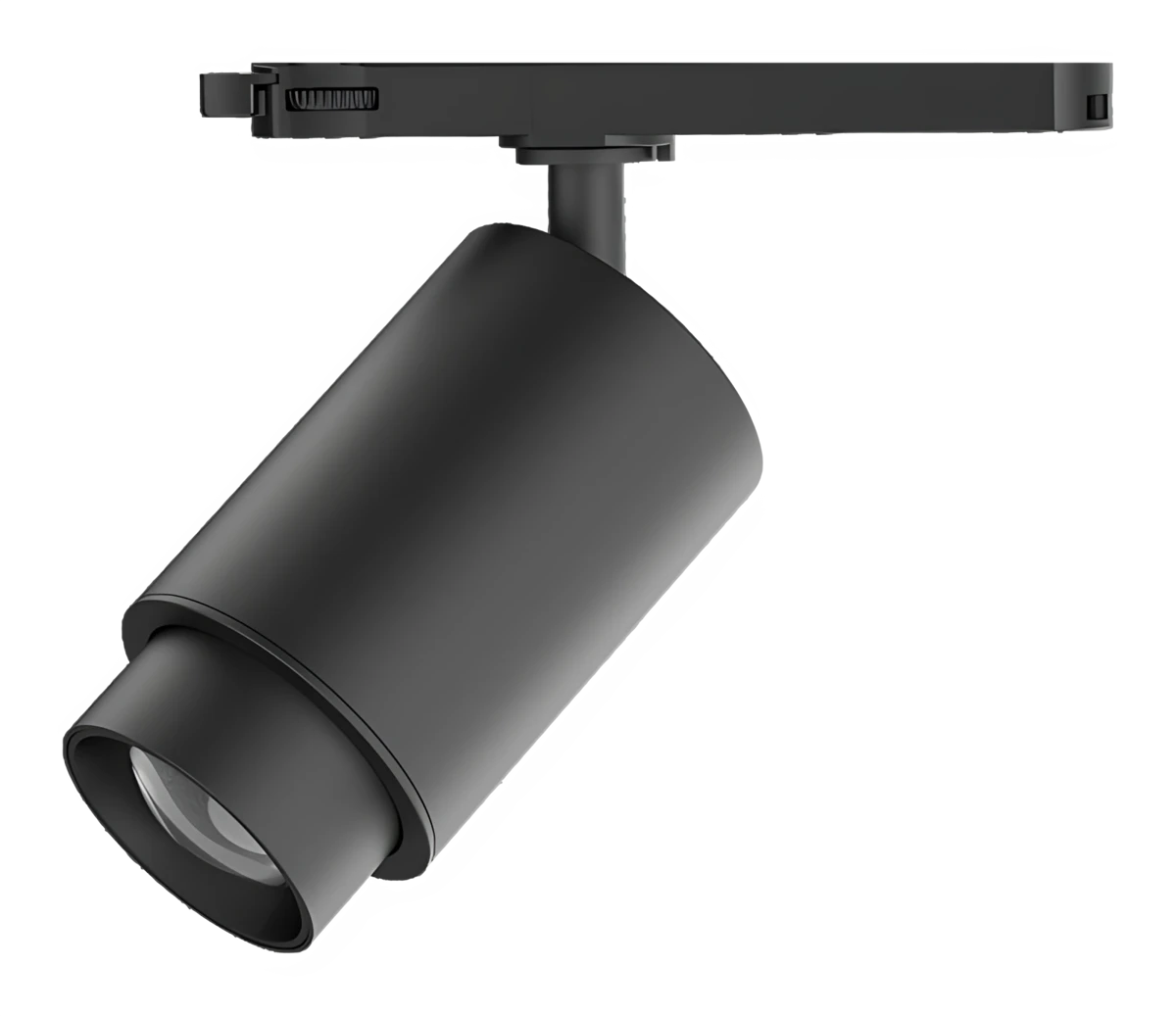

Zoom Track Light S3-4821

Technical specifications

CodeWattCRIFluxSizeBeamCCT
S3-482115 W97 CRI200–800 lmØ71 × 125–168 mm6° 60°3000, 4000 K
LED source
Citizen
Colour temperature
3000, 4000 K
Beam angles
6°, 60°
Control
Triac, Casambi, DALI-2, DALI, 0–10 V
Mounting
Magnetic track
IP rating
IP20
Certifications
CE, RoHS, EMC, LVD

Photometry

S3-4821. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: calculated from catalogue data, not measured.

0°30°60°30°60° 4026680531 cd/klm C0–C180 C90–C270
6°
Power
15 W
Luminous flux
63 lm
Efficacy
4 lm/W
Peak intensity
5,108 cd
Field angle (10%)
10.9°
At 3 m
568 lx, Ø0.31 m
0°30°60°30°60° 430860 cd/klm C0–C180 C90–C270
60°
Power
15 W
Luminous flux
1,130 lm
Efficacy
75 lm/W
Peak intensity
972 cd
Field angle (10%)
109.4°
At 3 m
108 lx, Ø3.46 m

Related products

Track spotlights

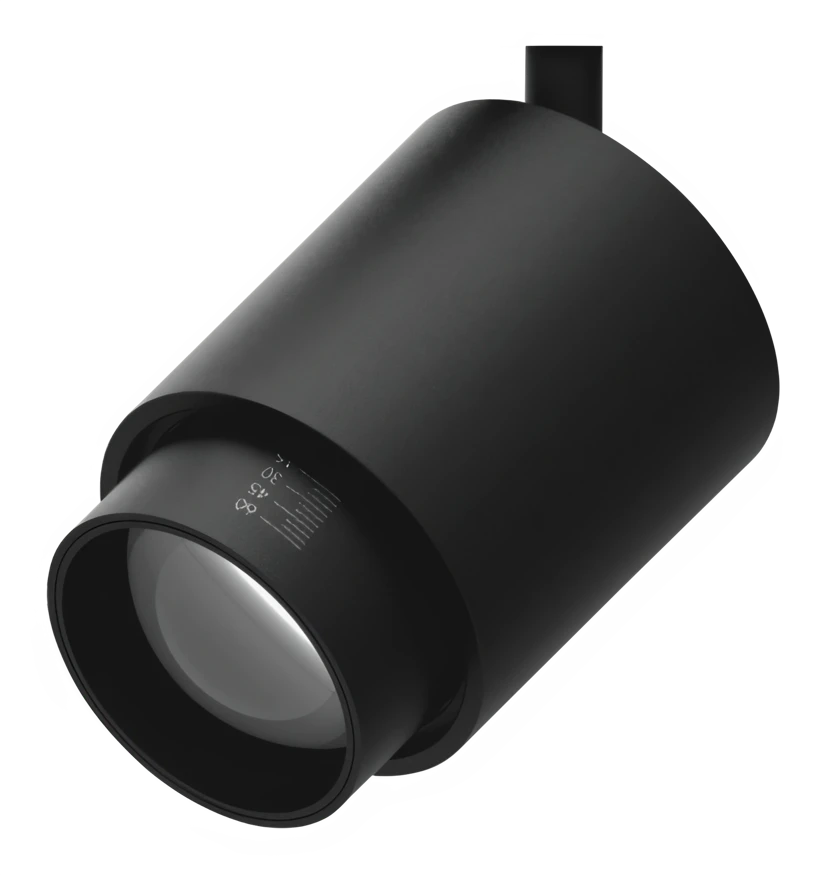

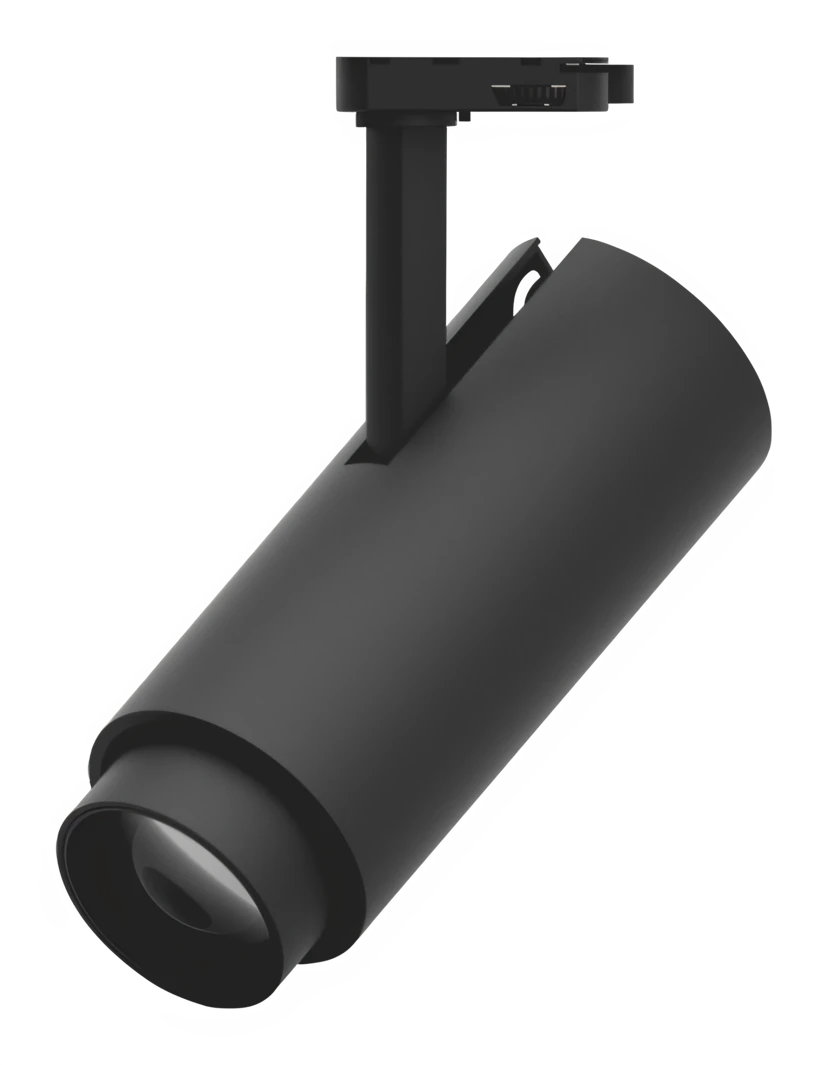

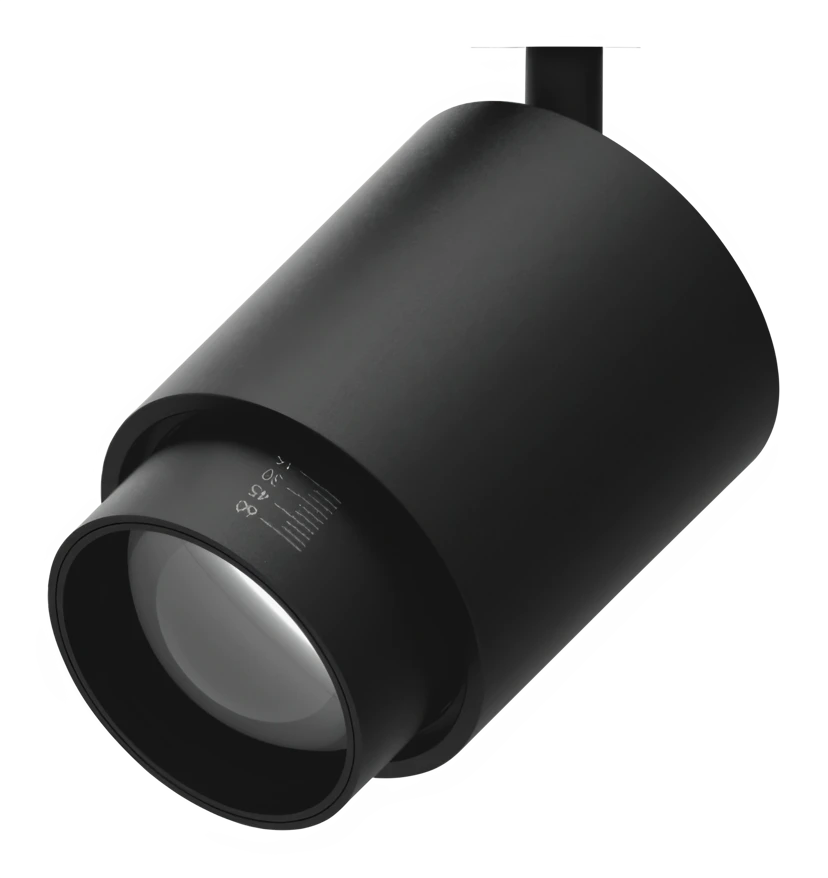

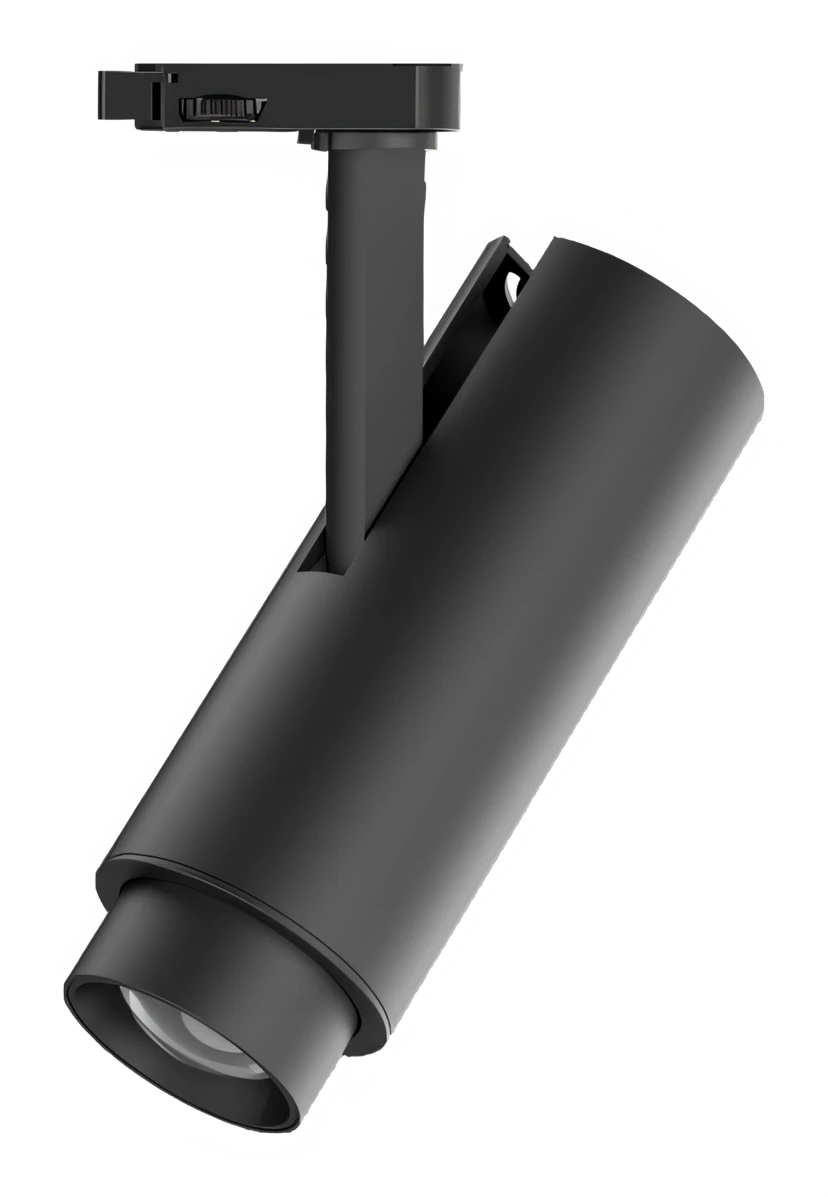

Zoom Track Light S3-4823Zoom Track Light S3-48231 modelZoom Track Light S3-4824Zoom Track Light S3-48241 modelZoom Track Light S3-4822Zoom Track Light S3-48221 modelZoom Track Light S3-4825Zoom Track Light S3-48251 modelZoom Track Light S3-6551Zoom Track Light S3-65511 model
