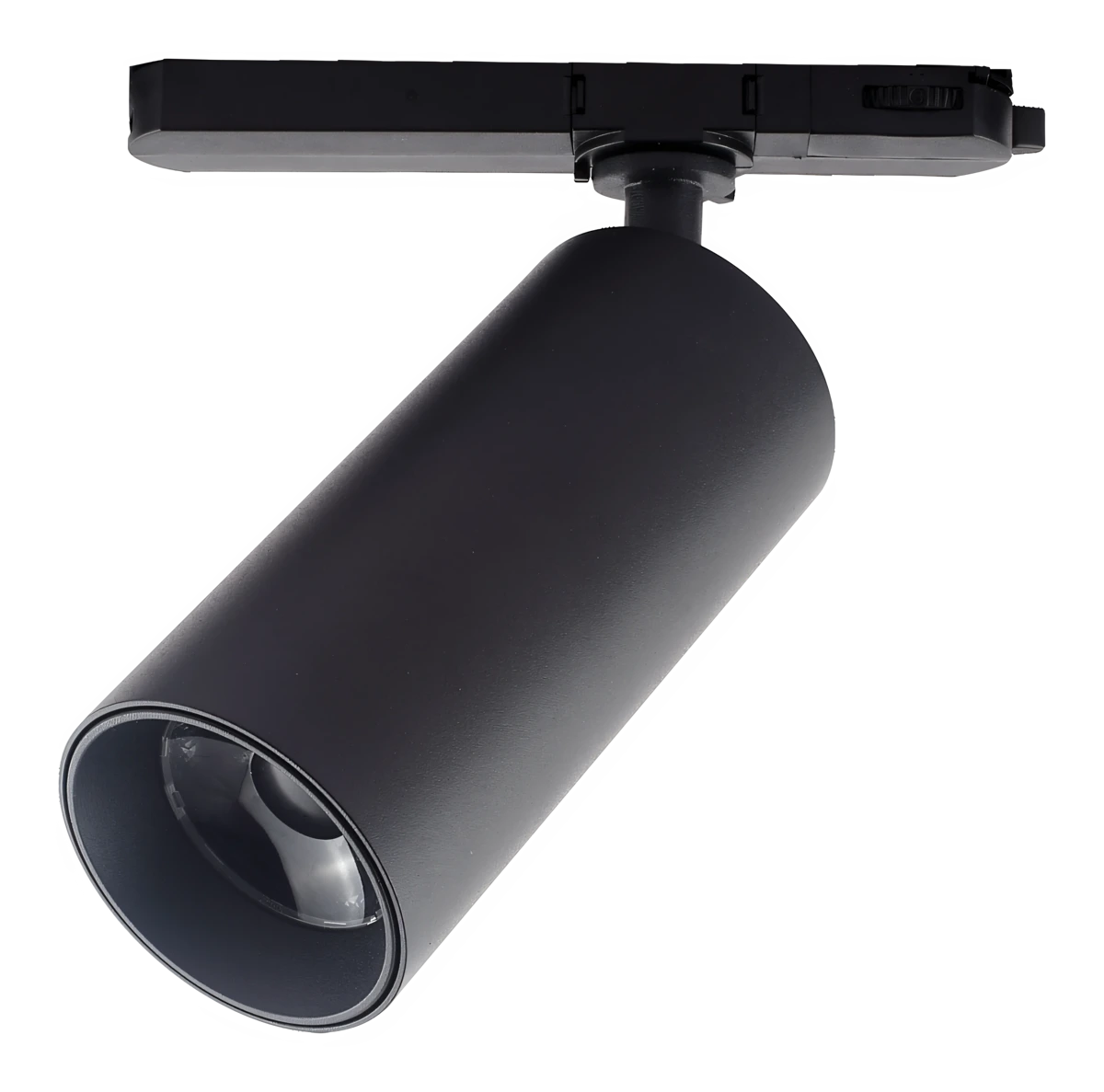

S3-4242

Technical specifications

CodeWattCRIFluxSizeBeamCCT
S3-424224 W97 CRI2200–2400 lm55 × 150 mm15° 24° 36° 50°3000, 4000 K
LED source
Citizen
Colour temperature
3000, 4000 K
Beam angles
15°, 24°, 36°, 50°
Control
Triac, Casambi, DALI, 0–10 V
Mounting
Magnetic track
IP rating
IP20
Certifications
CE, RoHS, EMC, LVD

Photometry

S3-4242. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: calculated from catalogue data, not measured.

0°30°60°30°60° 646512930 cd/klm C0–C180 C90–C270
15°
Power
24 W
Luminous flux
867 lm
Efficacy
36 lm/W
Peak intensity
11,214 cd
Field angle (10%)
27.3°
At 3 m
1,246 lx, Ø0.79 m
0°30°60°30°60° 25425083 cd/klm C0–C180 C90–C270
24°
Power
24 W
Luminous flux
1,464 lm
Efficacy
61 lm/W
Peak intensity
7,444 cd
Field angle (10%)
43.7°
At 3 m
827 lx, Ø1.28 m
0°30°60°30°60° 11452289 cd/klm C0–C180 C90–C270
36°
Power
24 W
Luminous flux
1,832 lm
Efficacy
76 lm/W
Peak intensity
4,194 cd
Field angle (10%)
65.6°
At 3 m
466 lx, Ø1.95 m
0°30°60°30°60° 6071213 cd/klm C0–C180 C90–C270
50°
Power
24 W
Luminous flux
2,200 lm
Efficacy
92 lm/W
Peak intensity
2,669 cd
Field angle (10%)
91.1°
At 3 m
297 lx, Ø2.80 m
