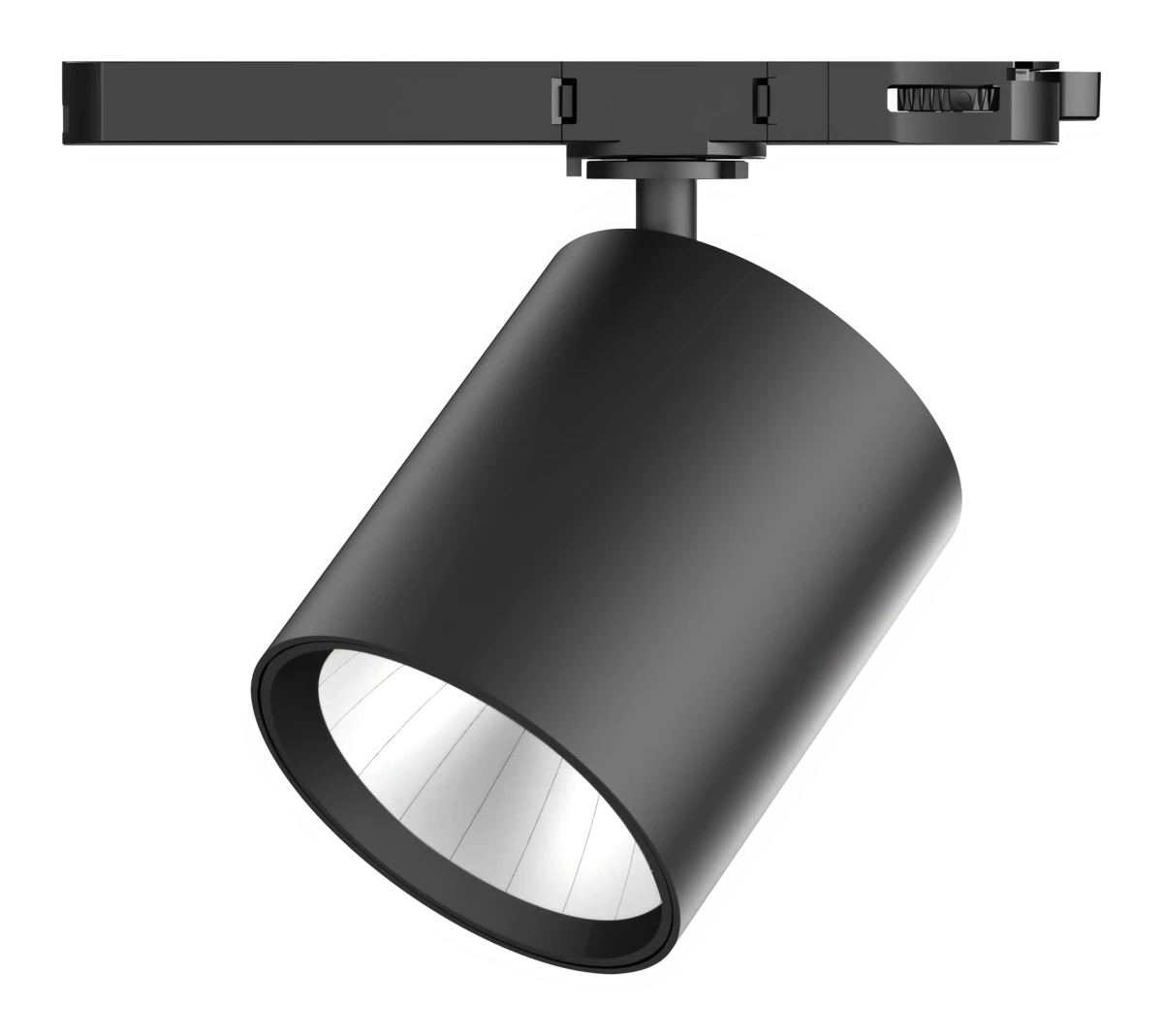

S3-4213G

Technical specifications

CodeWattCRIFluxSizeBeamCCT
S3-4213G40 W97 CRI450–550 lm100 × 120 mm15° 24° 36° 60°3000, 4000 K
LED source
Citizen
Colour temperature
3000, 4000 K
Beam angles
15°, 24°, 36°, 60°
Control
Triac, Casambi, DALI, 0–10 V
Mounting
Magnetic track
IP rating
IP20
Certifications
CE, RoHS, EMC, LVD

Photometry

S3-4213G. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: calculated from catalogue data, not measured.

0°30°60°30°60° 646512930 cd/klm C0–C180 C90–C270
15°
Power
40 W
Luminous flux
2,370 lm
Efficacy
59 lm/W
Peak intensity
30,640 cd
Field angle (10%)
27.3°
At 3 m
3,404 lx, Ø0.79 m
0°30°60°30°60° 25425083 cd/klm C0–C180 C90–C270
24°
Power
40 W
Luminous flux
3,618 lm
Efficacy
90 lm/W
Peak intensity
18,392 cd
Field angle (10%)
43.7°
At 3 m
2,044 lx, Ø1.28 m
0°30°60°30°60° 11452289 cd/klm C0–C180 C90–C270
36°
Power
40 W
Luminous flux
4,059 lm
Efficacy
101 lm/W
Peak intensity
9,291 cd
Field angle (10%)
65.6°
At 3 m
1,032 lx, Ø1.95 m
0°30°60°30°60° 430860 cd/klm C0–C180 C90–C270
60°
Power
40 W
Luminous flux
450 lm
Efficacy
11 lm/W
Peak intensity
387 cd
Field angle (10%)
109.4°
At 3 m
43 lx, Ø3.46 m
