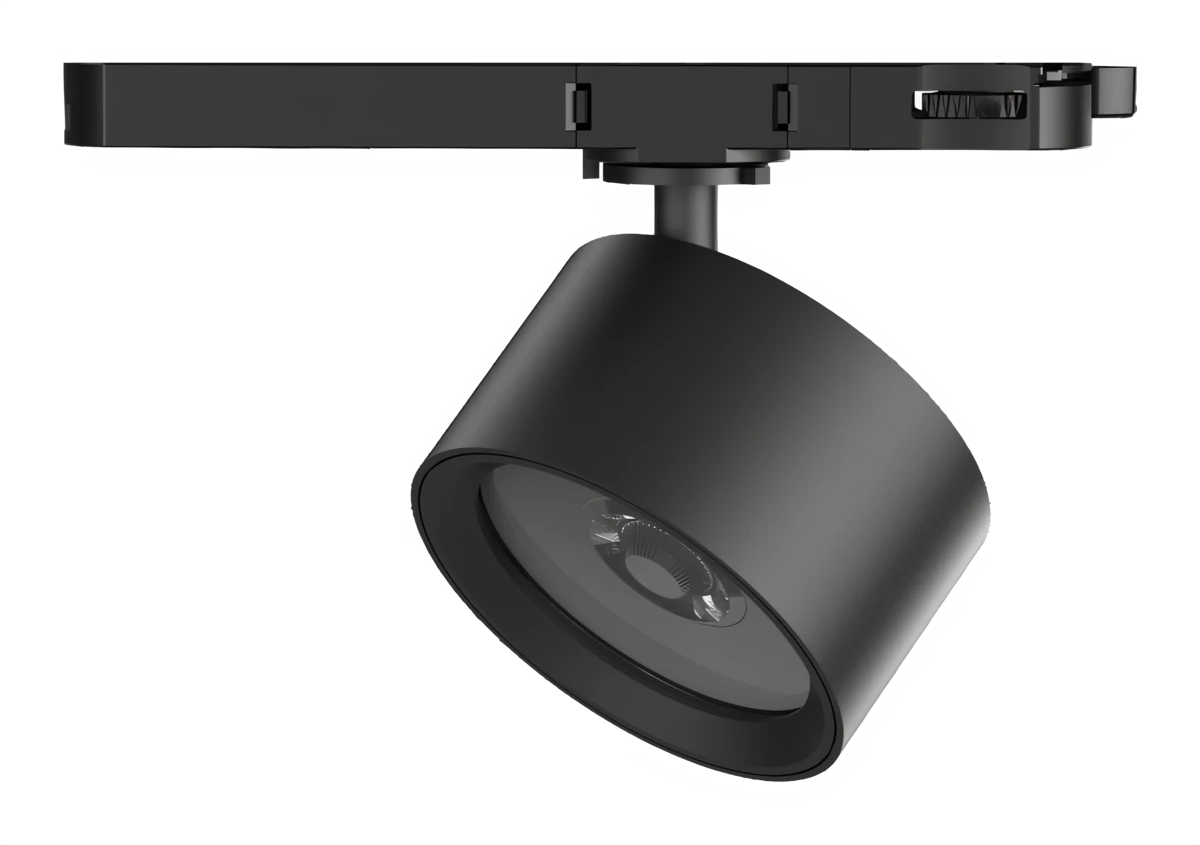

S3-4201

Technical specifications

CodeWattCRIFluxSizeBeamCCT
S3-420112 W97 CRI1100–1300 lm80 × 45 mm15° 24° 36° 60°3000, 4000 K
LED source
Citizen
Colour temperature
3000, 4000 K
Beam angles
15°, 24°, 36°, 60°
Control
Triac, Casambi, DALI, 0–10 V
Mounting
Magnetic track
IP rating
IP20
Certifications
CE, RoHS, EMC, LVD

Photometry

S3-4201. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: calculated from catalogue data, not measured.

0°30°60°30°60° 646512930 cd/klm C0–C180 C90–C270
15°
Power
12 W
Luminous flux
381 lm
Efficacy
32 lm/W
Peak intensity
4,920 cd
Field angle (10%)
27.3°
At 3 m
547 lx, Ø0.79 m
0°30°60°30°60° 25425083 cd/klm C0–C180 C90–C270
24°
Power
12 W
Luminous flux
688 lm
Efficacy
57 lm/W
Peak intensity
3,496 cd
Field angle (10%)
43.7°
At 3 m
388 lx, Ø1.28 m
0°30°60°30°60° 430860 cd/klm C0–C180 C90–C270
60°
Power
12 W
Luminous flux
1,386 lm
Efficacy
115 lm/W
Peak intensity
1,192 cd
Field angle (10%)
109.4°
At 3 m
132 lx, Ø3.46 m
0°30°60°30°60° 11452289 cd/klm C0–C180 C90–C270
36°
Power
12 W
Luminous flux
1,100 lm
Efficacy
92 lm/W
Peak intensity
2,518 cd
Field angle (10%)
65.6°
At 3 m
280 lx, Ø1.95 m
