Technical specifications
| Code | Watt | CRI | Flux | Size | Beam | CCT |
|---|---|---|---|---|---|---|

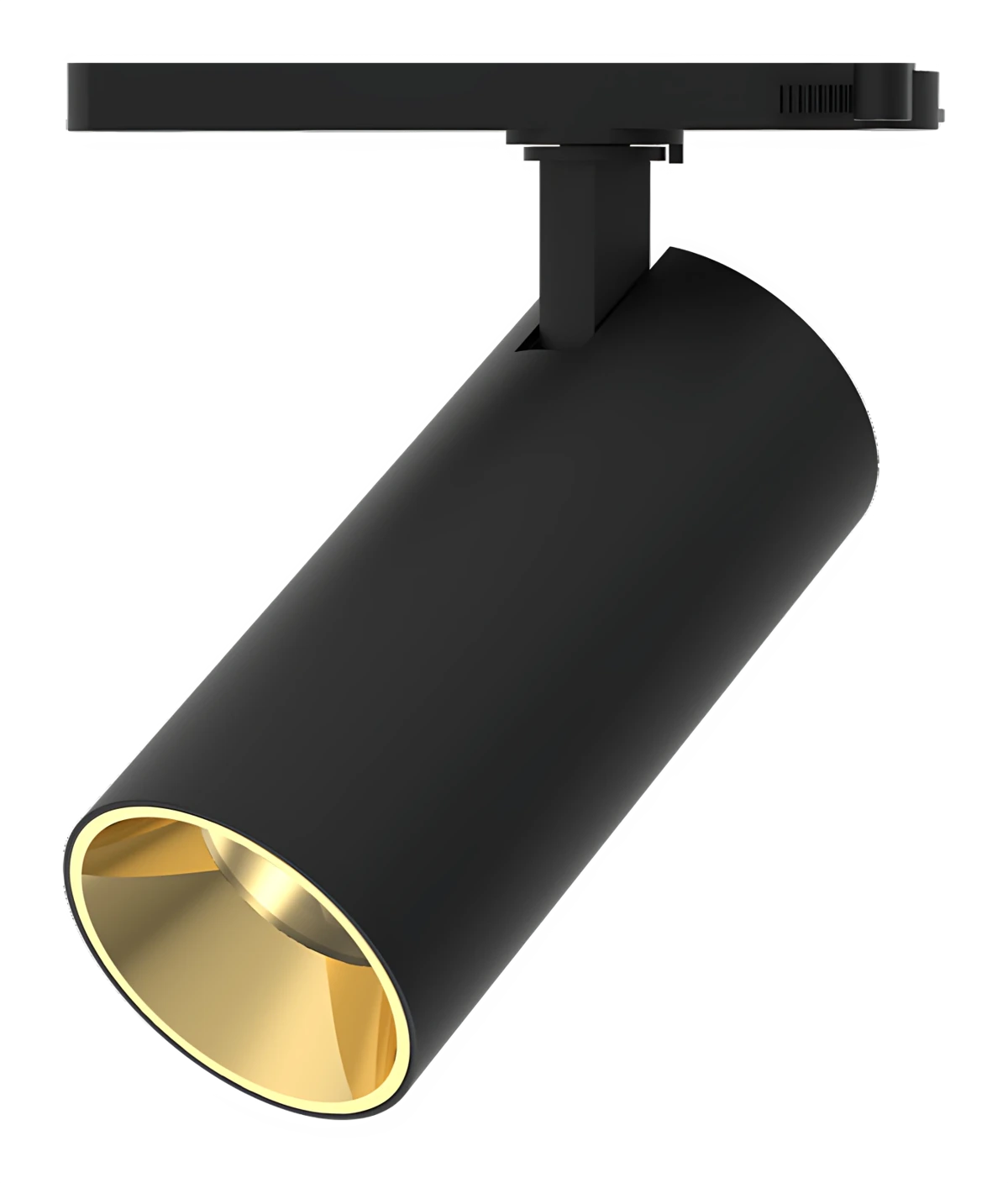

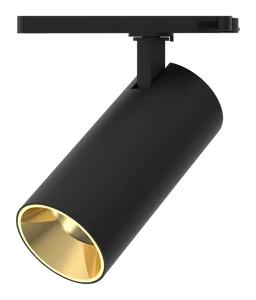

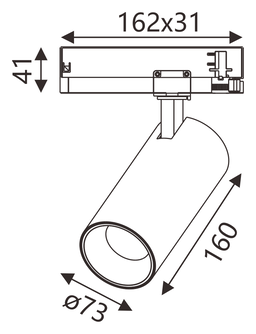

| S3-4095 | 24 W | 97 CRI | 1900–2000 lm | Ø73 × 160 mm | 18° 24° 36° | 3000, 4000 K |
- LED source
- Citizen
- Colour temperature
- 3000, 4000 K
- Beam angles
- 18°, 24°, 36°
- Control
- Triac, Casambi, DALI, 0–10 V
- Mounting
- Magnetic track
- IP rating
- IP20
- Certifications
- CE, RoHS, EMC, LVD
Photometry
S3-4095. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: calculated from catalogue data, not measured.
- Power
- 24 W
- Luminous flux
- 1,056 lm
- Efficacy
- 44 lm/W
- Peak intensity
- 9,500 cd
- Field angle (10%)
- 32.8°
- At 3 m
- 1,056 lx, Ø0.95 m
- Power
- 24 W
- Luminous flux
- 1,656 lm
- Efficacy
- 69 lm/W
- Peak intensity
- 8,420 cd
- Field angle (10%)
- 43.7°
- At 3 m
- 936 lx, Ø1.28 m
- Power
- 24 W
- Luminous flux
- 1,996 lm
- Efficacy
- 83 lm/W
- Peak intensity
- 4,568 cd
- Field angle (10%)
- 65.6°
- At 3 m
- 508 lx, Ø1.95 m
