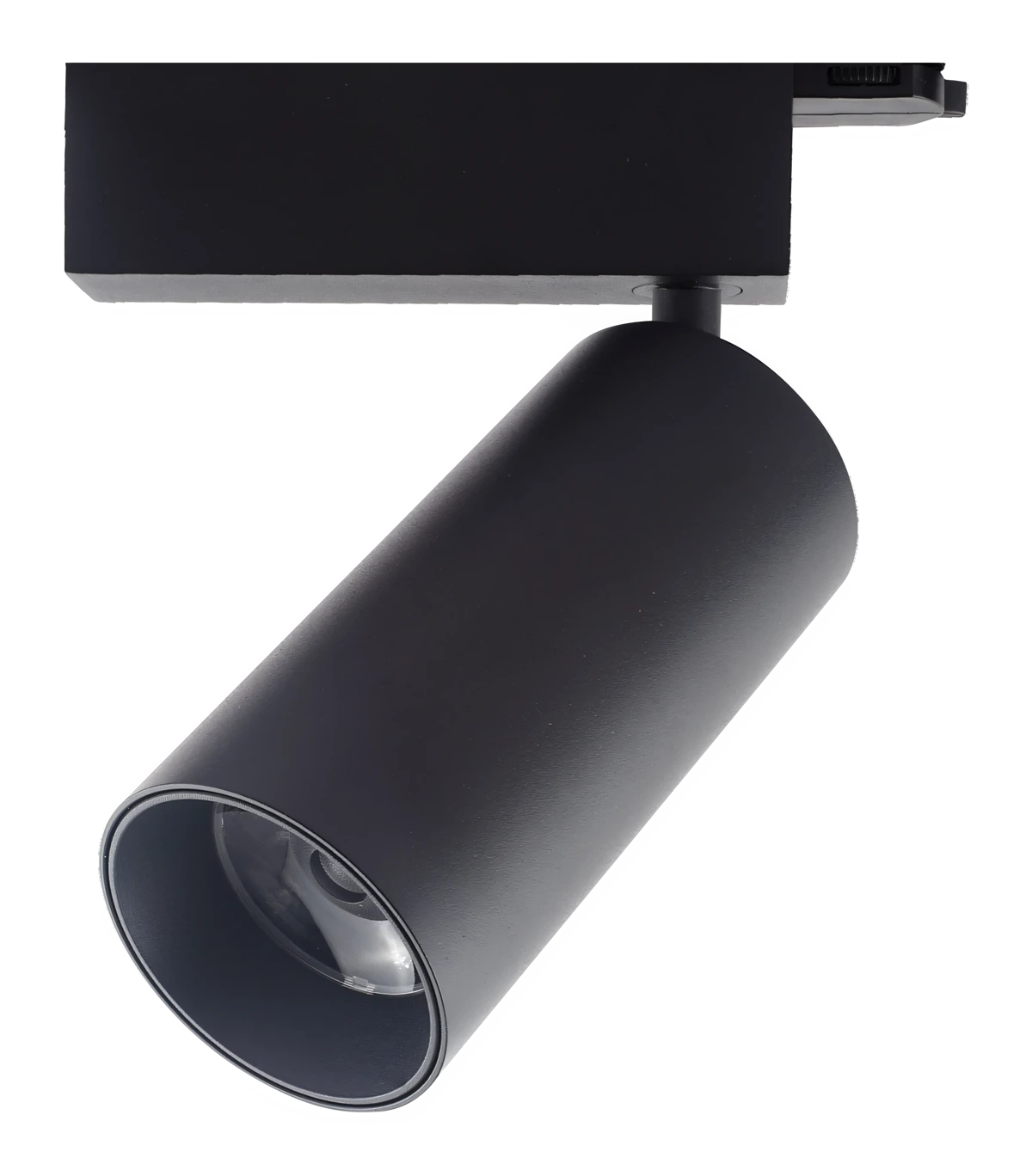

S3-4045N

Technical specifications

CodeWattCRIVoltageFluxSizeBeamCCT
S3-4045N160 × 38 adapter28 W97 CRI220–240 V AC2600–2800 lmØ73 × 140 mm10° 15° 24° 36° 50°3000, 4000 K
LED source
Citizen
Colour temperature
3000, 4000 K
Beam angles
10°, 15°, 24°, 36°, 50°
Control
On/Off, Triac, Casambi, DALI, 0–10 V
Mounting
Magnetic track
IP rating
IP20
Certifications
CE, RoHS, EMC, LVD

Photometry

S3-4045N. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: calculated from catalogue data, not measured.

0°30°60°30°60° 646512930 cd/klm C0–C180 C90–C270
15°
Power
28 W
Luminous flux
832 lm
Efficacy
30 lm/W
Peak intensity
10,760 cd
Field angle (10%)
27.3°
At 3 m
1,196 lx, Ø0.79 m
0°30°60°30°60° 25425083 cd/klm C0–C180 C90–C270
24°
Power
28 W
Luminous flux
1,597 lm
Efficacy
57 lm/W
Peak intensity
8,120 cd
Field angle (10%)
43.7°
At 3 m
902 lx, Ø1.28 m
0°30°60°30°60° 11452289 cd/klm C0–C180 C90–C270
36°
Power
28 W
Luminous flux
2,027 lm
Efficacy
72 lm/W
Peak intensity
4,640 cd
Field angle (10%)
65.6°
At 3 m
516 lx, Ø1.95 m
0°30°60°30°60° 1451329025 cd/klm C0–C180 C90–C270
10°
Power
28 W
Luminous flux
2,600 lm
Efficacy
93 lm/W
Peak intensity
75,466 cd
Field angle (10%)
18.2°
At 3 m
8,385 lx, Ø0.53 m
