Technical specifications
| Code | Watt | CRI | Flux | Size | CCT |
|---|---|---|---|---|---|

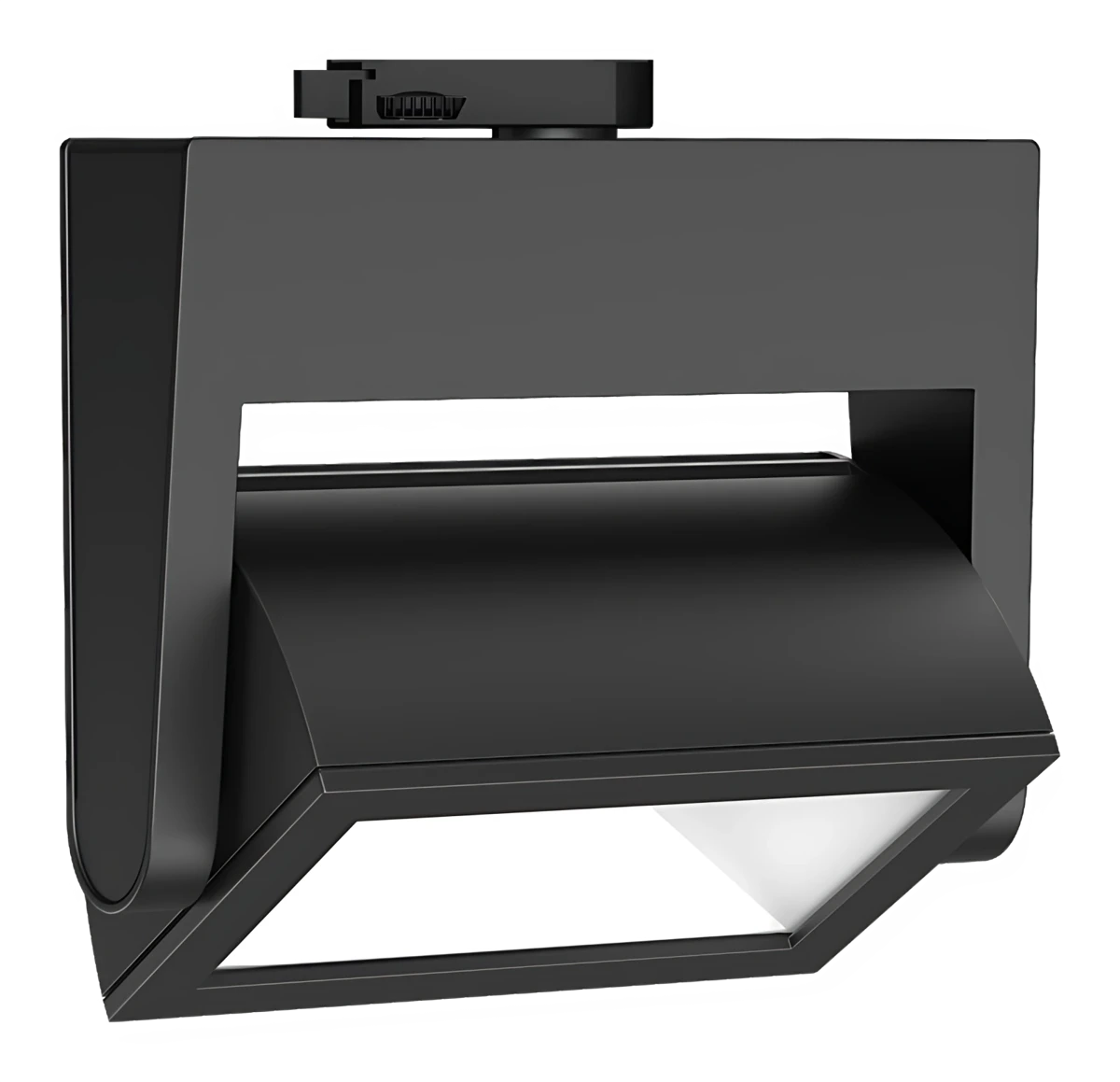

| S3-2019G90° × 70° | 43 W | 97 CRI | 4400–4500 lm | Height 164 mm; 215 × 60 mm (top); head 180 × 115 mm | 3000, 4000 K |
- LED source
- Citizen
- Colour temperature
- 3000, 4000 K
- Control
- Triac, Casambi, DALI-2, 0–10 V
- Mounting
- Magnetic track
- IP rating
- IP20
- Certifications
- CE, RoHS, EMC, LVD
Photometry
S3-2019G. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: calculated from catalogue data, not measured.
- Power
- 43 W
- Luminous flux
- 4,400 lm
- Efficacy
- 102 lm/W
- Peak intensity
- 1,401 cd
- Field angle (10%)
- 168.5°
- At 3 m
- 156 lx, Ø10.39 m
