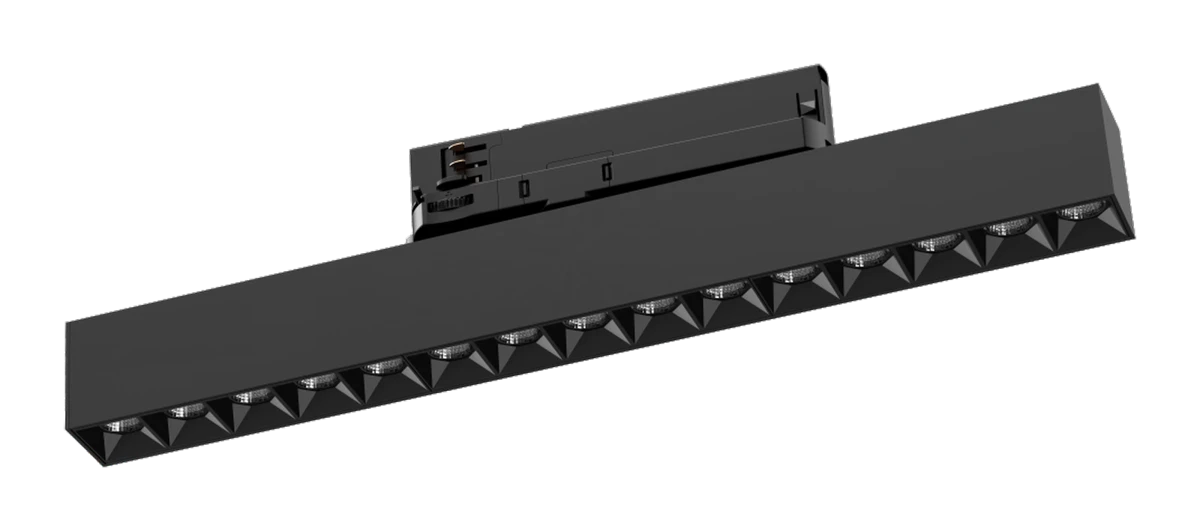

S3-1115

Technical specifications

CodeWattCRIFluxSizeBeamCCT
S3-1115Reflector25 W97 CRI2400–2500 lm402 × 46 × 34 mm15° 24° 36° 50°3000, 4000 K
LED source
Citizen
Colour temperature
3000, 4000 K
Beam angles
15°, 24°, 36°, 50°
Control
Triac, Casambi, DALI, 0–10 V
Mounting
Magnetic track
IP rating
IP20
Certifications
CE, RoHS, EMC, LVD

Photometry

S3-1115. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: calculated from catalogue data, not measured.

0°30°60°30°60° 646512930 cd/klm C0–C180 C90–C270
15°
Power
25 W
Luminous flux
808 lm
Efficacy
32 lm/W
Peak intensity
10,448 cd
Field angle (10%)
27.3°
At 3 m
1,161 lx, Ø0.79 m
0°30°60°30°60° 11452289 cd/klm C0–C180 C90–C270
36°
Power
25 W
Luminous flux
1,644 lm
Efficacy
66 lm/W
Peak intensity
3,764 cd
Field angle (10%)
65.6°
At 3 m
418 lx, Ø1.95 m
0°30°60°30°60° 7431485 cd/klm C0–C180 C90–C270
45°
Power
25 W
Luminous flux
2,554 lm
Efficacy
102 lm/W
Peak intensity
3,792 cd
Field angle (10%)
82°
At 3 m
421 lx, Ø2.49 m
0°30°60°30°60° 25425083 cd/klm C0–C180 C90–C270
24°
Power
25 W
Luminous flux
2,400 lm
Efficacy
96 lm/W
Peak intensity
12,200 cd
Field angle (10%)
43.7°
At 3 m
1,356 lx, Ø1.28 m
