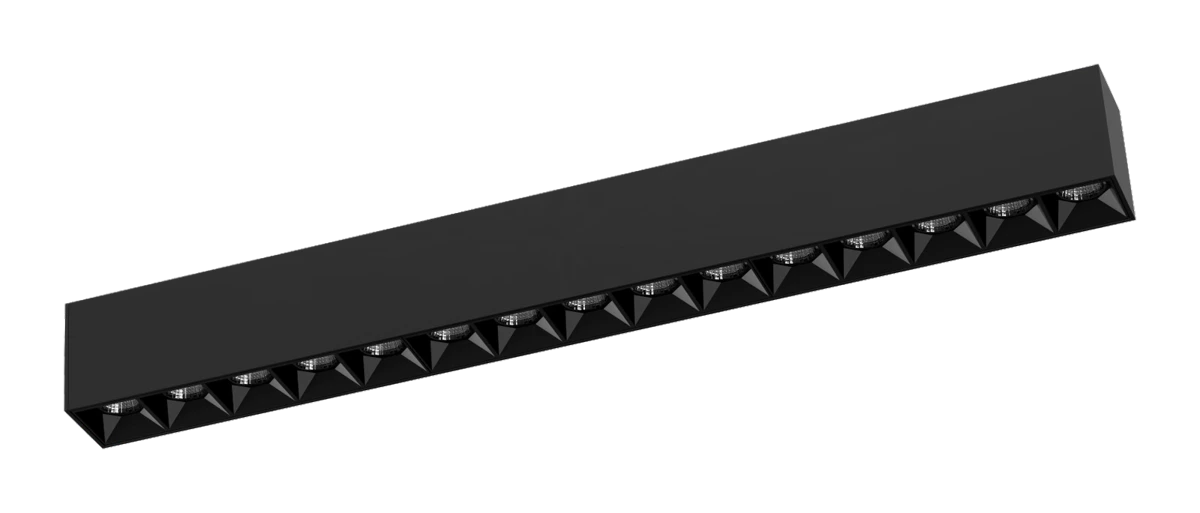

S3-1110H

Technical specifications

CodeWattCRIFluxSizeBeamCCT
S3-1110HLens16 W97 CRI1500–1600 lm269 × 46 × 34 mm15° 24° 36° 50°3000, 4000 K
LED source
Citizen
Colour temperature
3000, 4000 K
Beam angles
15°, 24°, 36°, 50°
Control
Triac, Casambi, DALI, 0–10 V
Mounting
Magnetic track
IP rating
IP20
Certifications
CE, RoHS, EMC, LVD

Photometry

S3-1110H. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: calculated from catalogue data, not measured.

0°30°60°30°60° 646512930 cd/klm C0–C180 C90–C270
15°
Power
16 W
Luminous flux
775 lm
Efficacy
48 lm/W
Peak intensity
10,024 cd
Field angle (10%)
27.3°
At 3 m
1,114 lx, Ø0.79 m
0°30°60°30°60° 25425083 cd/klm C0–C180 C90–C270
24°
Power
16 W
Luminous flux
787 lm
Efficacy
49 lm/W
Peak intensity
4,000 cd
Field angle (10%)
43.7°
At 3 m
444 lx, Ø1.28 m
0°30°60°30°60° 6071213 cd/klm C0–C180 C90–C270
50°
Power
16 W
Luminous flux
1,284 lm
Efficacy
80 lm/W
Peak intensity
1,557 cd
Field angle (10%)
91.1°
At 3 m
173 lx, Ø2.80 m
0°30°60°30°60° 11452289 cd/klm C0–C180 C90–C270
36°
Power
16 W
Luminous flux
1,500 lm
Efficacy
94 lm/W
Peak intensity
3,434 cd
Field angle (10%)
65.6°
At 3 m
382 lx, Ø1.95 m
