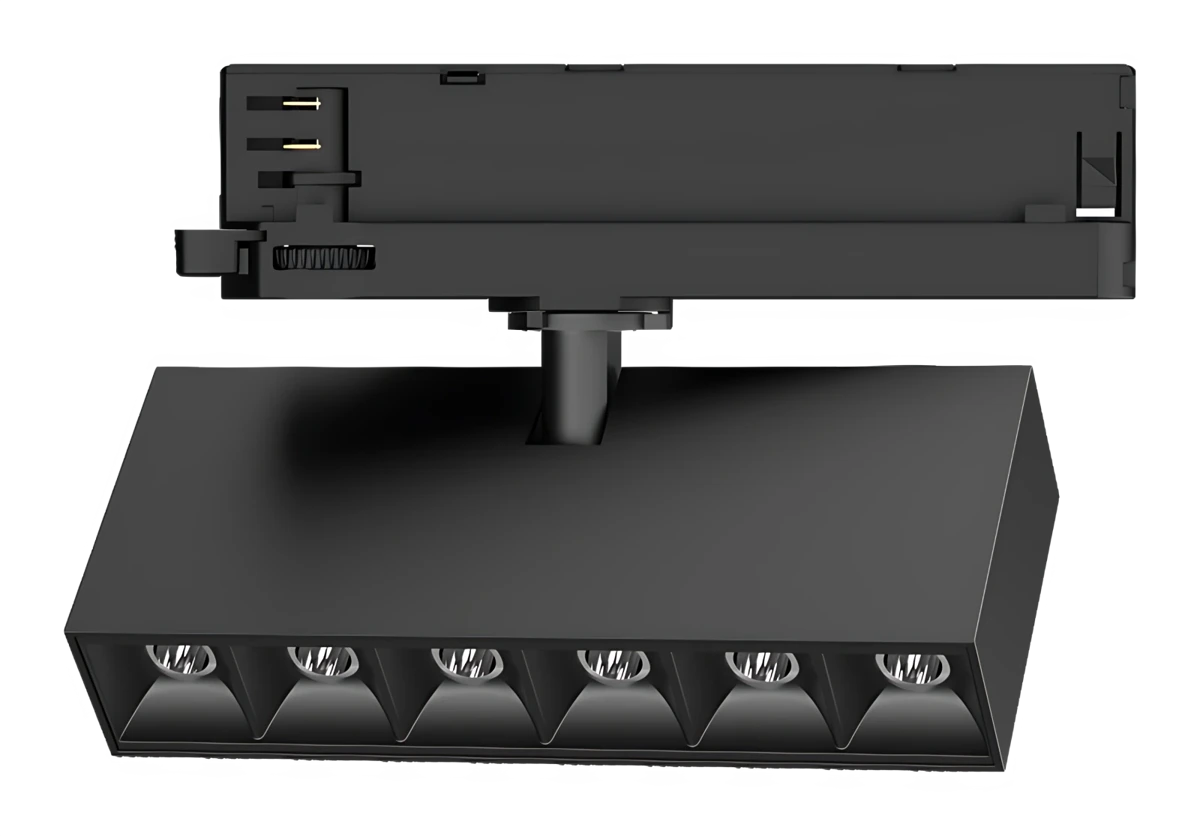

S3-1106

Technical specifications

CodeWattCRIFluxSizeBeamCCT
S3-110610 W97 CRI900–1000 lm163 × 65 × 33 mm12° 24° 36° 50°3000, 4000 K
LED source
Citizen
Colour temperature
3000, 4000 K
Beam angles
12°, 24°, 36°, 50°
Control
Triac, Casambi, DALI, 0–10 V
Mounting
Magnetic track
IP rating
IP20
Certifications
CE, RoHS, EMC, LVD

Photometry

S3-1106. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: calculated from catalogue data, not measured.

0°30°60°30°60° 1008720173 cd/klm C0–C180 C90–C270
12°
Power
10 W
Luminous flux
283 lm
Efficacy
28 lm/W
Peak intensity
5,706 cd
Field angle (10%)
21.9°
At 3 m
634 lx, Ø0.63 m
0°30°60°30°60° 12802560 cd/klm C0–C180 C90–C270
34°
Power
10 W
Luminous flux
855 lm
Efficacy
85 lm/W
Peak intensity
2,188 cd
Field angle (10%)
62°
At 3 m
243 lx, Ø1.83 m
0°30°60°30°60° 6561311 cd/klm C0–C180 C90–C270
48°
Power
10 W
Luminous flux
1,342 lm
Efficacy
134 lm/W
Peak intensity
1,760 cd
Field angle (10%)
87.5°
At 3 m
196 lx, Ø2.67 m
0°30°60°30°60° 25425083 cd/klm C0–C180 C90–C270
24°
Power
10 W
Luminous flux
900 lm
Efficacy
90 lm/W
Peak intensity
4,575 cd
Field angle (10%)
43.7°
At 3 m
508 lx, Ø1.28 m
