Technical specifications
| Code | Watt | CRI | Flux | Size | Beam | CCT |
|---|---|---|---|---|---|---|

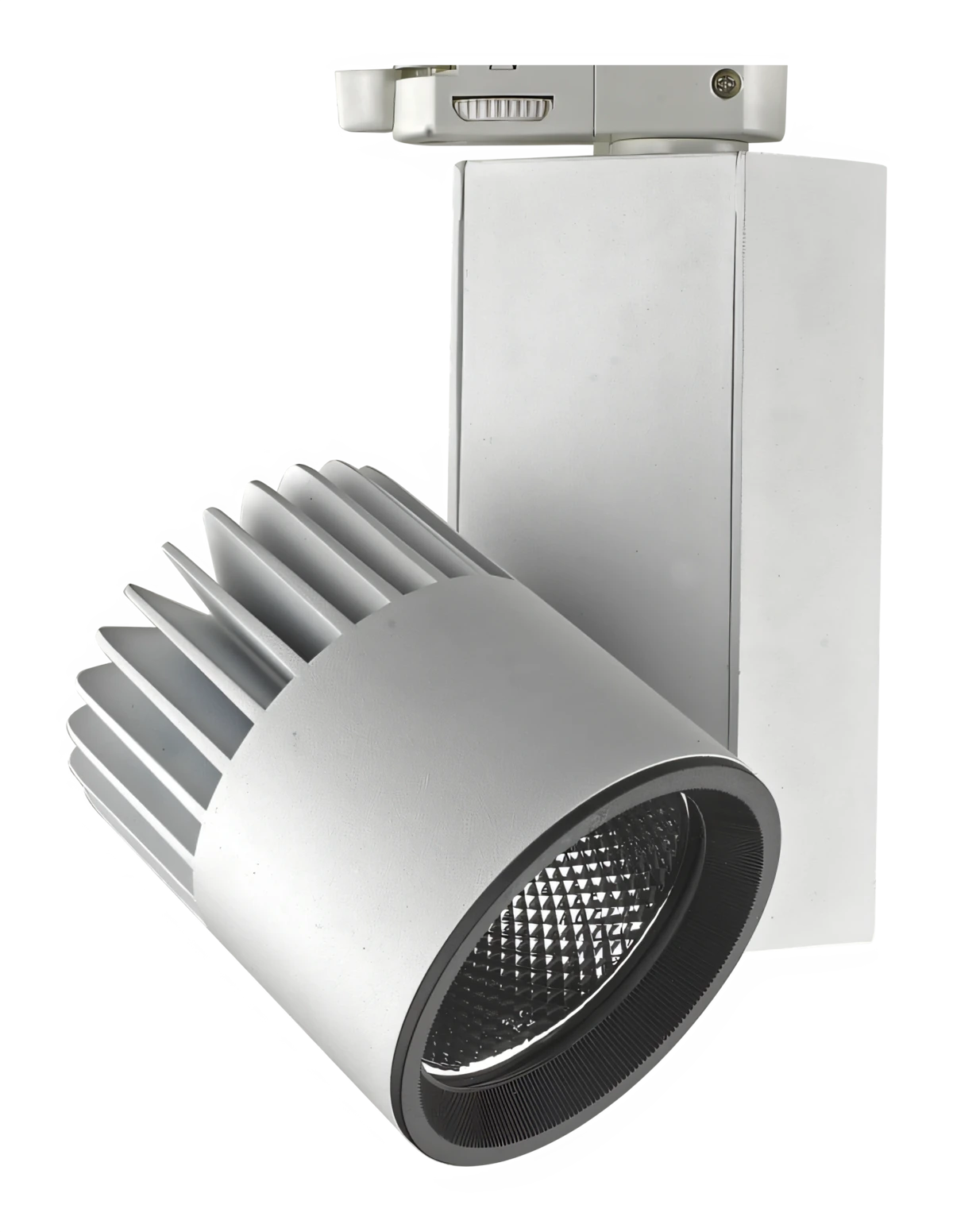

| S3-1050 | 28 W | 97 CRI | 2600–2900 lm | Ø85 × 86 mm, height 140 mm | 12° 24° 45° 55° | 3000, 4000 K |
| S3-5025 | 35 W | 97 CRI | 3400–3700 lm | Ø95 × 108 mm, height 145 mm | 15° 30° 40° 55° | 3000, 4000 K |
| S3-5004S | 50 W | 97 CRI | 4700–4800 lm | Ø106 × 112 mm, height 150 mm | 12° 30° 36° 45° 60° | 3000, 4000 K |
- LED source
- Citizen
- Colour temperature
- 3000, 4000 K
- Beam angles
- 12°, 15°, 24°, 30°, 36°, 40°, 45°, 55°, 60°
- Control
- Triac, Casambi, DALI-2, 0–10 V
- Mounting
- Magnetic track
- IP rating
- IP20
- Certifications
- CE, RoHS, EMC, LVD
Photometry
S3-5004S. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: calculated from catalogue data, not measured.
- Power
- 50 W
- Luminous flux
- 821 lm
- Efficacy
- 16 lm/W
- Peak intensity
- 10,616 cd
- Field angle (10%)
- 27.3°
- At 3 m
- 1,180 lx, Ø0.79 m
- Power
- 50 W
- Luminous flux
- 5,160 lm
- Efficacy
- 103 lm/W
- Peak intensity
- 7,660 cd
- Field angle (10%)
- 82°
- At 3 m
- 851 lx, Ø2.49 m
- Power
- 50 W
- Luminous flux
- 5,077 lm
- Efficacy
- 102 lm/W
- Peak intensity
- 4,368 cd
- Field angle (10%)
- 109.4°
- At 3 m
- 485 lx, Ø3.46 m
- Power
- 50 W
- Luminous flux
- 4,700 lm
- Efficacy
- 94 lm/W
- Peak intensity
- 94,811 cd
- Field angle (10%)
- 21.9°
- At 3 m
- 10,535 lx, Ø0.63 m
