Technical specifications
| Code | Watt | CRI | Flux | Size | Beam | CCT |
|---|---|---|---|---|---|---|

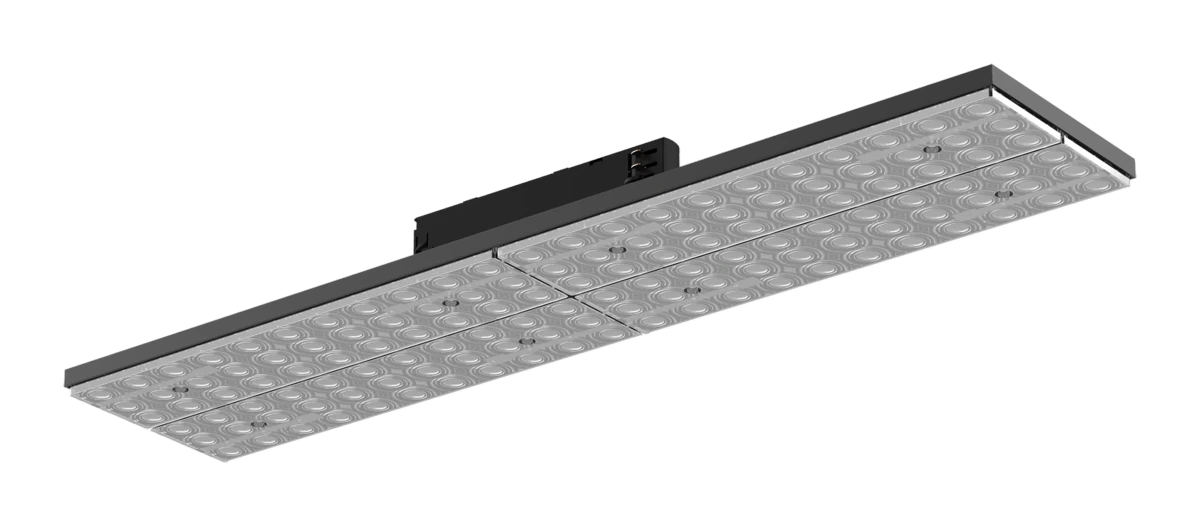

| S3-0066 | 40 W | 97 CRI | 5400–5500 lm | 575 × 125 × 15 mm | 60° 90° | 3000, 4000 K |
- LED source
- Citizen
- Colour temperature
- 3000, 4000 K
- Beam angles
- 60°, 90°
- Control
- Triac, Casambi, DALI, 0–10 V
- Mounting
- Magnetic track
- IP rating
- IP20
- Certifications
- CE, RoHS, EMC, LVD
Photometry
S3-0066. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: calculated from catalogue data, not measured.
- Power
- 40 W
- Luminous flux
- 4,133 lm
- Efficacy
- 103 lm/W
- Peak intensity
- 3,556 cd
- Field angle (10%)
- 109.4°
- At 3 m
- 395 lx, Ø3.46 m
- Power
- 40 W
- Luminous flux
- 5,400 lm
- Efficacy
- 135 lm/W
- Peak intensity
- 2,325 cd
- Field angle (10%)
- 164°
- At 3 m
- 258 lx, Ø6.00 m
