Technical specifications

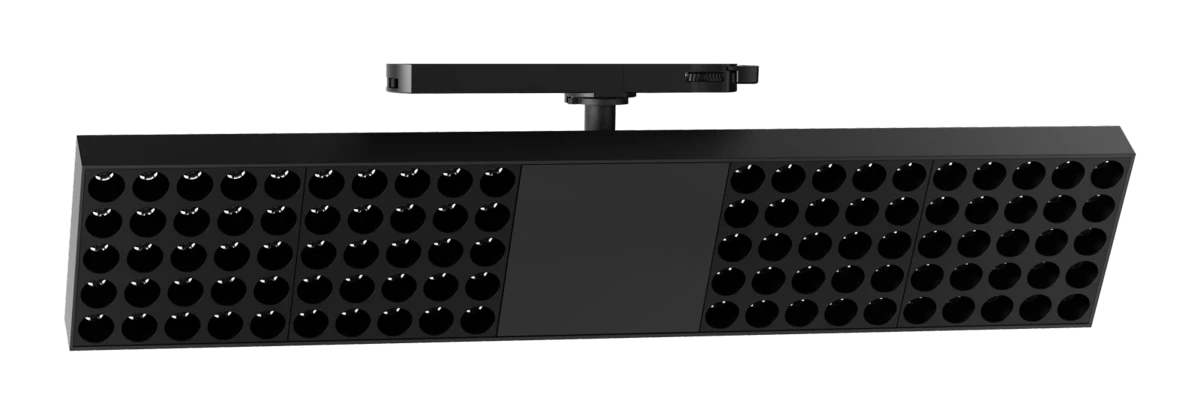

| Code | Watt | CRI | Flux | Size | Beam | CCT |
|---|---|---|---|---|---|---|
| S3-0011 | 43 W | 97 CRI | 4300 lm | L396 x W100 mm | 24° 36° | 3000, 4000 K |
- LED source
- Citizen
- Colour temperature
- 3000, 4000 K
- Beam angles
- 24°, 36°
- Control
- Triac, Casambi, DALI, 0–10 V
- Mounting
- Magnetic track
- IP rating
- IP20
- Certifications
- CE, RoHS, EMC, LVD
Photometry
S3-0011. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: calculated from catalogue data, not measured.
- Power
- 43 W
- Luminous flux
- 1,918 lm
- Efficacy
- 45 lm/W
- Peak intensity
- 9,748 cd
- Field angle (10%)
- 43.7°
- At 3 m
- 1,083 lx, Ø1.28 m
- Power
- 43 W
- Luminous flux
- 3,142 lm
- Efficacy
- 73 lm/W
- Peak intensity
- 7,192 cd
- Field angle (10%)
- 65.6°
- At 3 m
- 799 lx, Ø1.95 m
