Technical specifications
| Code | Watt | CRI | Voltage | Flux | Size | Beam | CCT | Notes |
|---|---|---|---|---|---|---|---|---|

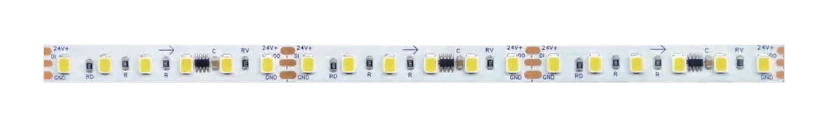

| OL-W2NF24120T09-8A3014.4 W, 120 LED/m, 24 V, RGB | 14.4 W | 97 CRI | 24 V | R 125 / m, G 355 / m, B 80 / m, RGB 525 lm/m | W8 x T1.3 mm | 125.9° | 4000 K | Power per metre |
- LED source
- Citizen
- Colour temperature
- 4000 K
- Beam angles
- 125.9°
- Mounting
- Recessed
- IP rating
- IP20
- Certifications
- CE, RoHS, UL, ErP
Photometry
OL-W2NF24120T09-8A30. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: calculated from catalogue data, not measured.
- Power
- 14.4 W
- Luminous flux
- 537 lm
- Efficacy
- 37 lm/W
- Peak intensity
- 152 cd
- At 3 m
- 17 lx, Ø11.75 m
