Technical specifications
| Code | Watt | CRI | Voltage | Flux | Size | CCT | Cut-out | Notes |
|---|---|---|---|---|---|---|---|---|

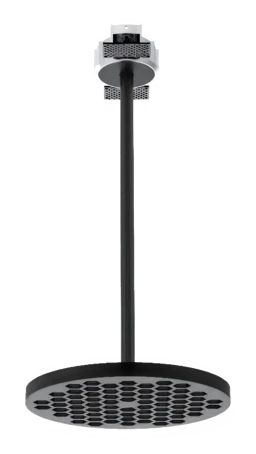

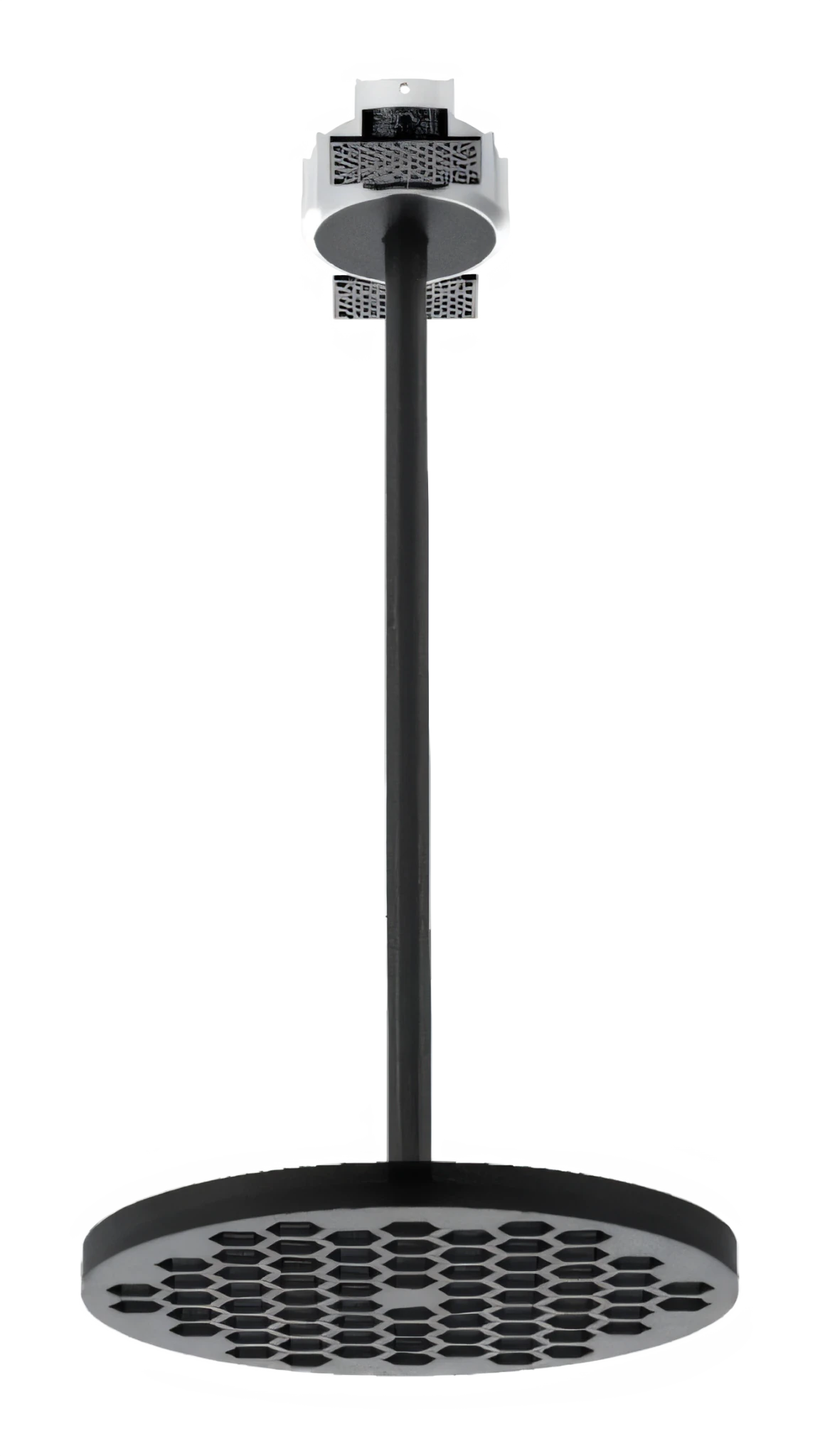

| DL1975Large grid head | 22 W | 97 CRI | max 36 V | 3586 lm | Head Ø184 × 13 mm; length 374 mm; body Ø55 × 40 mm; flange 115 mm | 2700, 3000, 4000 K | Ø68 mm | 500 mA |
| DL1998Flat disc head | 8 W | 97 CRI | max 24 V | 630 lm | Head Ø85 × 16 mm; length 328 mm; body Ø50 × 30 mm | 2700, 3000, 4000 K | Ø45 mm | 350 mA |
| DL1999Dome head | 8 W | 97 CRI | max 24 V | 630 lm | Head Ø85 × 31 mm (dome); length 343 mm; body Ø50 × 30 mm | 2700, 3000, 4000 K | Ø45 mm | 350 mA |
- LED source
- Citizen
- Colour temperature
- 2700, 3000, 4000 K
- Mounting
- Recessed
- IP rating
- IP20
- Certifications
- CE
Photometry
DL1975. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: calculated from catalogue data, not measured.
- Power
- 22 W
- Luminous flux
- 3,586 lm
- Efficacy
- 163 lm/W
- Peak intensity
- 1,141 cd
- Field angle (10%)
- 168.5°
- At 3 m
- 127 lx, Ø10.39 m
