ENIT

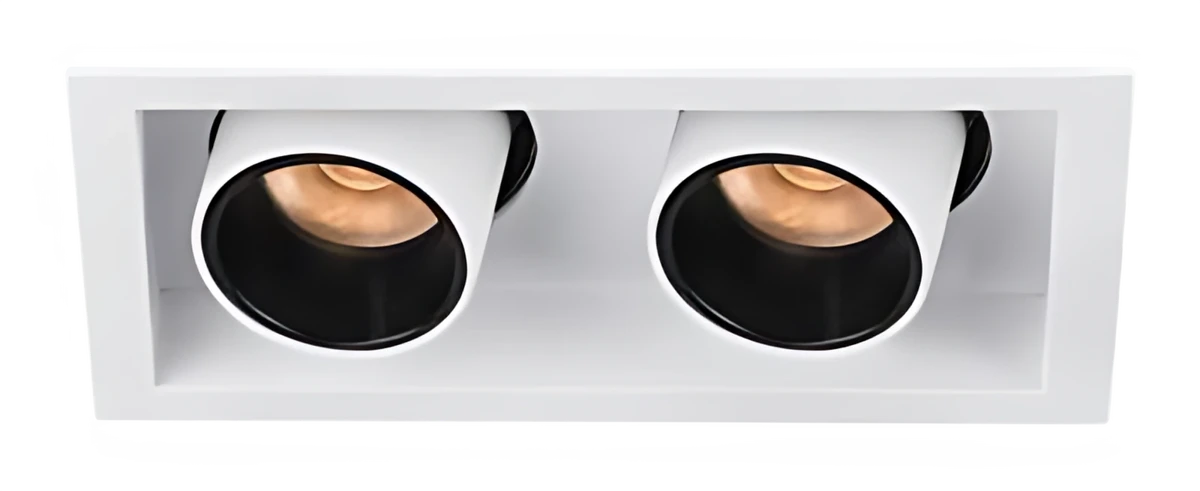

Robo DL1559

Technical specifications

CodeWattCRIVoltageFluxSizeBeamCCTCut-outNotes
DL15592 heads10 W97 CRI2 × max 19 V2 × 450 lm115 × 62 x H63 mm15° 24° 38° 60°2700, 3000, 4000 KØ108 mm250 mA; Power per head
LED source
Citizen
Colour temperature
2700, 3000, 4000 K
Beam angles
15°, 24°, 38°, 60°
Mounting
Recessed
IP rating
IP20
Certifications
CE

Photometry

DL1559. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: calculated from catalogue data, not measured.

0°30°60°30°60° 646512930 cd/klm C0–C180 C90–C270
15°
Power
10 W
Luminous flux
900 lm
Efficacy
90 lm/W
Peak intensity
11,637 cd
Field angle (10%)
27.3°
At 3 m
1,293 lx, Ø0.79 m
0°30°60°30°60° 25425083 cd/klm C0–C180 C90–C270
24°
Power
10 W
Luminous flux
900 lm
Efficacy
90 lm/W
Peak intensity
4,575 cd
Field angle (10%)
43.7°
At 3 m
508 lx, Ø1.28 m
0°30°60°30°60° 10302060 cd/klm C0–C180 C90–C270
38°
Power
10 W
Luminous flux
900 lm
Efficacy
90 lm/W
Peak intensity
1,854 cd
Field angle (10%)
69.3°
At 3 m
206 lx, Ø2.07 m
0°30°60°30°60° 430860 cd/klm C0–C180 C90–C270
60°
Power
10 W
Luminous flux
900 lm
Efficacy
90 lm/W
Peak intensity
774 cd
Field angle (10%)
109.4°
At 3 m
86 lx, Ø3.46 m
