Technical specifications
| Code | Watt | CRI | Voltage | Flux | Size | Beam | CCT | Cut-out | Notes |
|---|---|---|---|---|---|---|---|---|---|

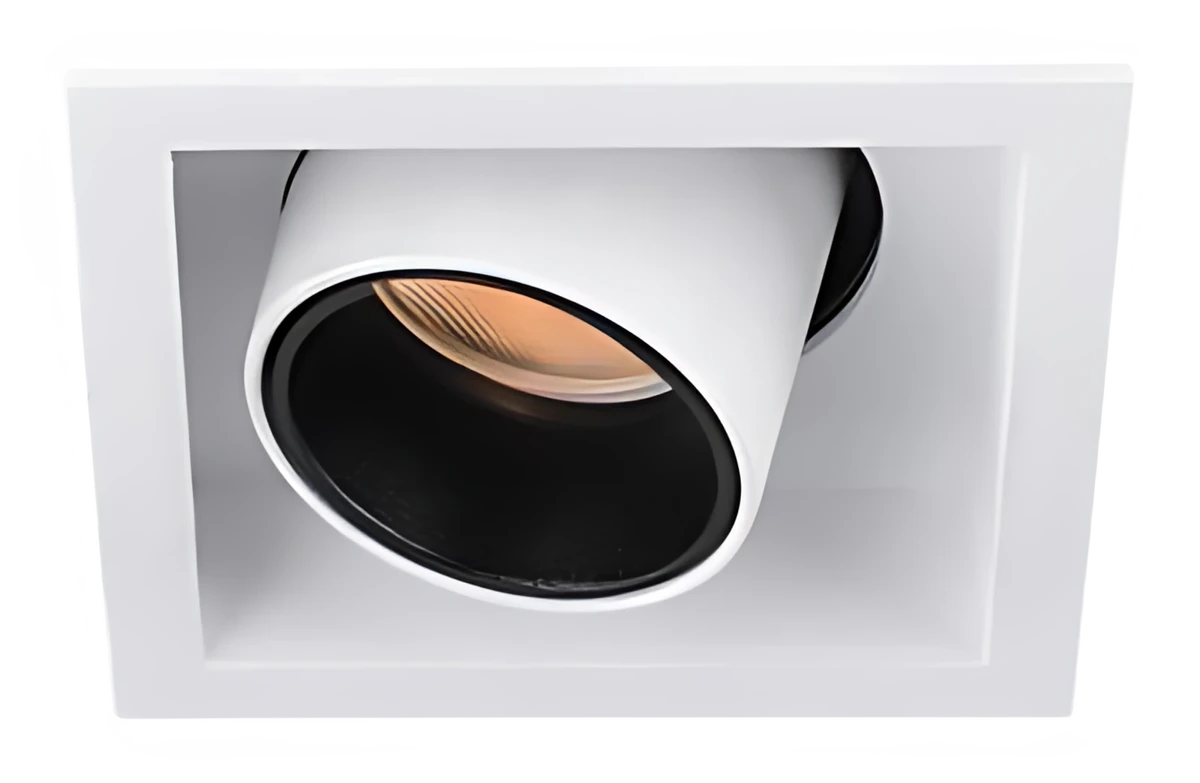

| DL1558 | 5 W | 97 CRI | max 19 V | 450 lm | 62 × 62 x H63 mm | 15° 24° 38° 60° | 2700, 3000, 4000 K | Ø58 mm | 250 mA |
| DL1549 | 7 W | 97 CRI | max 19 V | 630 lm | Ø60 x H84 mm | 15° 24° 38° 60° | 2700, 3000, 4000 K | Ø55 mm | 350 mA |
| DL1556 | 7 W | 97 CRI | max 19 V | 630 lm | Ø55 x H84 mm; plaster-in flange 112 mm | 15° 25° 38° 60° | 2700, 3000, 4000 K | Ø68 mm | 350 mA |
| DL1561 | 7 W | 97 CRI | max 19 V | 630 lm | 62 × 62 x H83 mm | 15° 24° 38° 60° | 2700, 3000, 4000 K | Ø58 mm | 350 mA |
- LED source
- Citizen
- Colour temperature
- 2700, 3000, 4000 K
- Beam angles
- 15°, 24°, 25°, 38°, 60°
- Mounting
- Recessed
- IP rating
- IP20
- Certifications
- CE
Photometry
DL1549. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: calculated from catalogue data, not measured.
- Power
- 7 W
- Luminous flux
- 630 lm
- Efficacy
- 90 lm/W
- Peak intensity
- 8,146 cd
- Field angle (10%)
- 27.3°
- At 3 m
- 905 lx, Ø0.79 m
- Power
- 7 W
- Luminous flux
- 630 lm
- Efficacy
- 90 lm/W
- Peak intensity
- 3,202 cd
- Field angle (10%)
- 43.7°
- At 3 m
- 356 lx, Ø1.28 m
- Power
- 7 W
- Luminous flux
- 630 lm
- Efficacy
- 90 lm/W
- Peak intensity
- 1,298 cd
- Field angle (10%)
- 69.3°
- At 3 m
- 144 lx, Ø2.07 m
- Power
- 7 W
- Luminous flux
- 630 lm
- Efficacy
- 90 lm/W
- Peak intensity
- 542 cd
- Field angle (10%)
- 109.4°
- At 3 m
- 60 lx, Ø3.46 m
