Technical specifications
| Code | Watt | CRI | Voltage | Flux | Size | Beam | CCT | Cut-out | Notes |
|---|---|---|---|---|---|---|---|---|---|

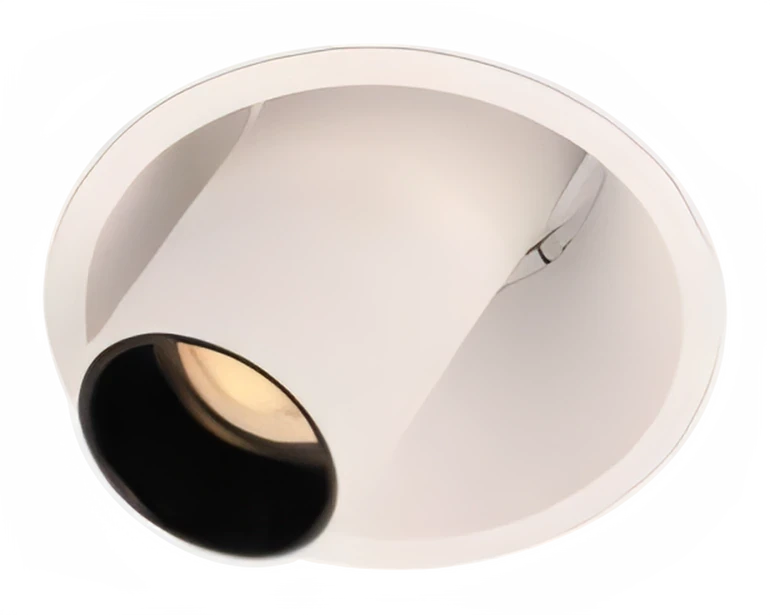

| DL1338 | 7 W | 97 CRI | max 19 V | 630 lm | Ø90 x H85 mm; head Ø40 mm | 15° 24° 36° 50° | 2700, 3000, 4000 K | Ø83 mm | 350 mA |
- LED source
- Citizen
- Colour temperature
- 2700, 3000, 4000 K
- Beam angles
- 15°, 24°, 36°, 50°
- Mounting
- Recessed
- IP rating
- IP20
- Certifications
- CE
Photometry
DL1338. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: measured with a goniophotometer where marked, otherwise calculated from catalogue data.
- Data
- Measured, 7 April 2025
- Power
- 8.9 W, 3000 K
- Luminous flux
- 703 lm
- Efficacy
- 79 lm/W
- Peak intensity
- 4,930 cd
- Beam angle (50%)
- 18.3°
- Field angle (10%)
- 35.6°
- At 3 m
- 531 lx, Ø0.97 m
- Data
- Measured, 7 April 2025
- Power
- 8.9 W, 3000 K
- Luminous flux
- 738 lm
- Efficacy
- 83 lm/W
- Peak intensity
- 3,880 cd
- Beam angle (50%)
- 23.2°
- Field angle (10%)
- 39.7°
- At 3 m
- 406 lx, Ø1.23 m
- Data
- Measured, 7 April 2025
- Power
- 8.9 W, 3000 K
- Luminous flux
- 735 lm
- Efficacy
- 83 lm/W
- Peak intensity
- 2,010 cd
- Beam angle (50%)
- 33.3°
- Field angle (10%)
- 56.4°
- At 3 m
- 218 lx, Ø1.79 m
- Power
- 7 W
- Luminous flux
- 630 lm
- Efficacy
- 90 lm/W
- Peak intensity
- 764 cd
- Field angle (10%)
- 91.1°
- At 3 m
- 85 lx, Ø2.80 m
