Technical specifications
| Code | Watt | CRI | Voltage | Flux | Size | Beam | CCT | Cut-out | Notes |
|---|---|---|---|---|---|---|---|---|---|

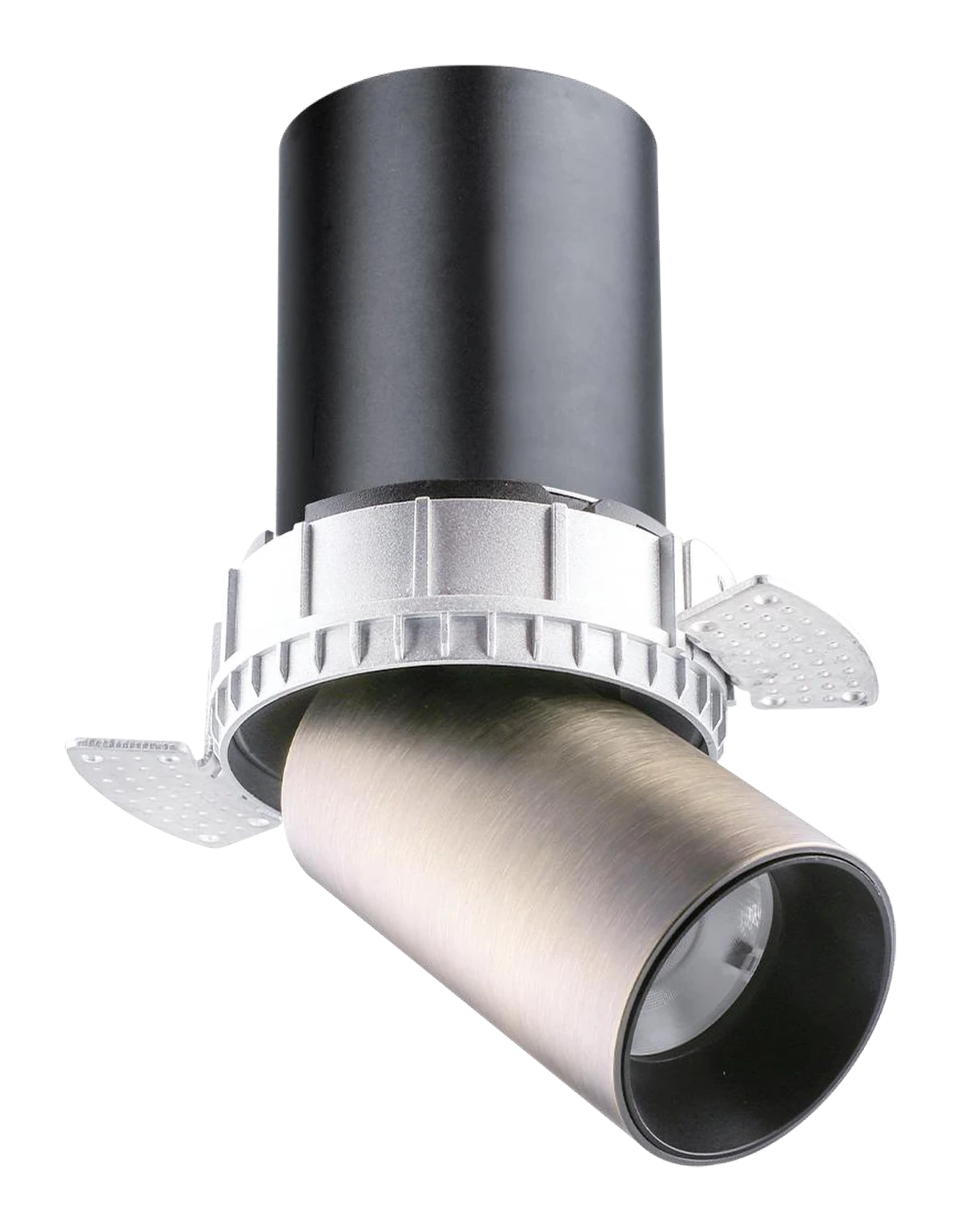

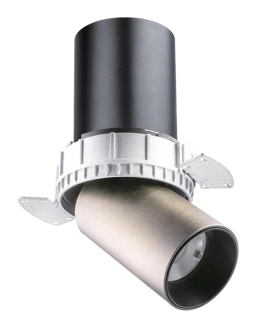

| DL1304 | 13 W | 97 CRI | max 37 V | 1180 lm | Retractable trimless: housing Ø70 x H123, stroke 0–78 mm; head Ø60 x L100 mm | 15° 24° 36° 50° | 2700, 3000, 4000 K | Ø98 mm | 350 mA |
- LED source
- Citizen
- Colour temperature
- 2700, 3000, 4000 K
- Beam angles
- 15°, 24°, 36°, 50°
- Mounting
- Recessed
- IP rating
- IP20
- Certifications
- CE
Photometry
DL1304. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: calculated from catalogue data, not measured.
- Power
- 13 W
- Luminous flux
- 1,180 lm
- Efficacy
- 91 lm/W
- Peak intensity
- 15,257 cd
- Field angle (10%)
- 27.3°
- At 3 m
- 1,695 lx, Ø0.79 m
- Power
- 13 W
- Luminous flux
- 1,180 lm
- Efficacy
- 91 lm/W
- Peak intensity
- 5,998 cd
- Field angle (10%)
- 43.7°
- At 3 m
- 666 lx, Ø1.28 m
- Power
- 13 W
- Luminous flux
- 1,180 lm
- Efficacy
- 91 lm/W
- Peak intensity
- 2,701 cd
- Field angle (10%)
- 65.6°
- At 3 m
- 300 lx, Ø1.95 m
- Power
- 13 W
- Luminous flux
- 1,180 lm
- Efficacy
- 91 lm/W
- Peak intensity
- 1,431 cd
- Field angle (10%)
- 91.1°
- At 3 m
- 159 lx, Ø2.80 m
