Technical specifications
| Code | Watt | CRI | Voltage | Flux | Size | Beam | CCT |
|---|---|---|---|---|---|---|---|

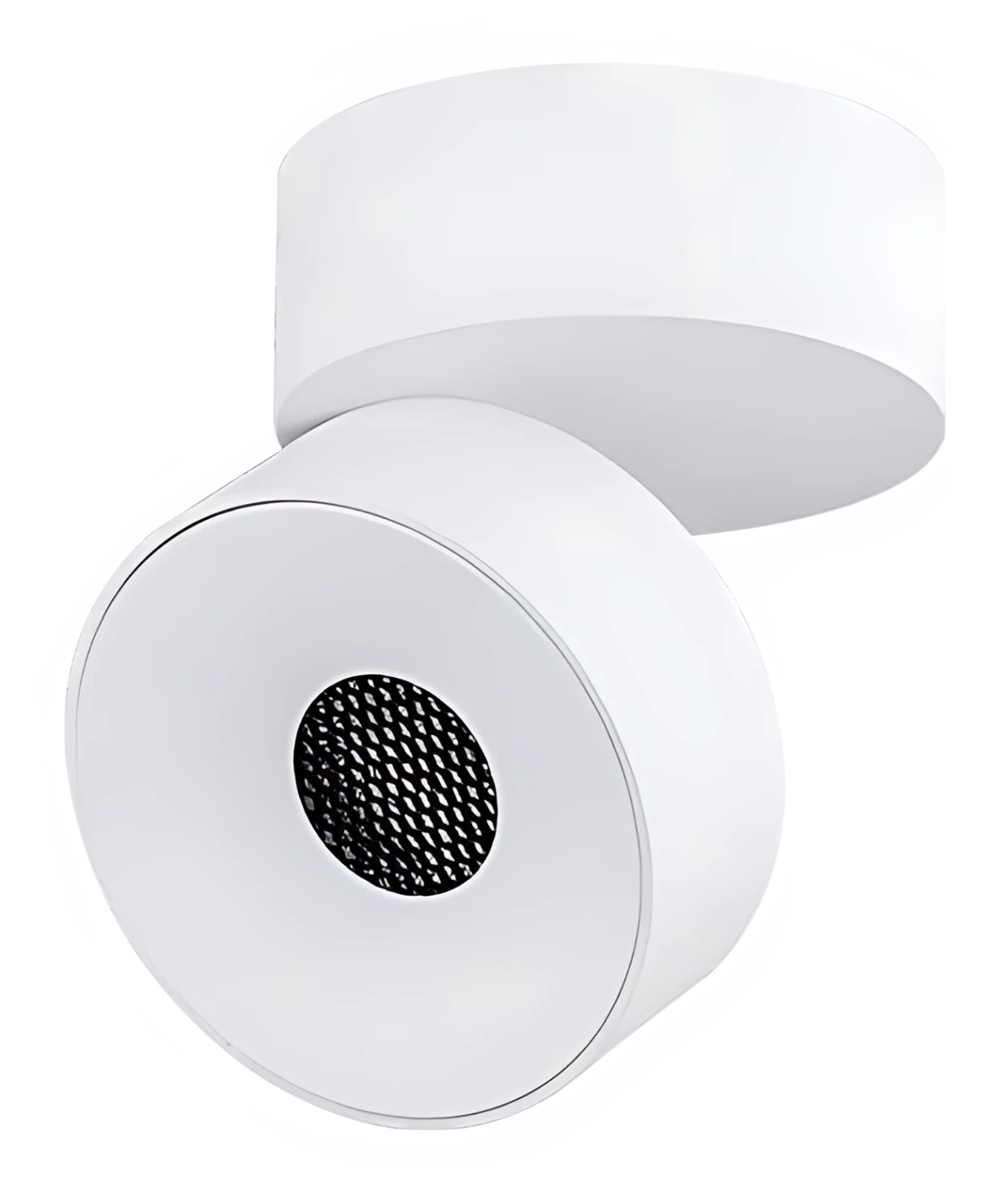

| CH0254 | 15 W | 97 CRI | 230 V AC | 1160 lm | Ø90, body H35 + head 35 mm | 15° 24° 35° 60° | 2700, 3000, 4000 K |
- LED source
- Citizen
- Colour temperature
- 2700, 3000, 4000 K
- Beam angles
- 15°, 24°, 35°, 60°
- Mounting
- Surface
- IP rating
- IP20
- Certifications
- CE
Photometry
CH0254. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: calculated from catalogue data, not measured.
- Power
- 15 W
- Luminous flux
- 1,160 lm
- Efficacy
- 77 lm/W
- Peak intensity
- 14,998 cd
- Field angle (10%)
- 27.3°
- At 3 m
- 1,666 lx, Ø0.79 m
- Power
- 15 W
- Luminous flux
- 1,160 lm
- Efficacy
- 77 lm/W
- Peak intensity
- 5,896 cd
- Field angle (10%)
- 43.7°
- At 3 m
- 655 lx, Ø1.28 m
- Power
- 15 W
- Luminous flux
- 1,160 lm
- Efficacy
- 77 lm/W
- Peak intensity
- 2,806 cd
- Field angle (10%)
- 63.8°
- At 3 m
- 312 lx, Ø1.89 m
- Power
- 15 W
- Luminous flux
- 1,160 lm
- Efficacy
- 77 lm/W
- Peak intensity
- 998 cd
- Field angle (10%)
- 109.4°
- At 3 m
- 111 lx, Ø3.46 m
