Technical specifications
| Code | Watt | CRI | Flux | Size | Beam | CCT | Cut-out |
|---|---|---|---|---|---|---|---|

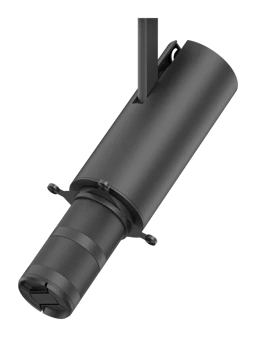

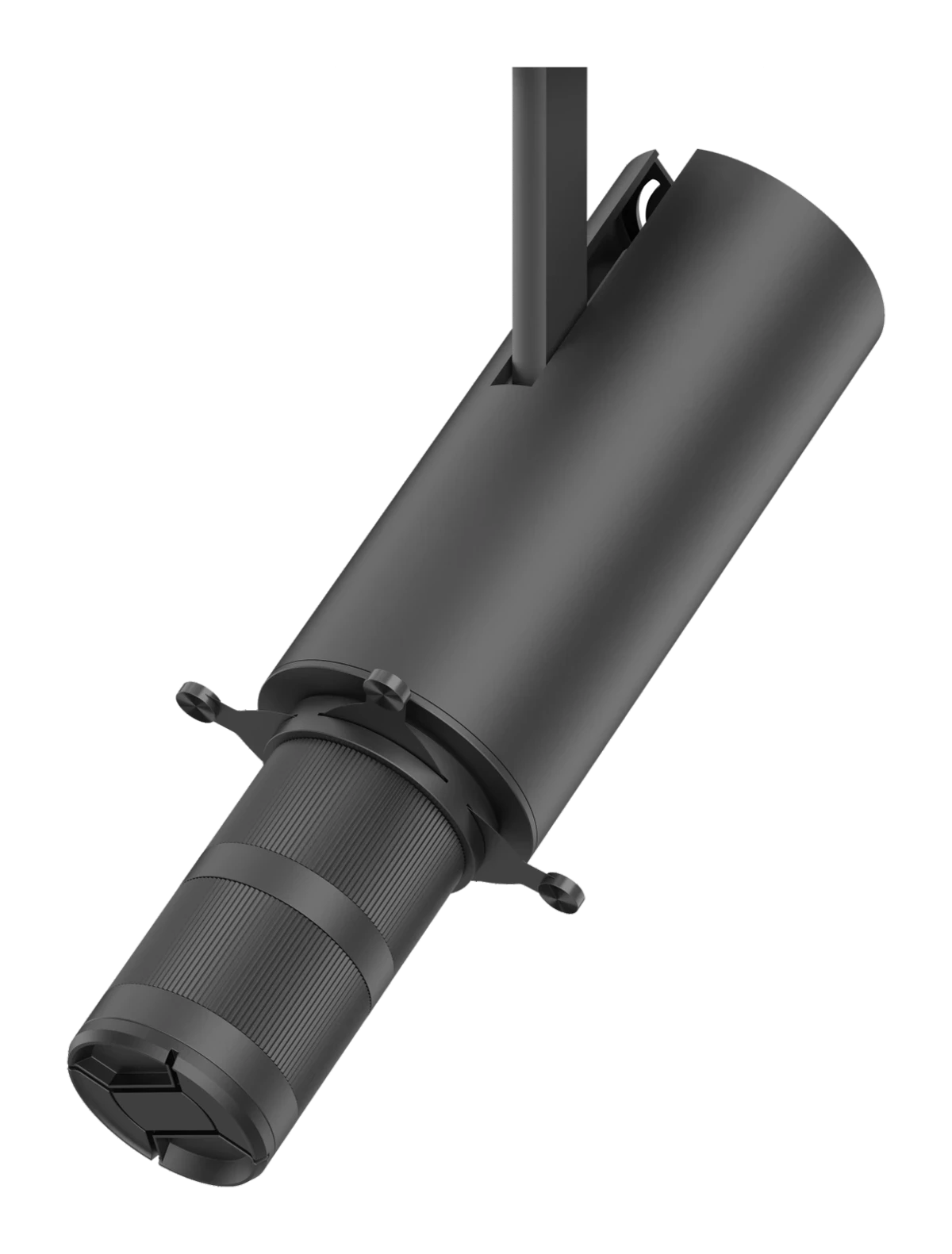

| R3-4836Recessed | 30 W | 97 CRI | 1000–1100 lm | 86 × 310 mm (60 at lens end) | 25° 40° | 3000, 4000 K | Ø70 mm |
- LED source
- Citizen
- Colour temperature
- 3000, 4000 K
- Beam angles
- 25°, 40°
- Control
- Triac, DALI, 0–10 V
- Mounting
- Magnetic track, Recessed, Surface
- IP rating
- IP20
- Certifications
- CE, RoHS, EMC, LVD
Photometry
R3-4836. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: calculated from catalogue data, not measured.
- Power
- 30 W
- Luminous flux
- 1,000 lm
- Efficacy
- 33 lm/W
- Peak intensity
- 4,689 cd
- Field angle (10%)
- 45.6°
- At 3 m
- 521 lx, Ø1.33 m
- Power
- 30 W
- Luminous flux
- 1,000 lm
- Efficacy
- 33 lm/W
- Peak intensity
- 1,864 cd
- Field angle (10%)
- 72.9°
- At 3 m
- 207 lx, Ø2.18 m
