Technical specifications
| Code | Watt | CRI | Voltage | Flux | Size | CCT | Cut-out |
|---|---|---|---|---|---|---|---|

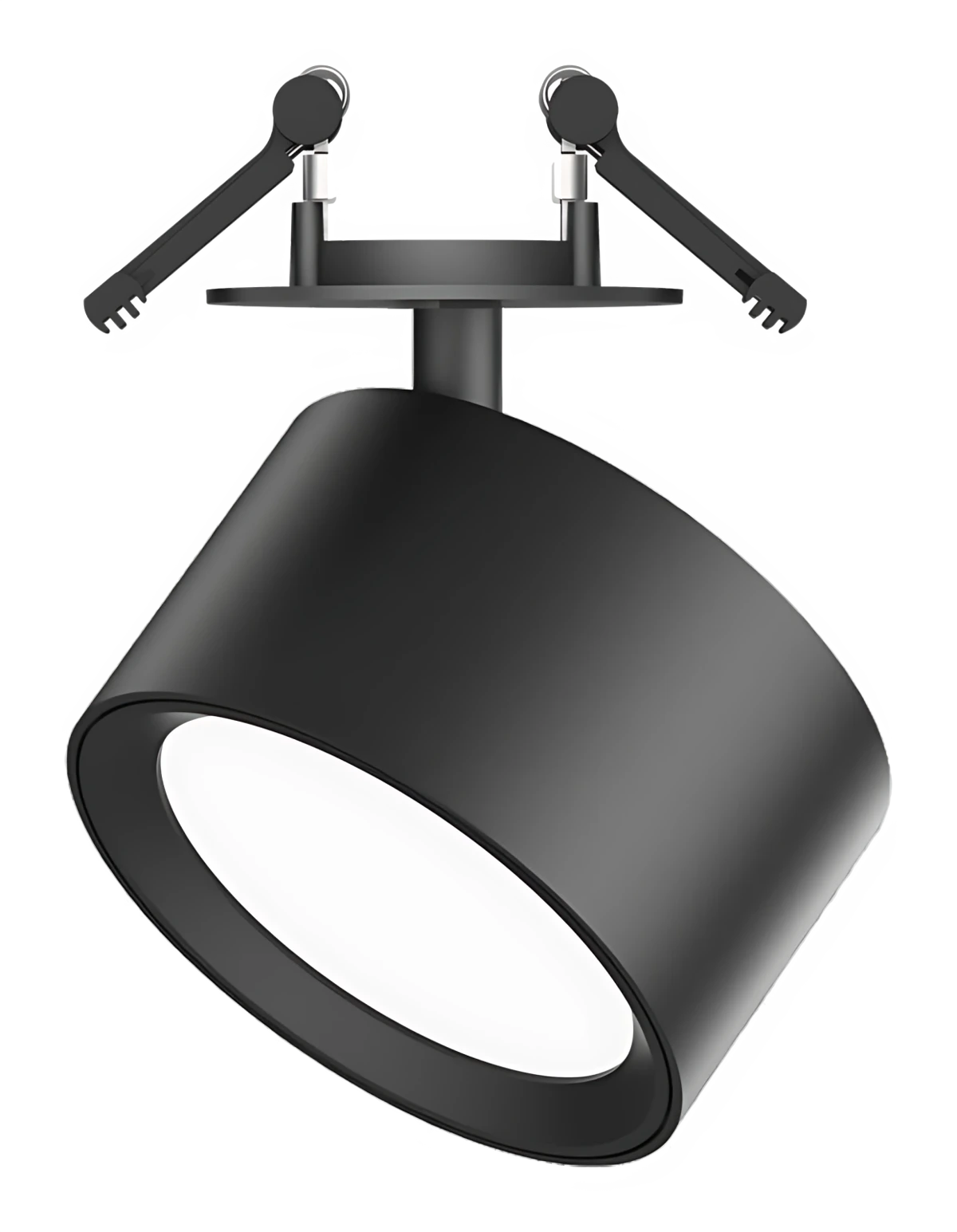

| R3-4221Floodlight | 12 W | 97 CRI | 220–240 V AC | 900 lm | Head 80 × 45 mm | 3000, 4000 K | Ø70 mm |
- LED source
- Citizen
- Colour temperature
- 3000, 4000 K
- Control
- On/Off, Triac, Casambi, DALI, 0–10 V
- Mounting
- Recessed
- IP rating
- IP20
- Certifications
- CE, RoHS, EMC, LVD
Photometry
R3-4221. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: calculated from catalogue data, not measured.
- Power
- 12 W
- Luminous flux
- 900 lm
- Efficacy
- 75 lm/W
- Peak intensity
- 286 cd
- Field angle (10%)
- 168.5°
- At 3 m
- 32 lx, Ø10.39 m
