Technical specifications
| Code | Watt | CRI | Voltage | Flux | Size | Beam | CCT | Cut-out |
|---|---|---|---|---|---|---|---|---|

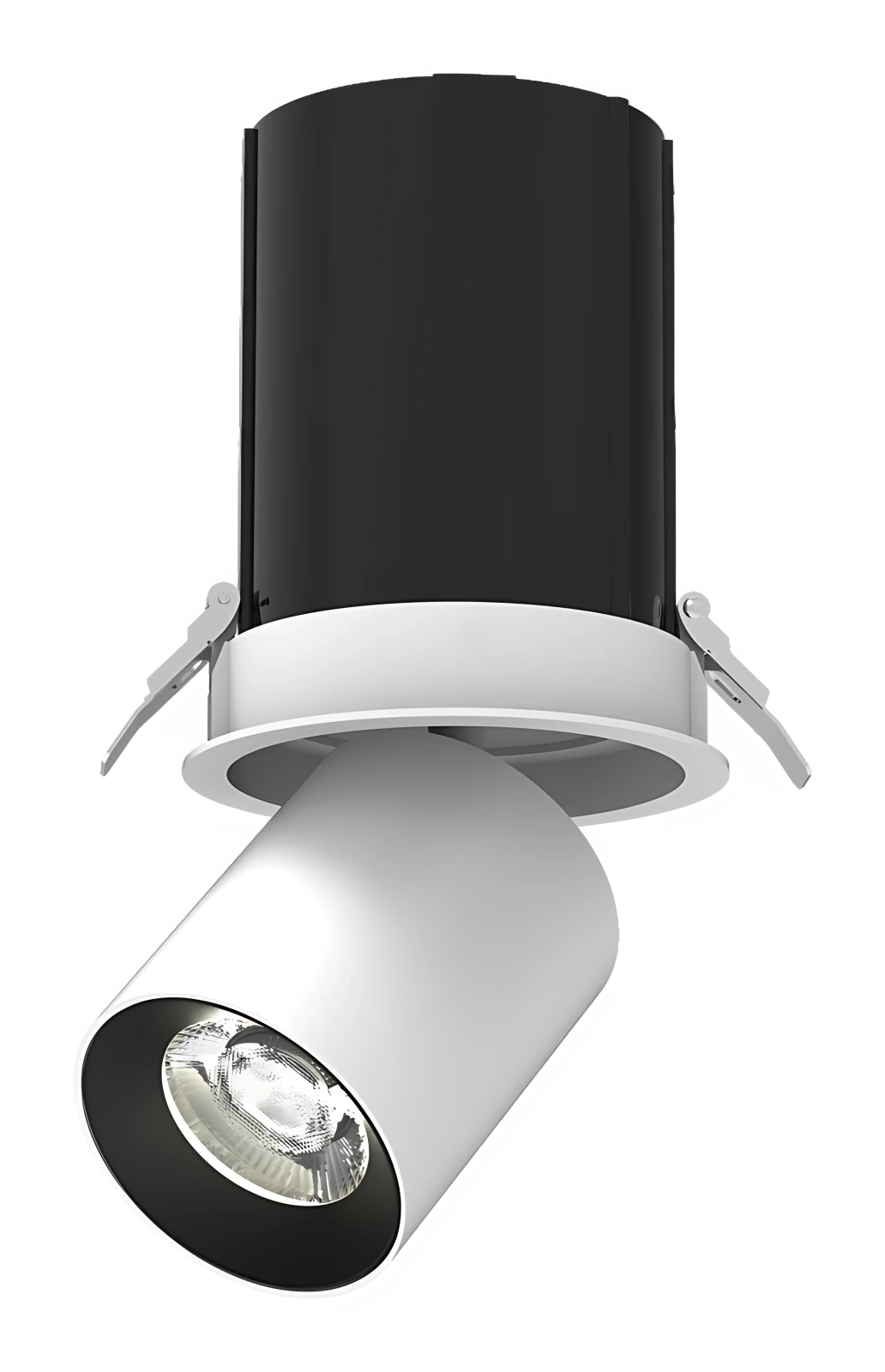

| R3-1034 | 28 W | 97 CRI | 220–240 V AC | 2800–2900 lm | Housing 165 mm high; pull-out head Ø90 × 110 mm | 15° 24° 36° | 3000, 4000 K | Ø125 mm |
- LED source
- Citizen
- Colour temperature
- 3000, 4000 K
- Beam angles
- 15°, 24°, 36°
- Control
- On/Off, Triac, Casambi, DALI, 0–10 V
- Mounting
- Recessed
- IP rating
- IP20
- Certifications
- CE, RoHS, EMC, LVD
Photometry
R3-1034. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: calculated from catalogue data, not measured.
- Power
- 28 W
- Luminous flux
- 598 lm
- Efficacy
- 21 lm/W
- Peak intensity
- 7,728 cd
- Field angle (10%)
- 27.3°
- At 3 m
- 859 lx, Ø0.79 m
- Power
- 28 W
- Luminous flux
- 1,335 lm
- Efficacy
- 48 lm/W
- Peak intensity
- 6,786 cd
- Field angle (10%)
- 43.7°
- At 3 m
- 754 lx, Ø1.28 m
- Power
- 28 W
- Luminous flux
- 1,561 lm
- Efficacy
- 56 lm/W
- Peak intensity
- 3,573 cd
- Field angle (10%)
- 65.6°
- At 3 m
- 397 lx, Ø1.95 m
